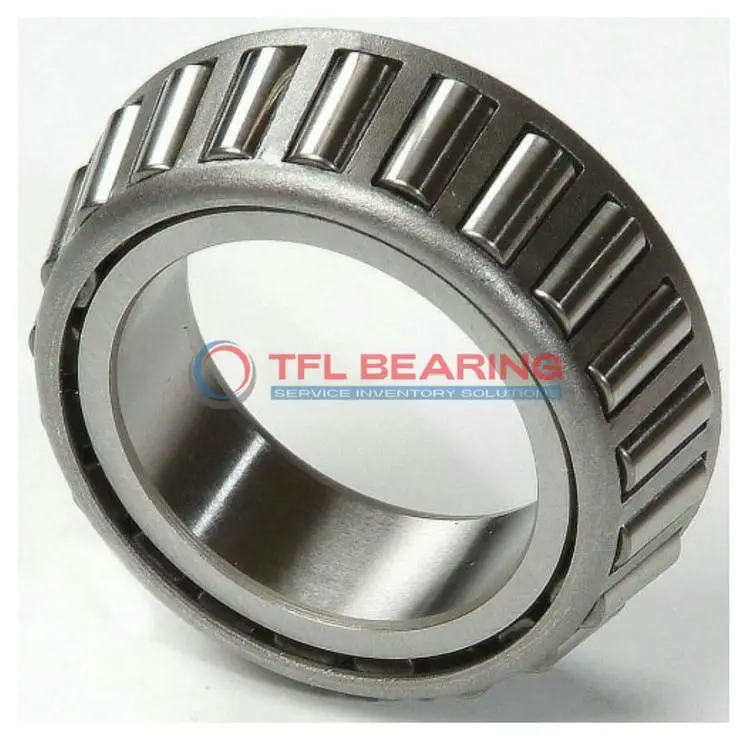

HM801346X Single Cones (Imperial)

HM801346X Single Cones (Imperial)

The HM801346X is a single-row tapered roller bearing with a 1.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 23100 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance (also available in C3/C4/C5), it suits various industrial applications. Ideal for machinery requiring robust load-bearing capacity, such as gearboxes or heavy equipment.

Weighing just 1.125 inches in width, it’s compact yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM801346X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM801346X-HM801310 , HM801346X-HM801311
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.09"
  • Cone Frontface Backing Diameter 1.93"
  • Cone Backface Backing Diameter 2.13"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.19"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23100 lbf
  • Static Radial Load 29300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5980 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 40200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5590 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HM801346X Bearing

HM801346X Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 23,100 lbf, ensuring reliable performance in tough conditions.

The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

HM801346X Bearing’s standard radial clearance makes it versatile for different applications.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of HM801346X Bearing
HM801346X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is HM801346X Bearing Used?
You’ll find HM801346X Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American and British vehicle models.

Built for Heavy-Duty Use: HM801346X Bearing
HM801346X Bearing excels in industrial gearboxes and conveyor systems, where its steel cage provides stability under high stress. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of HM801346X Bearing
In automotive settings, HM801346X Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems due to its precision and load capacity. The temperature range suits both environments well.

Essential Roles of HM801346X Bearing
HM801346X Bearing is vital in mining equipment, where its robust design withstands harsh conditions. The standard radial clearance ensures smooth operation even with heavy vibrations and misalignment.
