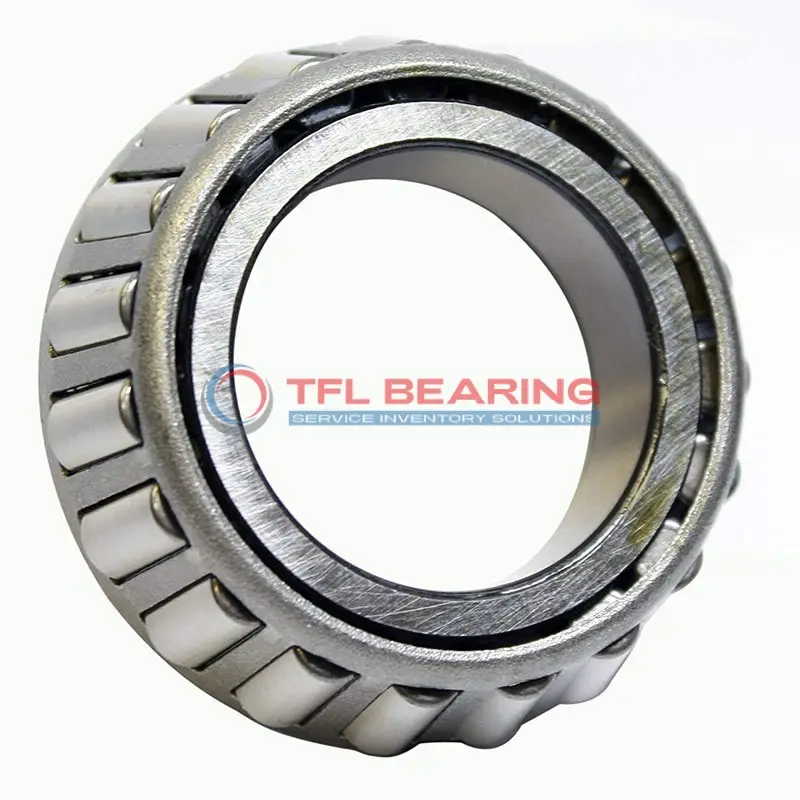

HM617045 Single Cones (Imperial)

HM617045 Single Cones (Imperial)

The HM617045 is a single-row tapered roller bearing cone with a 3.25-inch bore, made from sturdy chrome steel. It handles combined loads, with a dynamic radial load capacity of 58700 lbf and a static radial load of 89700 lbf.

Its open design allows for easy maintenance, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This cone is interchangeable with Timken bearings, making it a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

With standard radial clearance and ABEC-1 rating, it offers a balance of performance and value. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM617045
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM617045-HM617010
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HM617000
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 1.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.29"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 58700 lbf
  • Static Radial Load 89700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 15200 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 102000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11300 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 26500 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM617045 Bearing Engineered for Reliability?

HM617045 Bearing features chrome steel rings and a steel cage, ensuring durability under combined loads.
Its dynamic radial load capacity of 58,700 lbf makes it suitable for heavy-duty applications.

The tapered roller design enhances performance, distributing loads evenly for smoother operation.
With a temperature range of -30° to 110°C, HM617045 Bearing performs reliably in various conditions.

Its standard radial clearance options (C3/C4/C5) allow for flexibility in different operational setups.
The ABEC-1 rating ensures consistent precision, making it a dependable choice for industrial use.

Application

Industrial Uses of HM617045 Bearing
HM617045 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication in dusty environments.

Where Is HM617045 Bearing Used?
You’ll find HM617045 Bearing in automotive applications such as truck wheel hubs, where its chrome steel construction ensures durability. Its inch sizing makes it a fit for older or custom-built vehicles.

Built for Heavy-Duty Use: HM617045 Bearing
HM617045 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds strength, making it suitable for prolonged use in demanding conditions.

Automotive vs Aerospace: Applications of HM617045 Bearing
In automotive settings, HM617045 Bearing supports axle systems, while its precision makes it less common in aerospace. The ABEC-1 rating balances cost and performance for general industrial use.

Key Fields for HM617045 Bearing
HM617045 Bearing is ideal for agricultural machinery, where its standard radial clearance accommodates varying loads. The temperature range ensures reliability in both hot and cold operating conditions.
