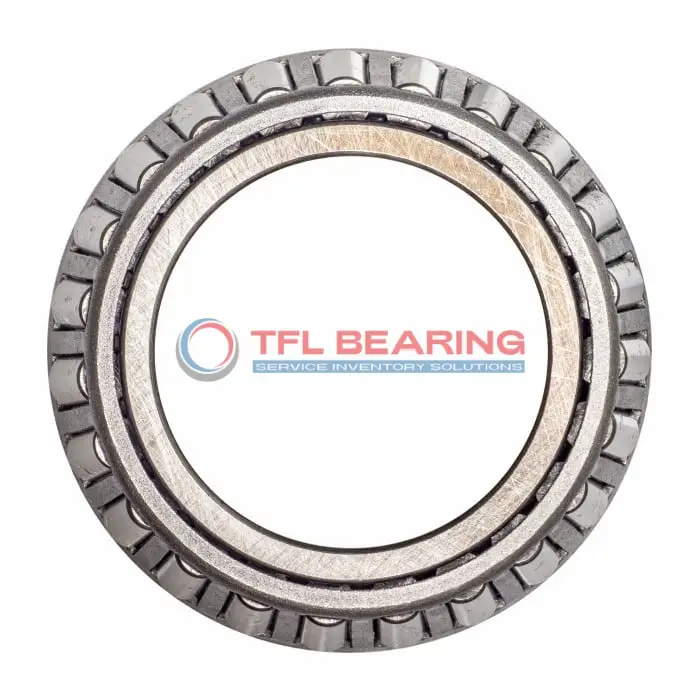

HH249949V Single Cones (Imperial)

HH249949V Single Cones (Imperial)

The HH249949V is a single-row tapered roller bearing cone with a 9.75-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 468,000 lbf and fits Timken interchangeable models.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone has a width of 4.625 inches and operates smoothly in temperatures from -30°C to 110°C.

With standard radial clearance and ABEC-1 rating, it’s a practical choice for heavy-duty applications. Ideal for industrial machinery or large equipment where robust load handling is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH249949V
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HH249949V-HH249910
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH249900
  • Bore Dia 9.75"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 4.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 10.83"
  • Cone Backface Backing Diameter 11.18"
  • Cage Cone Frontface Clearance 0.24"
  • Cage Cone Backface Clearance 0.28"
  • Effective Center Location -1.13"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 468000 lbf
  • Static Radial Load 846000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 121000 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 814000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 69000 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 211000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of HH249949V Bearing

HH249949V Bearing is crafted with chrome steel rings and a steel cage, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 468,000 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of HH249949V Bearing enhances stability and reduces friction during operation.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

HH249949V Bearing’s standard radial clearance options provide flexibility for different installation needs.
Its ABEC-1 rating ensures consistent precision and smooth operation.

Application

Industrial Uses of HH249949V Bearing
HH249949V Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is HH249949V Bearing Used?
You’ll often find HH249949V Bearing in industrial gearboxes and large conveyor systems, where its high dynamic radial load capacity keeps operations running smoothly. Its inch sizing makes it a popular choice for machinery in regions using imperial measurements.

Built for Heavy-Duty Use: HH249949V Bearing
HH249949V Bearing excels in applications like agricultural machinery and forestry equipment, where its robust design withstands harsh conditions. The open seal type allows for easy inspection and maintenance, reducing downtime.

Automotive vs Aerospace: Applications of HH249949V Bearing
In automotive applications, HH249949V Bearing supports heavy axles and drivetrains, while in aerospace, it’s used in landing gear systems. Its high static radial load rating ensures reliability in both sectors.

Key Fields for HH249949V Bearing
HH249949V Bearing is ideal for wind turbine systems, where its tapered rollers manage varying loads effectively. The steel cage adds stability, making it a dependable choice for renewable energy applications.
