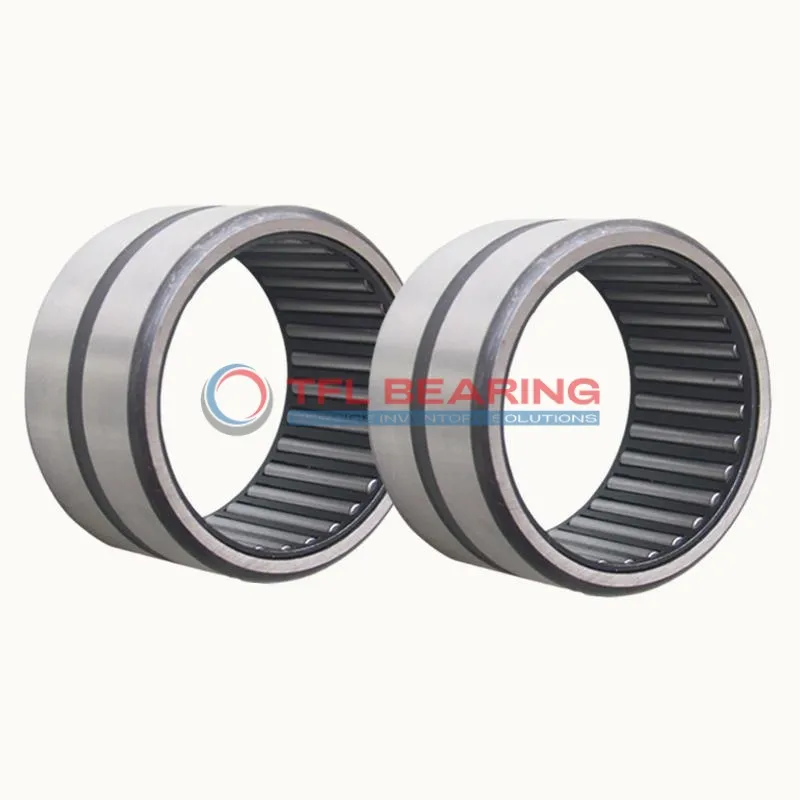

Heavy Duty Needle Roller Bearings (Machined) NCS3624

Heavy Duty Needle Roller Bearings (Machined) NCS3624

The NCS3624 is a heavy-duty needle roller bearing with a 2.25-inch bore and 3-inch outer diameter, crafted from sturdy steel for long-lasting performance. It handles radial loads up to 20475 lbf and operates smoothly at speeds up to 7500 RPM.
Its open design requires regular lubrication, while the press-fit shaft mount ensures a secure installation. The bearing works well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive applications where radial loads are common.
Weighing 422g, it’s robust yet manageable for its size. Compliant with RoHS standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS3624
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 2.25"
  • Bore Dia Tolerance 0.028mm to 0.053mm
  • Outer Dia 3"
  • Outer Dia Tolerance -0.015mm to 0
  • Width 1.5"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 20475 lbf
  • Static Radial Load 37800 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7500 rpm
  • Weight 422 g

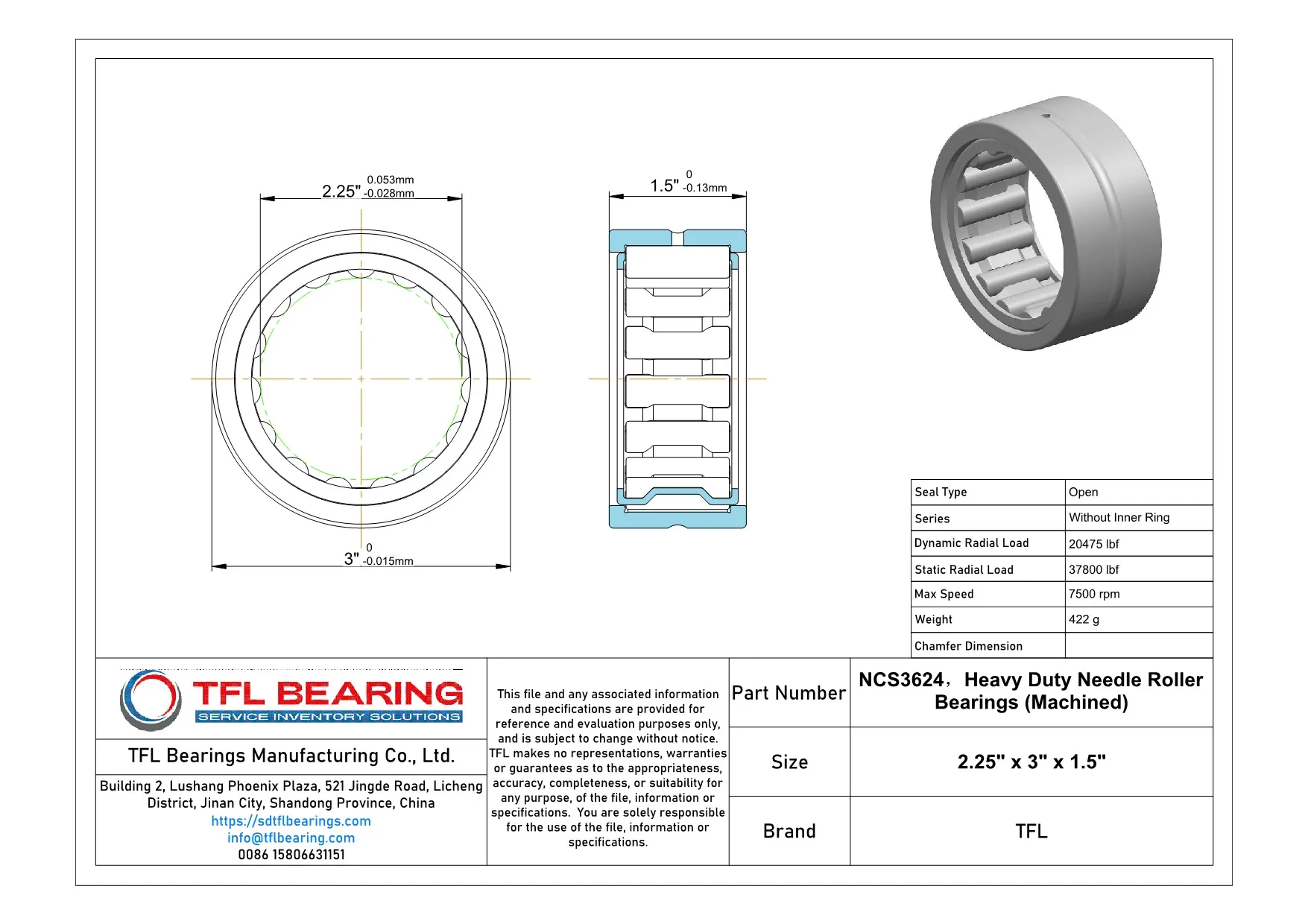

Heavy Duty Needle Roller Bearings (Machined) NCS3624 dimension drawing
Download DWG Download PDF

Features

How Does NCS3624 Bearing Handle Heavy Radial Loads?
NCS3624 Bearing is built with a robust steel construction, making it ideal for heavy-duty radial load applications.
Its dynamic radial load capacity of 20,475 lbf ensures reliable performance under demanding conditions.
The press-fit shaft mount design simplifies installation, while the open seal type allows for easy lubrication.
With a maximum speed of 7,500 rpm, it offers both durability and efficiency in various industrial settings.

Application

Key Fields for NCS3624 Bearing
NCS3624 Bearing is widely used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The open design and steel construction make it durable in tough working conditions.
How Does NCS3624 Bearing Improve Performance?
In automotive applications, NCS3624 Bearing enhances performance in gearboxes and drivetrains, thanks to its ability to handle high speeds and radial loads. The press-fit mounting ensures a secure and stable connection.
Built for Heavy-Duty Use: NCS3624 Bearing
For industrial automation, NCS3624 Bearing is a reliable choice for robotic arms and conveyor systems, where precision and durability are key. Its inch sizing makes it compatible with a variety of machinery standards.
Automotive vs Industrial: Applications of NCS3624 Bearing
In automotive settings, NCS3624 Bearing supports high-speed operations in transmissions, while in industrial environments, it excels in heavy-load scenarios like presses and rollers. Its steel rollers provide long-lasting performance.
Where Is NCS3624 Bearing Used?
You’ll find NCS3624 Bearing in medical devices like imaging equipment, where its smooth operation and reliability are crucial. The steel cage ensures minimal wear even with frequent use.
