Heavy Duty Needle Roller Bearings (Machined) NCS1412

Heavy Duty Needle Roller Bearings (Machined) NCS1412

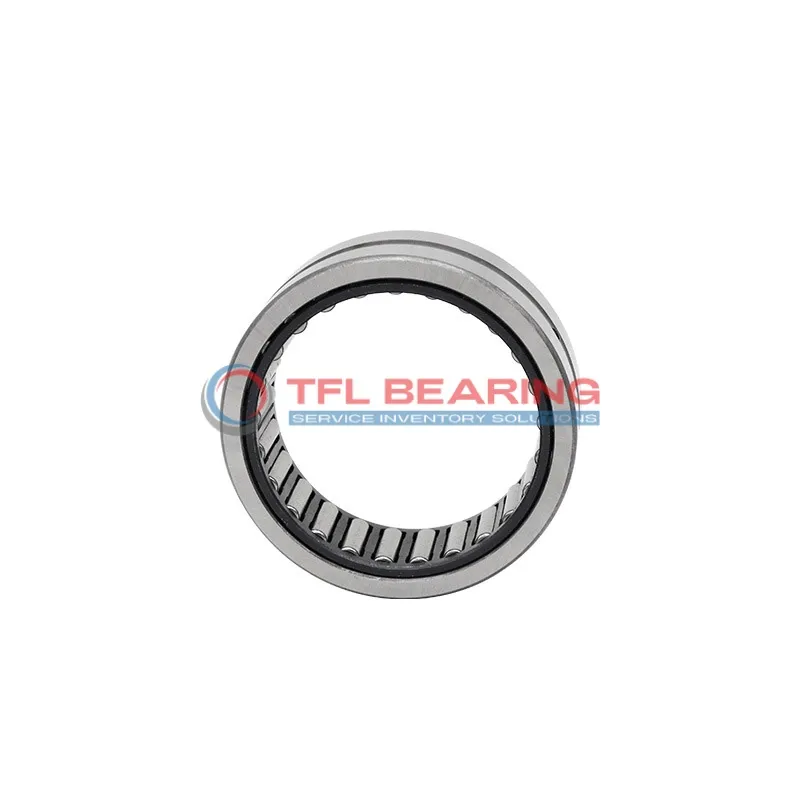

The NCS1412 is a heavy-duty needle roller bearing with a 0.875″ bore and 1.375″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 5130 lbf and can reach speeds of 19000 RPM, making it suitable for high-speed applications.
Its open design requires lubrication but allows for easy maintenance, while the steel cage ensures durability. The bearing is designed for press-fit mounting, simplifying installation.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for use in machinery where space is limited but high load capacity is needed, such as automotive transmissions or industrial equipment.
Weighing just 59g, it’s lightweight yet robust. Compliant with RoHS standards, it operates efficiently in temperatures from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS1412
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 0.875"
  • Bore Dia Tolerance 0.023mm to 0.046mm
  • Outer Dia 1.375"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 0.75"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 5130 lbf
  • Static Radial Load 6188 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19000 rpm
  • Weight 59 g

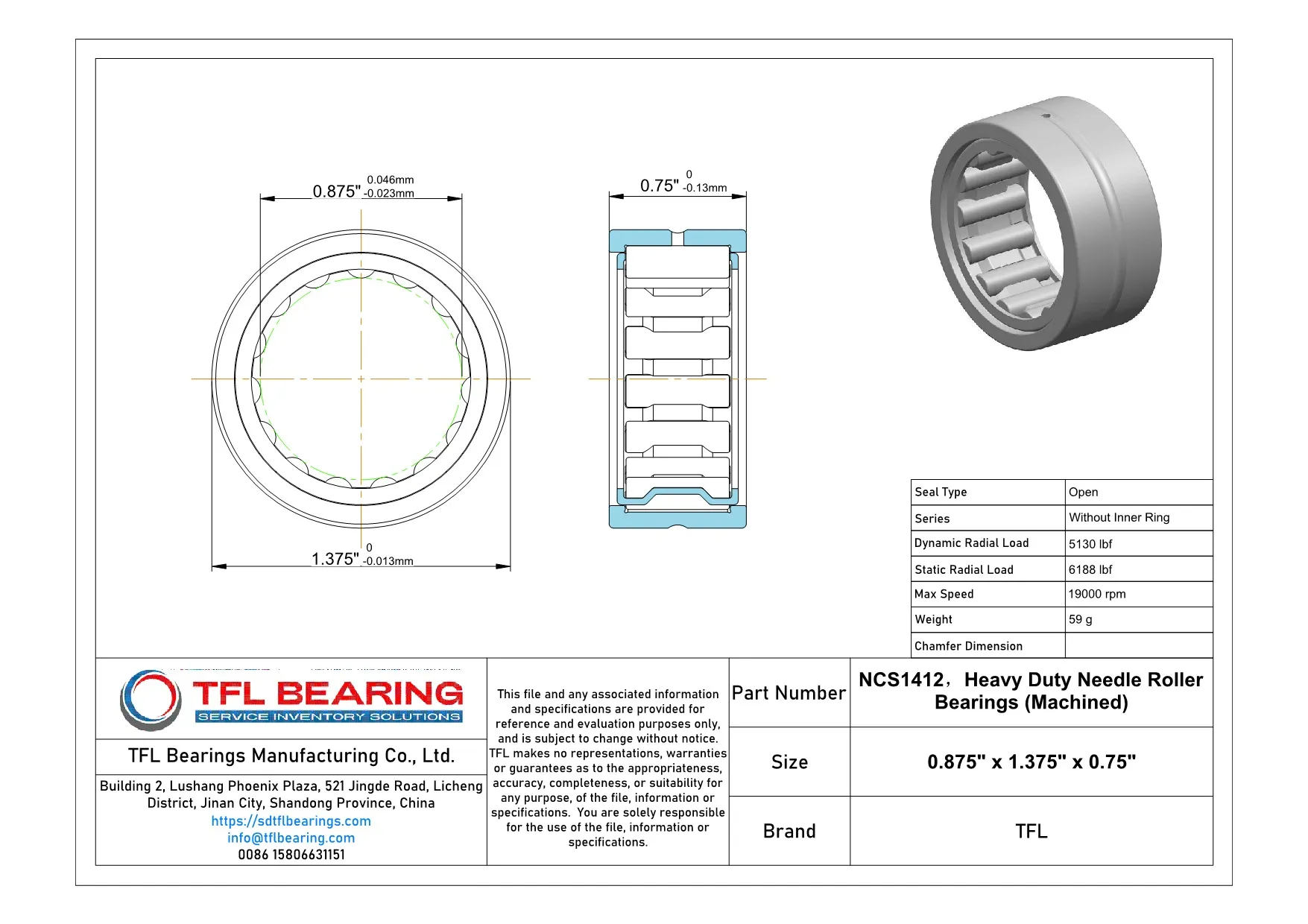

Heavy Duty Needle Roller Bearings (Machined) NCS1412 dimension drawing
Download DWG Download PDF

Features

How Does NCS1412 Bearing Handle Heavy Radial Loads?
NCS1412 Bearing is built with solid steel construction, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 5130 lbf, making it suitable for demanding industrial applications.
The press-fit shaft mount design ensures secure installation, reducing the risk of slippage during operation.
With a maximum speed of 19,000 rpm, NCS1412 Bearing delivers reliable performance in high-speed environments.
The open design allows for easy lubrication, helping to maintain smooth operation over time.
Its temperature range of -20 to 110 °C ensures consistent performance in various working conditions.

Application

Industrial Uses of NCS1412 Bearing
NCS1412 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The open design and steel construction make it durable in tough working conditions.
What Makes NCS1412 Bearing a Preferred Choice?
In automotive applications, NCS1412 Bearing fits well in gearboxes and transmission systems, providing reliable performance under high speeds. Its press-fit mounting ensures a secure and stable connection.
Built for Heavy-Duty Use: NCS1412 Bearing
For automation systems, NCS1412 Bearing supports robotic arms and conveyor belts, handling continuous radial loads with ease. The steel rollers and cage offer long-lasting wear resistance.
Medical vs Industrial: Where NCS1412 Bearing Excels
While not typically used in medical devices, NCS1412 Bearing shines in industrial settings like printing presses and packaging machines. Its inch sizing makes it compatible with many North American equipment standards.
