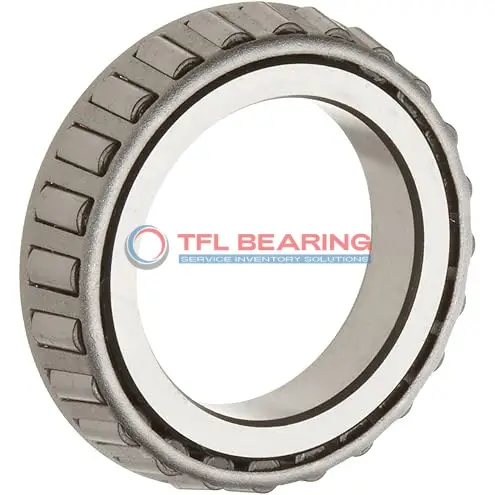

H238140 Single Cones (Imperial)

H238140 Single Cones (Imperial)

The H238140 is a single-row tapered roller bearing cone with a 6.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 238,000 lbf and static loads up to 378,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This cone is part of the H238100 series and is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles.

Compliant with RoHS and REACH standards, it offers a standard radial clearance but is also available in C3, C4, or C5 options for specific needs. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H238140
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number H238140-H238110
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series H238100
  • Bore Dia 6.5"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 3.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 7.4"
  • Cone Backface Backing Diameter 7.8"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.3"
  • Effective Center Location -0.73"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 238000 lbf
  • Static Radial Load 378000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 61600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 414000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 34900 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 107000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of H238140 Bearing

H238140 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 238,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

H238140 Bearing’s steel cage maintains roller alignment, reducing wear and extending lifespan.
Its standard radial clearance options provide flexibility for different operational needs.

The open seal design allows for easy inspection and maintenance.
Compliant with RoHS and REACH standards, it meets international environmental requirements.

Application

Industrial Uses of H238140 Bearing
H238140 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes H238140 Bearing a Preferred Choice?
In automotive applications, H238140 Bearing supports large axles and wheel hubs, providing reliable performance under high radial and thrust loads. Its inch sizing makes it a versatile option for North American and UK machinery standards.

Built for Heavy-Duty Use: H238140 Bearing
For industrial conveyor systems, H238140 Bearing’s chrome steel construction ensures durability and resistance to wear. The steel cage adds stability, making it suitable for continuous operation in harsh environments.

Automotive vs Aerospace: Applications of H238140 Bearing
In automotive settings, H238140 Bearing is ideal for truck wheel assemblies, while in aerospace, it supports ground handling equipment. Its ABEC-1 rating balances precision and cost-effectiveness for these varied uses.

Where Is H238140 Bearing Used?
You’ll often find H238140 Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth performance even with varying operational temperatures.
