Four-Row Cylindrical Roller Bearings BC4-0109

Four-Row Cylindrical Roller Bearings BC4-0109

The BC4-0109 is a four-row cylindrical roller bearing with a 190mm bore and 270mm outer diameter, designed for heavy-duty applications. Its 200mm width provides stability under combined loads, handling up to 405,000 lbf dynamically.

Made from high-quality materials, it supports both grease and oil lubrication, ensuring smooth operation in temperatures from -30°C to 110°C. The chamfered edges (2.1mm) on both inner and outer rings make installation easier.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for industrial machinery like rolling mills or large gearboxes where high radial loads are common.

Compliant with RoHS and REACH standards, it’s built for durability and long service life in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BC4-0109
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 190 mm
  • Outer Dia 270 mm
  • Width 200mm
  • Corner Radius/Chamfer Inner Ring(r1,2)(min.) 2.1 mm
  • Chamfer Dimension On The Outer Ring(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 405000 lbf
  • Static Radial Load 708750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

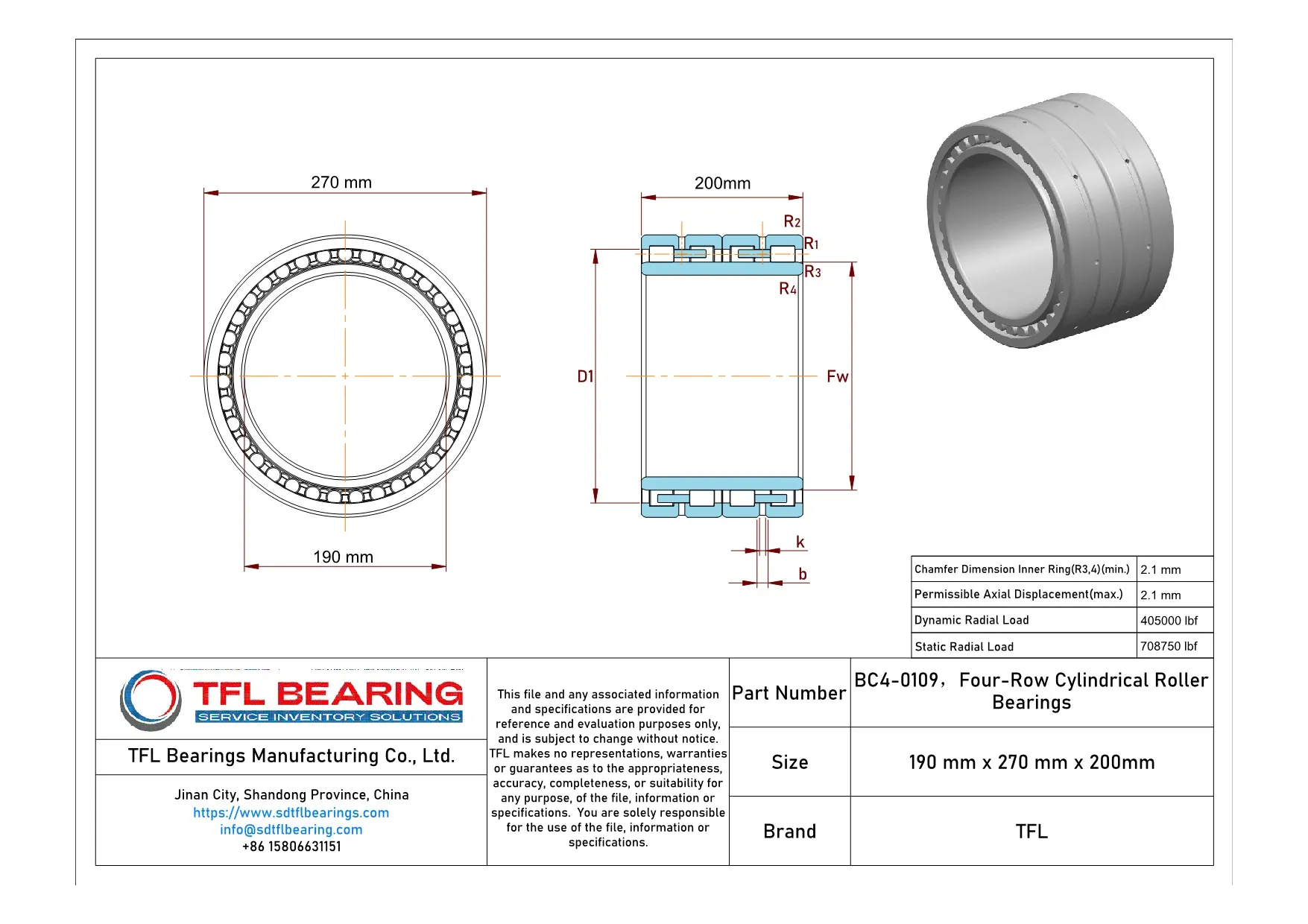

Four-Row Cylindrical Roller Bearings BC4-0109 dimension drawing
Download DWG Download PDF

Features

Performance Features of BC4-0109 Bearing

BC4-0109 Bearing is built for combined load applications, handling dynamic radial loads up to 405,000 lbf.
Its four-row cylindrical roller design ensures stability and even load distribution across all rows.
The bearing operates efficiently in temperatures ranging from -30° to 110°C, suitable for various industrial environments.
With interchangeable compatibility to SKF, BC4-0109 Bearing offers flexibility in maintenance and replacement.

Application

Industrial Uses of BC4-0109 Bearing
BC4-0109 Bearing is commonly used in heavy industrial machinery, such as rolling mills and large gearboxes, where its four-row design handles high radial and axial loads. The grease or oil lubrication options make it adaptable to various operating conditions.

Where Is BC4-0109 Bearing Used?
In steel production, BC4-0109 Bearing supports rolling mill stands, ensuring smooth operation under extreme loads. Its metric sizing and interchangeable design with SKF bearings simplify maintenance and replacements.

Built for Heavy-Duty Use: BC4-0109 Bearing
BC4-0109 Bearing excels in mining equipment, where its robust construction withstands harsh environments. The combined load capacity makes it suitable for crushers and conveyors, reducing downtime.

Automotive vs Aerospace: Applications of BC4-0109 Bearing
In automotive manufacturing, BC4-0109 Bearing is found in large presses and stamping machines. For aerospace, its precision and durability are valued in ground support equipment.

Essential Roles of BC4-0109 Bearing
BC4-0109 Bearing plays a key role in wind turbines, where its high load capacity ensures reliable performance. The temperature range allows it to function efficiently in varying climates.
