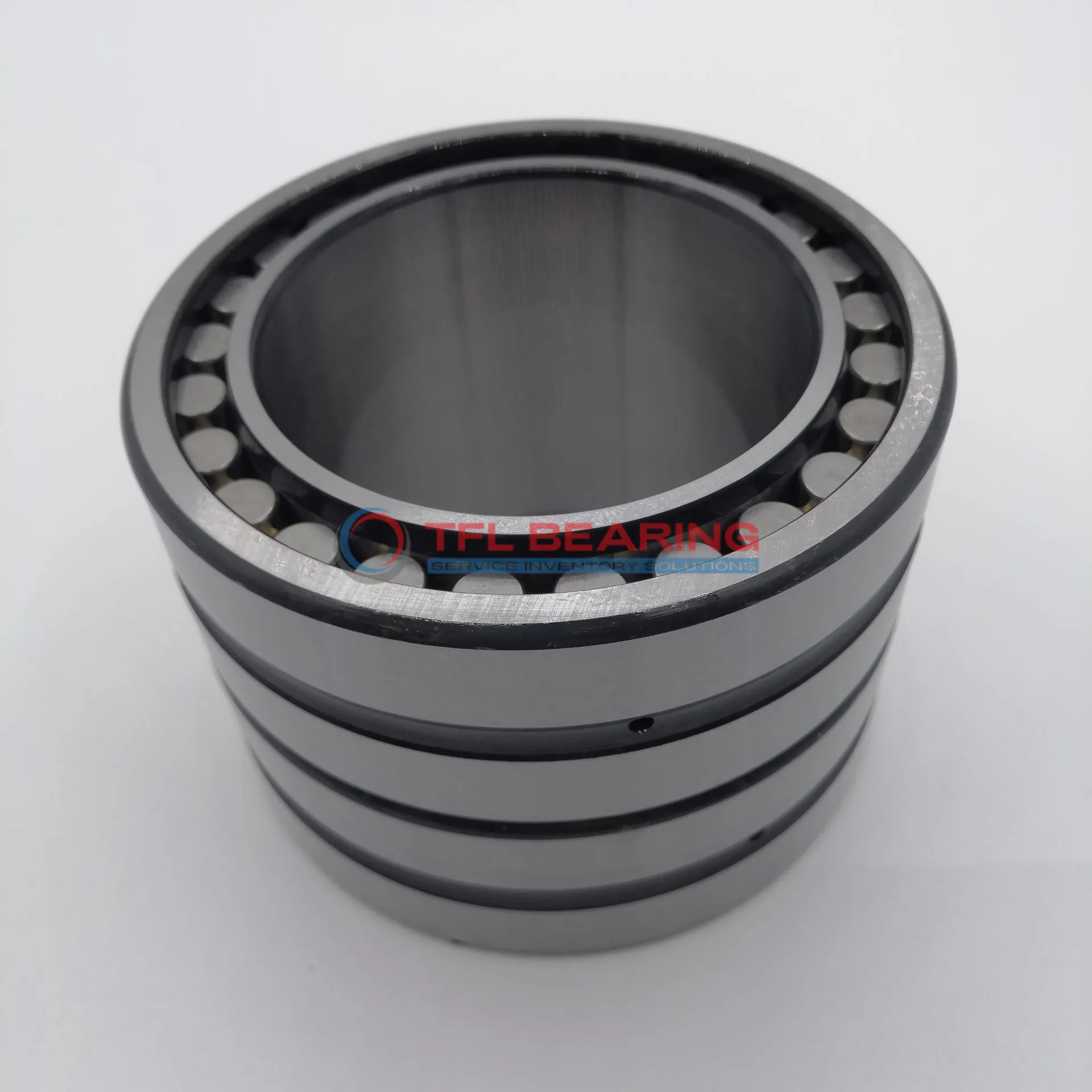

Four-Row Cylindrical Roller Bearings BC4-0095

Four-Row Cylindrical Roller Bearings BC4-0095

The BC4-0095 is a four-row cylindrical roller bearing with a 200mm bore and 280mm outer diameter, designed for heavy-duty applications. It handles combined loads up to 382500 lbf and works well in temperatures from -30°C to 110°C.

Its robust construction includes a chamfered inner and outer ring, making installation easier. The bearing can be lubricated with grease or oil, offering flexibility in maintenance.

This model is interchangeable with SKF bearings, ensuring easy replacements. Ideal for industrial machinery like rolling mills or large gearboxes where high radial loads are common.

Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments. The compact design, at 170mm wide, balances strength and space efficiency.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BC4-0095
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 200 mm
  • Outer Dia 280 mm
  • Width 170mm
  • Corner Radius/Chamfer Inner Ring(r1,2)(min.) 2.1 mm
  • Chamfer Dimension On The Outer Ring(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 382500 lbf
  • Static Radial Load 675000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

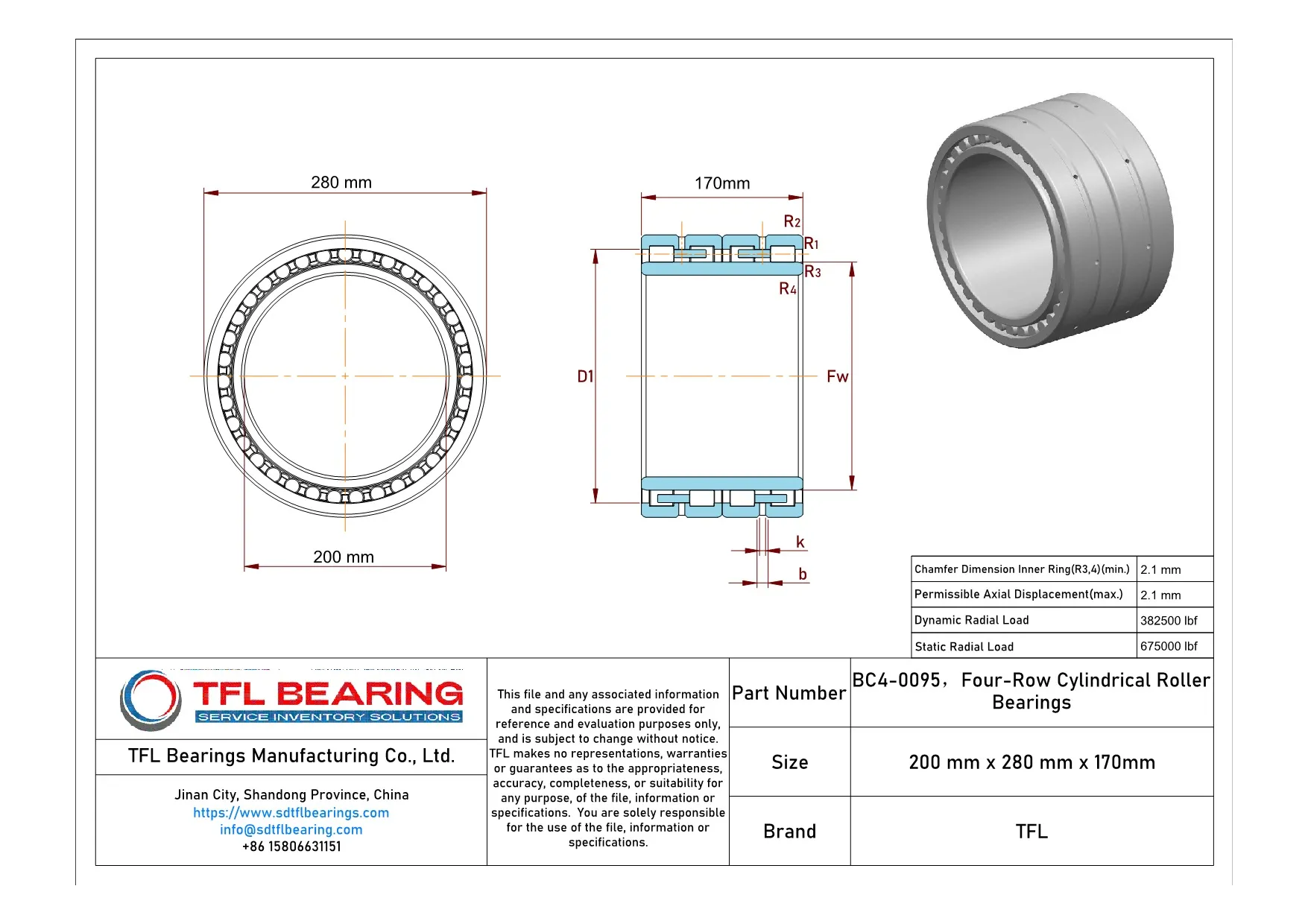

Four-Row Cylindrical Roller Bearings BC4-0095 dimension drawing
Download DWG Download PDF

Features

Performance Features of BC4-0095 Bearing

BC4-0095 Bearing is designed for combined load applications, with a dynamic radial load capacity of 382500 lbf.
Its four-row cylindrical roller construction ensures stability and durability under heavy loads.

The bearing operates efficiently within a temperature range of -30° to 110°C, suitable for various industrial environments.
With interchangeable compatibility with SKF, BC4-0095 Bearing offers flexibility in replacement and maintenance.

Its grease or oil lubrication options provide versatility for different operational needs.
The chamfer dimensions and corner radius are optimised for smooth installation and reduced stress concentrations.

Application

Industrial Uses of BC4-0095 Bearing
BC4-0095 Bearing is commonly used in heavy industrial machinery, such as rolling mills and large gearboxes, where its four-row design handles high radial and axial loads. The grease or oil lubrication options make it adaptable to various operating conditions.

In automotive manufacturing, BC4-0095 Bearing supports large components like presses and stamping machines, ensuring reliable performance under intense workloads. Its metric sizing ensures compatibility with standard industrial equipment.

For automation systems, BC4-0095 Bearing’s robust construction makes it suitable for robotic arms and assembly lines, where precision and durability are key. The wide temperature range allows it to perform consistently in different environments.

What Makes BC4-0095 Bearing a Preferred Choice?
BC4-0095 Bearing excels in applications like wind turbines, where its high dynamic load capacity ensures long-term reliability. The combined load capability makes it versatile for both radial and thrust requirements.

In construction equipment, BC4-0095 Bearing is often found in cranes and excavators, handling heavy loads with ease. The chamfered edges reduce stress concentrations, extending the bearing’s service life.

For marine applications, BC4-0095 Bearing’s corrosion-resistant materials and lubrication options make it ideal for ship propulsion systems. Its durability withstands the harsh conditions of saltwater environments.
