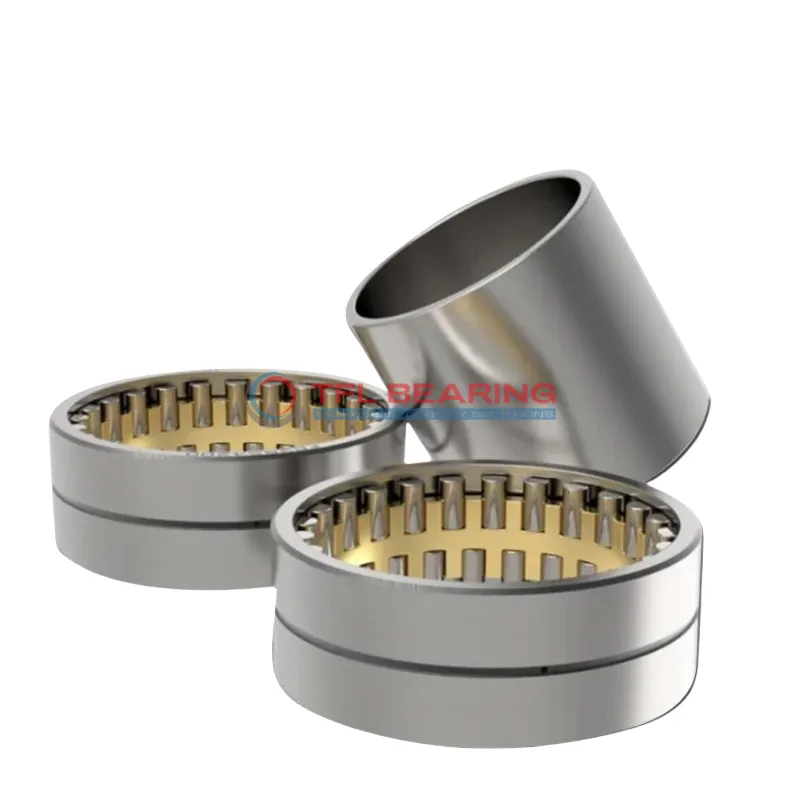

Four-Row Cylindrical Roller Bearings 313535 D

Four-Row Cylindrical Roller Bearings 313535 D

The 313535 D is a large four-row cylindrical roller bearing, measuring 536.176mm in bore diameter and 762.03mm in outer diameter, with a width of 558.8mm. Built for heavy-duty applications, it handles combined loads with ease.

Its robust design supports dynamic radial loads up to 2,565,000 lbf and static radial loads up to 6,525,000 lbf. The bearing operates smoothly with grease or oil lubrication, even in temperatures from -30°C to 110°C.

The four-row cylindrical rollers provide excellent load distribution, making it suitable for high-stress environments. Its chamfered edges (16mm inner ring, 4mm outer ring) ensure easy installation and alignment.

Ideal for industrial machinery like rolling mills or large gearboxes, this bearing is interchangeable with SKF models. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 313535 D
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 536.176 mm
  • Outer Dia 762.03 mm
  • Width 558.8mm
  • Corner Radius/Chamfer Inner Ring(r1,2)(min.) 16 mm
  • Chamfer Dimension On The Outer Ring(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 2565000 lbf
  • Static Radial Load 6525000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
Four-Row Cylindrical Roller Bearings 313535 D dimension drawing
Download DWG Download PDF

Features

Performance Features of 313535 D Bearing

313535 D Bearing is built for combined load applications, with a dynamic radial load capacity of 2,565,000 lbf.
Its four-row cylindrical roller design ensures stability and durability under heavy loads.

The large bore diameter of 536.176 mm and outer diameter of 762.03 mm make it suitable for industrial machinery.
With a width of 558.8 mm, it provides ample support for high-stress operations.

313535 D Bearing operates efficiently in temperatures ranging from -30° to 110 °C.
It supports both grease and oil lubrication, offering flexibility in maintenance.

The chamfer dimensions on the inner and outer rings enhance installation ease.
Its robust construction ensures long service life in demanding environments.

Application

Industrial Uses of 313535 D Bearing
313535 D Bearing is commonly used in heavy industrial machinery, such as rolling mills and large gearboxes, where its four-row design handles high radial and axial loads. The large bore size makes it suitable for heavy-duty applications requiring robust performance.

Where Is 313535 D Bearing Used?
You’ll find 313535 D Bearing in wind turbines and mining equipment, where its cylindrical rollers provide stability under extreme conditions. The grease or oil lubrication options ensure smooth operation even in harsh environments.

Built for Heavy-Duty Use: 313535 D Bearing
313535 D Bearing excels in steel production plants, supporting rollers that endure constant stress. Its combined load capacity and metric sizing make it a reliable choice for large-scale industrial setups.

Automotive vs Aerospace: Applications of 313535 D Bearing
In automotive testing rigs, 313535 D Bearing handles high loads during durability tests, while its precision suits aerospace component manufacturing. The temperature range ensures performance in varied conditions.

Key Fields for 313535 D Bearing
313535 D Bearing is ideal for paper mills and cement plants, where its durability and load capacity are critical. The stainless steel construction resists wear, extending service life in demanding environments.
