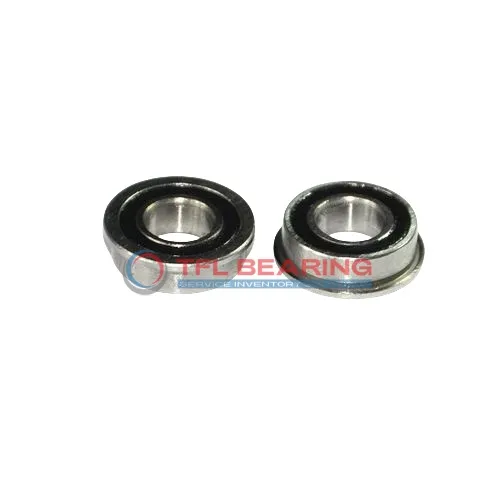

Flanged Deep Groove Ball Bearings W 628/9 R-2RS1

Flanged Deep Groove Ball Bearings W 628/9 R-2RS1

The W 628/9 R-2RS1 is a compact flanged deep groove ball bearing, measuring 9mm by 17mm with a 5mm width. Its stainless steel construction offers good corrosion resistance and durability.

This sealed bearing handles radial loads up to 171 lbf and can spin at speeds up to 24,000 RPM. The built-in flange provides secure mounting, while the grease lubrication ensures smooth operation.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, making replacements straightforward.

Ideal for small machinery or appliances where space is limited but reliable performance is needed. Weighing just 0.0047kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 628/9 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 75 lbf
  • Max Speed 24000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0047 kg
  • Price（$） 2.4

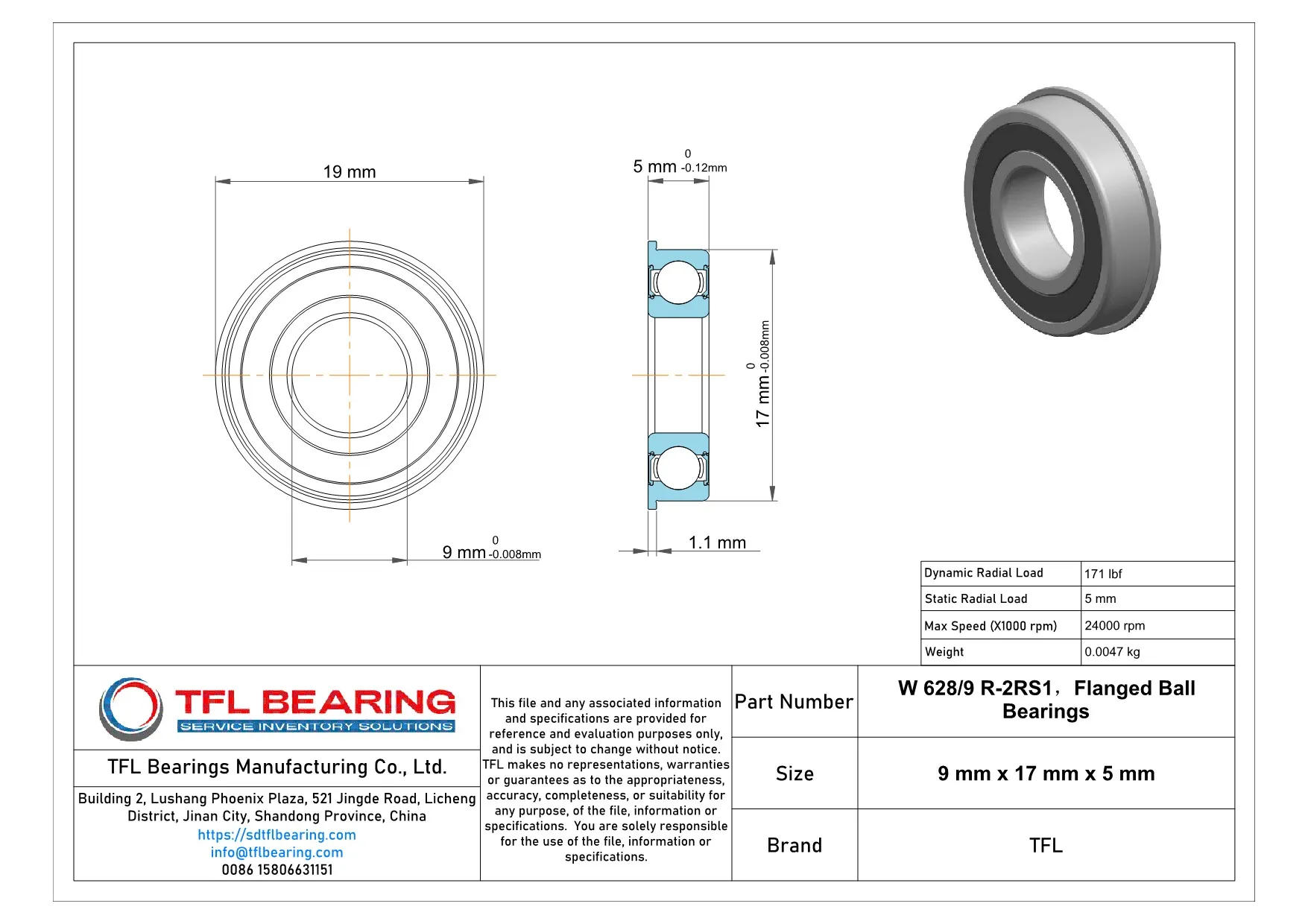

Flanged Deep Groove Ball Bearings W 628/9 R-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 628/9 R-2RS1 Bearing for Precision Tasks?

W 628/9 R-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring corrosion resistance and durability.
Its sealed design keeps contaminants out, maintaining smooth operation in various environments.

The compact size of 9 mm×19 mm×5 mm makes it ideal for applications where space is limited.
With a maximum speed of 24,000 rpm, it delivers reliable performance in high-speed scenarios.

W 628/9 R-2RS1 Bearing’s flange outer dia of 19 mm provides secure mounting, reducing misalignment risks.
Its grease lubrication ensures long-lasting performance with minimal maintenance required.

Application

Common Applications of W 628/9 R-2RS1 Bearing
W 628/9 R-2RS1 Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its compact size and sealed design keep dust and moisture out, ensuring long-lasting performance.

In automation systems, W 628/9 R-2RS1 Bearing fits neatly into robotic arms and small conveyor mechanisms. The stainless steel construction offers good resistance to corrosion, which is handy in humid or washdown environments.

For medical devices, W 628/9 R-9 R-2RS1 Bearing provides smooth rotation in handheld diagnostic tools. The grease lubrication ensures quiet operation, which is essential in sensitive clinical settings.

You’ll also find W 628/9 R-2RS1 Bearing in office equipment like printers, where its low-profile design saves space. The flange helps with easy mounting, reducing assembly time during production.
