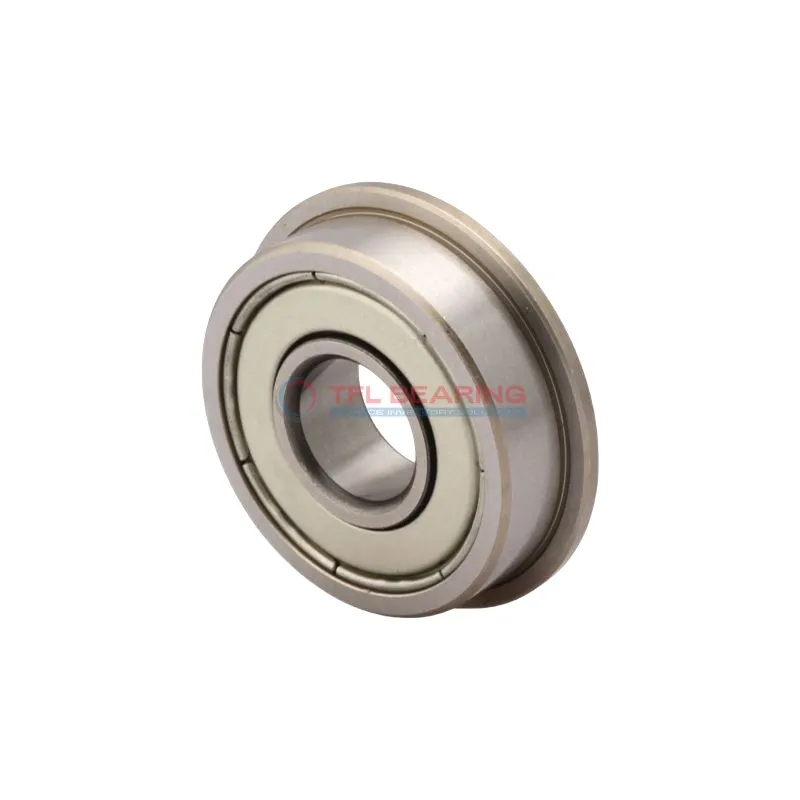

Flanged Deep Groove Ball Bearings W 628/7 R-2Z

Flanged Deep Groove Ball Bearings W 628/7 R-2Z

The W 628/7 R-2Z is a compact flanged deep groove ball bearing, measuring 7mm by 14mm with a 5mm width. Its stainless steel construction offers good resistance to wear and corrosion.

This bearing handles radial loads up to 149 lbf and spins smoothly at speeds up to 50,000 RPM. The shielded design helps keep dirt out while retaining lubrication.

The flange provides secure mounting, making it easier to position in tight spaces. It works in temperatures from -30°C to 120°C and comes pre-lubricated with grease.

Ideal for small electric motors or precision instruments where space is limited. Weighing just 3.2 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 628/7 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 16 mm
  • Flange Thickness 1.1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 149 lbf
  • Static Radial Load 58 lbf
  • Max Speed 50000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0032 kg
  • Price（$） 2
Flanged Deep Groove Ball Bearings W 628/7 R-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 628/7 R-2Z Bearing for Precision Tasks?

W 628/7 R-2Z Bearing features a stainless steel construction, offering excellent resistance to corrosion and wear.

Its shielded design keeps contaminants out while maintaining smooth operation at high speeds up to 50,000 rpm.

The flanged outer ring ensures secure mounting, making it ideal for compact and precise applications.

With a dynamic radial load capacity of 149 lbf, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of W 628/7 R-2Z Bearing
W 628/7 R-2Z Bearing is commonly used in small industrial motors and pumps, where its compact size and shielded design help keep contaminants out. The stainless steel construction ensures it holds up well in damp or corrosive environments.

What Makes W 628/7 R-2Z Bearing a Preferred Choice?
In automation systems, W 628/7 R-2Z Bearing fits neatly into robotic joints and small conveyors, providing smooth rotation with minimal maintenance. Its high-speed capability makes it ideal for precision applications.

Perfect Fit for Automation: W 628/7 R-2Z Bearing
You’ll often spot W 628/7 R-2Z Bearing in 3D printers and CNC machines, where its low friction and reliable performance are key. The flange adds extra stability, preventing misalignment during operation.

Medical vs Industrial: Where W 628/7 R-2Z Bearing Excels
While W 628/7 R-2Z Bearing works well in lab equipment like centrifuges, it’s equally handy in small household gadgets. The grease lubrication ensures quiet operation, perfect for both settings.
