Flanged Deep Groove Ball Bearings W 61704 R-2ZS

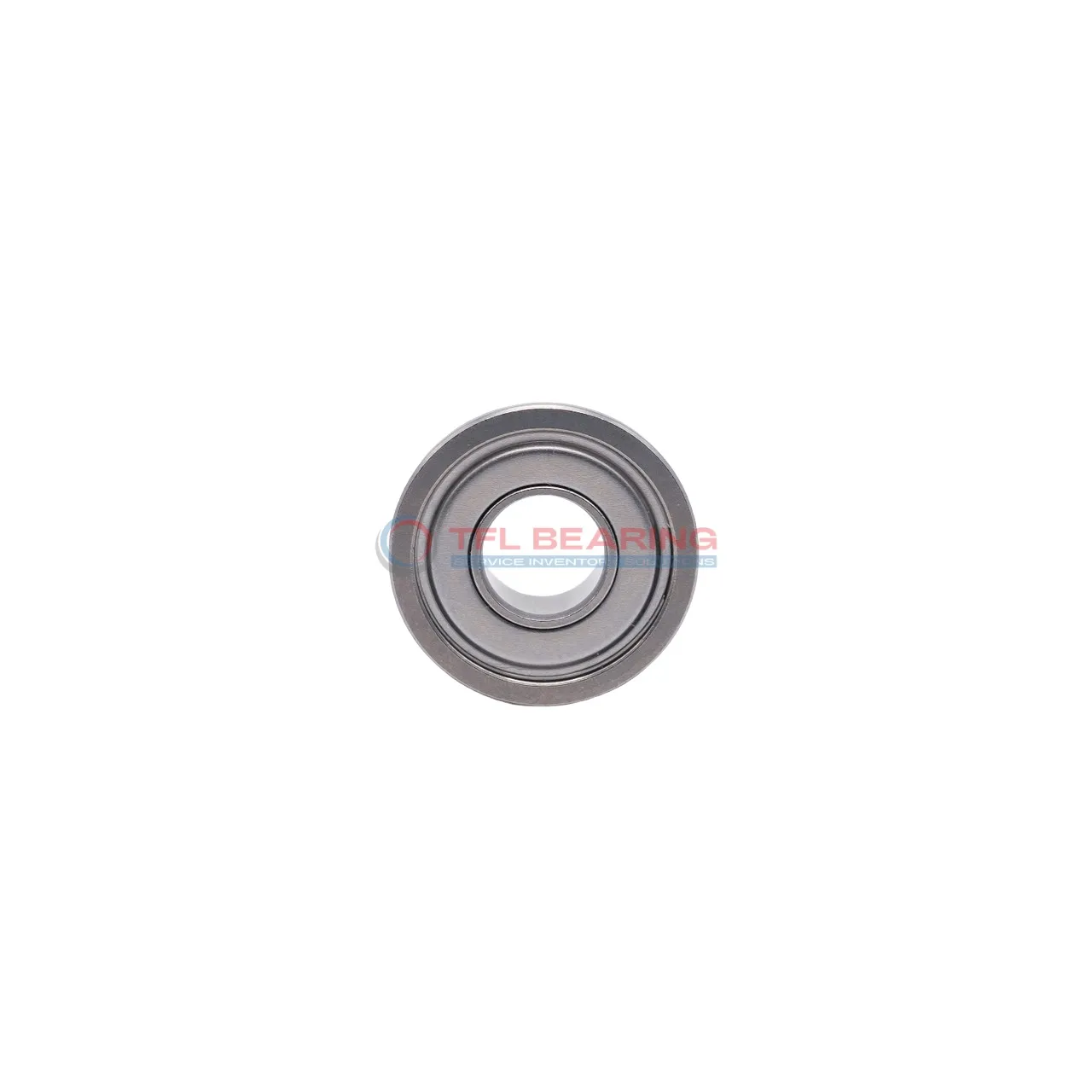

Flanged Deep Groove Ball Bearings W 61704 R-2ZS

The W 61704 R-2ZS is a compact flanged deep groove ball bearing with a 20mm bore and 27mm outer diameter, crafted entirely from stainless steel. Its shielded design keeps grease in and dirt out, making it low-maintenance.

With a dynamic radial load capacity of 132 lbf, it handles moderate loads smoothly and spins up to 26,000 RPM. The flange adds stability, preventing slippage in tight spaces.

This single-row bearing operates in temperatures from -30°C to 120°C, suitable for small machinery or instruments. Its lightweight 0.0062kg design doesn’t compromise durability.

Interchangeable with SKF models, it’s a practical choice for replacements in applications like electric motors or precision equipment where space is limited. RoHS and REACH compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61704 R-2ZS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 27 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 28.5 mm
  • Flange Thickness 0.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 132 lbf
  • Static Radial Load 88 lbf
  • Max Speed 26000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0062 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61704 R-2ZS dimension drawing
Download DWG Download PDF

Features

How Does W 61704 R-2ZS Bearing Reduce Friction?

W 61704 R-2ZS Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps retain lubrication, reducing wear and extending service life.
The single-row construction and precision tolerances contribute to efficient radial load handling.
With a maximum speed of 26,000 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of W 61704 R-2ZS Bearing
W 61704 R-2ZS Bearing is commonly used in small industrial motors and pumps, where its compact size and shielded design protect against dust and debris. The stainless steel construction ensures longevity even in humid or corrosive environments.

Where Is W 61704 R-2ZS Bearing Used?
You’ll often find W 61704 R-2ZS Bearing in automotive applications like electric window mechanisms or wiper systems, thanks to its reliable radial load handling. Its metric dimensions make it a seamless fit for many European and Asian car models.

Perfect Fit for Automation: W 61704 R-2ZS Bearing
In robotics and automation, W 61704 R-2ZS Bearing works well in lightweight joints and small actuators due to its low friction and high-speed capability. The grease lubrication ensures smooth operation over extended periods.

Medical vs Industrial: Where W 61704 R-2ZS Bearing Excels
While W 61704 R-2ZS Bearing is versatile enough for industrial tools, it’s also suitable for medical devices like dental handpieces, where precision and hygiene are key. The stainless steel materials meet strict cleanliness standards.

Consumer Electronics and W 61704 R-2ZS Bearing
For household gadgets like cooling fans or small appliances, W 61704 R-2ZS Bearing offers quiet and efficient performance. Its shielded design keeps out dust, making it ideal for everyday use.
