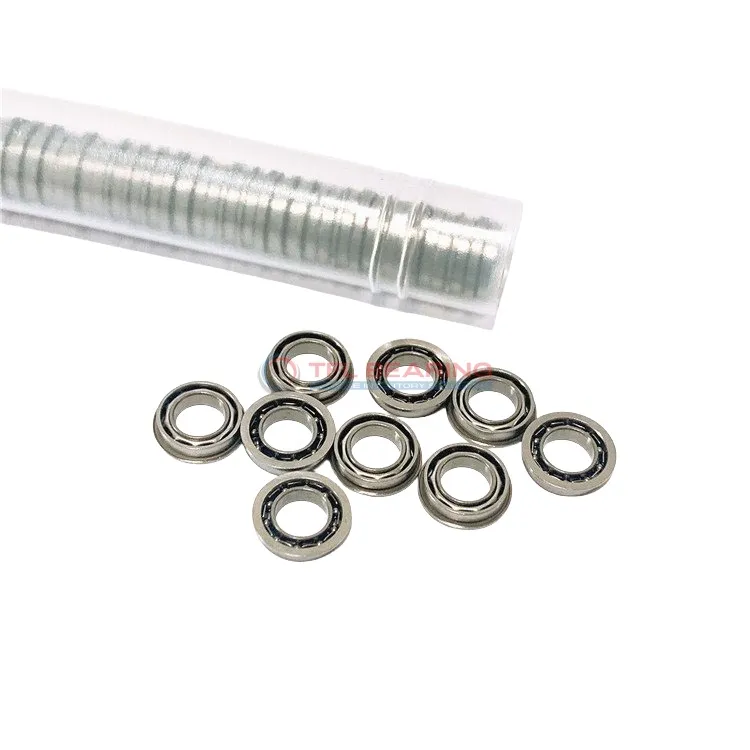

Flanged Deep Groove Ball Bearings W 61701 R

Flanged Deep Groove Ball Bearings W 61701 R

The W 61701 R is a compact flanged deep groove ball bearing with a 12mm bore and 18mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 118 lbf and spins smoothly at speeds up to 48,000 RPM.

Its single-row design and open seal make it easy to maintain, while the flange ensures secure mounting in tight spaces. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small machinery or instruments where space is limited and radial loads are common.

Weighing just 0.0029kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61701 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 18 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19.5 mm
  • Flange Thickness 0.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 118 lbf
  • Static Radial Load 60 lbf
  • Max Speed 48000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0029 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61701 R dimension drawing
Download DWG Download PDF

Features

How Does W 61701 R Bearing Reduce Friction?

W 61701 R Bearing is crafted with stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row deep groove design enhances radial load capacity while maintaining efficiency.

The open seal type allows for easy lubrication, further reducing friction and wear.
With a maximum speed of 48,000 rpm, it delivers reliable performance in high-speed applications.

W 61701 R Bearing’s compact size and lightweight design make it suitable for precision instruments.
Its stainless steel construction also provides good resistance to corrosion, extending its service life.

Application

Industrial Uses of W 61701 R Bearing
W 61701 R Bearing is commonly used in small industrial equipment like compact pumps and electric motors, where its flanged design ensures secure mounting. The stainless steel construction offers good resistance to corrosion in humid environments.

How Does W 61701 R Bearing Improve Performance?
In automotive applications, W 61701 R Bearing provides smooth rotation in components such as window regulators and small gearboxes. Its lightweight design and high-speed capability make it suitable for space-constrained areas.

Perfect Fit for Automation: W 61701 R Bearing
W 61701 R Bearing works well in robotic arms and precision automation systems due to its low friction and reliable performance. The open seal type allows for easy lubrication adjustments to suit different operating conditions.

Medical vs Industrial: Where W 61701 R Bearing Excels
W 61701 R Bearing is ideal for medical devices like dental handpieces, where its small size and hygiene-friendly stainless steel are advantages. In industrial settings, it’s often chosen for conveyor belt guides due to its durability.

Light-Duty vs Heavy-Duty: Best Uses for W 61701 R Bearing
For light-duty tasks, W 61701 R Bearing is great in office equipment like printers, where quiet operation matters. In more demanding scenarios, it handles radial loads in small fans or cooling systems without issues.
