FAG Current-Insulated Bearings 6320-J20AB-C3

FAG Current-Insulated Bearings 6320-J20AB-C3

The FAG 6320-J20AB-C3 is a current-insulated bearing with a 100mm bore and 215mm outer diameter, designed to prevent electrical damage in machinery. Its outer ring features a ceramic coating, providing insulation against voltages up to 500V.

This model handles dynamic loads up to 182kN and static loads of 140kN, with a reference speed of 4250 RPM. The C3 radial clearance ensures smooth operation under varying temperatures.

The sheet metal cage offers durability, while the coating maintains high electrical resistance (50MΩ dry, 10MΩ damp). It’s ideal for electric motors or generators where stray currents are a concern.

Weighing 7.27kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for modern applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6320-J20AB-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AB
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 215.0 mm
  • Width 47.0 mm
  • Net Weight 7.27 kg
  • Basic Dynamic Load Rating 182.0 kN
  • Basic Static Load Rating 140.0 kN
  • Reference Speed 4250 r/min
  • Breakdown Voltage (DC) ≤500 V
  • Layer Thickness 100 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

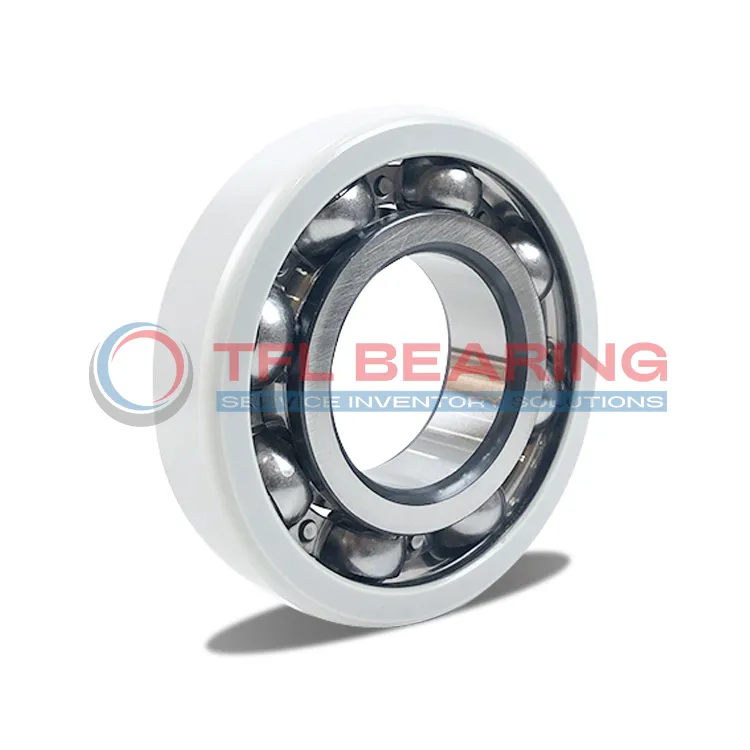

FAG Current-Insulated Bearings 6320-J20AB-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6320-J20AB-C3 Bearing Engineered for Reliability?

6320-J20AB-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrical applications.

The sheet metal cage ensures smooth operation, even at high speeds up to 4,250 r/min.
With a basic dynamic load rating of 182 kN, it handles heavy loads reliably.

6320-J20AB-C3 Bearing’s C3 radial internal clearance allows for thermal expansion in demanding conditions.
Its 100 µm coating thickness ensures consistent insulation performance over time.

The bearing’s electrical resistance remains high, with 50MΩ when dry and 10MΩ in damp conditions.
This makes 6320-J20AB-C3 Bearing suitable for various industrial environments.

Application

Industrial Uses of 6320-J20AB-C3 Bearing
The 6320-J20AB-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. Its ceramic outer ring coating ensures reliable performance in environments with stray currents.

What Makes 6320-J20AB-C3 Bearing a Preferred Choice?
With a high dynamic load rating of 182 kN, 6320-J20AB-C3 Bearing handles heavy loads in industrial gearboxes and pumps. The C3 clearance allows for thermal expansion, making it suitable for high-speed applications.

Perfect Fit for Automation: 6320-J20AB-C3 Bearing
In robotic arms and automated machinery, 6320-J20AB-C3 Bearing offers smooth operation thanks to its sheet metal cage. The insulating properties also protect against electrical arcing in sensitive equipment.

Automotive vs Aerospace: Applications of 6320-J20AB-C3 Bearing
While 6320-J20AB-C3 Bearing is used in automotive alternators for its insulation, it also suits aerospace actuators due to its lightweight design. The 100 µm coating ensures durability in both fields.

Where Is 6320-J20AB-C3 Bearing Used?
You’ll find 6320-J20AB-C3 Bearing in wind turbines, where its breakdown voltage of 500V safeguards against electrical discharges. The 10MΩ damp resistance ensures consistent performance even in humid conditions.
