Electrically Insulated Ball Bearings 6309/C3VL0241

Electrically Insulated Ball Bearings 6309/C3VL0241

The 6309/C3VL0241 is an electrically insulated ball bearing with a 45mm bore and 100mm outer diameter, designed to prevent electrical currents from passing through. It handles dynamic loads up to 56kN and spins smoothly at speeds up to 9500 RPM.

Its outer ring features a special coating with a breakdown voltage of 1000-3000V, making it ideal for electric motors or generators. The C3 radial clearance ensures reliable performance under varying temperatures.

Weighing just 0.8kg, it’s lightweight yet robust for industrial use. Compliant with RoHS and REACH standards, this bearing is a safe choice for applications where electrical insulation is crucial.

The sheet metal cage adds durability, while the 100-500µm coating thickness provides consistent insulation. Perfect for wind turbines or railway systems where electrical arcing is a concern.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6309/C3VL0241
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL0241
  • Insulating Coating Types Insulation coating on outer ring
  • Manufacturers TFL
  • Bore Diameter 45.0 mm
  • Outside Diameter 100.0 mm
  • Width 25.0 mm
  • Net Weight 0.802 kg
  • Basic Dynamic Load Rating 56.0 kN
  • Basic Static Load Rating 31.5 kN
  • Reference Speed 9500 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

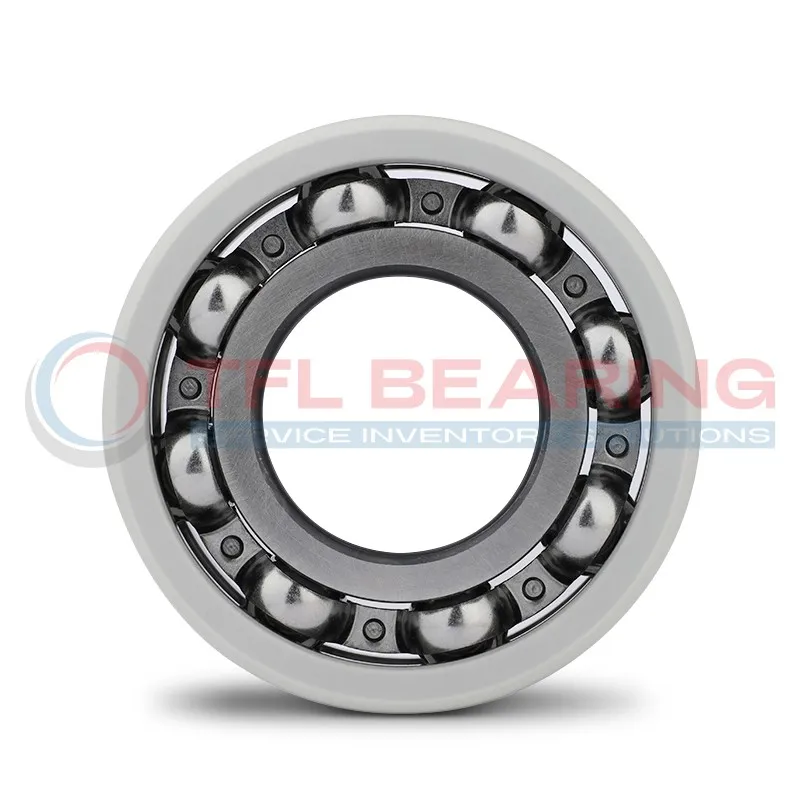

Electrically Insulated Ball Bearings 6309/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6309/C3VL0241 Bearing Engineered for Reliability?

6309/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical damage in high-voltage environments.
Its breakdown voltage ranges from 1000 to 3000 V, ensuring safe operation in electrically charged applications.

The sheet metal cage maintains ball alignment, enhancing durability under dynamic loads up to 56.0 kN.
With a reference speed of 9500 r/min, it delivers consistent performance without compromising safety.

6309/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
The coating thickness of 100~500 µm provides reliable insulation while maintaining structural integrity.

Application

Essential Roles of 6309/C3VL0241 Bearing
6309/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life. The C3 clearance ensures reliable performance even under thermal expansion.

Where Is 6309/C3VL0241 Bearing Used?
In wind turbines, 6309/C3VL0241 Bearing handles high radial loads while its insulating properties protect against stray currents. The sheet metal cage offers durability in these demanding environments.

Perfect Fit for Automation: 6309/C3VL0241 Bearing
6309/C3VL0241 Bearing works well in robotic arms, where its breakdown voltage rating safeguards against electrical damage. The metric dimensions make it easy to integrate into European-designed systems.

Medical vs Industrial: Where 6309/C3VL0241 Bearing Excels
For MRI machines, 6309/C3VL0241 Bearing’s non-conductive coating prevents interference with sensitive imaging. In factory settings, it reliably supports conveyor drives without electrical wear issues.
