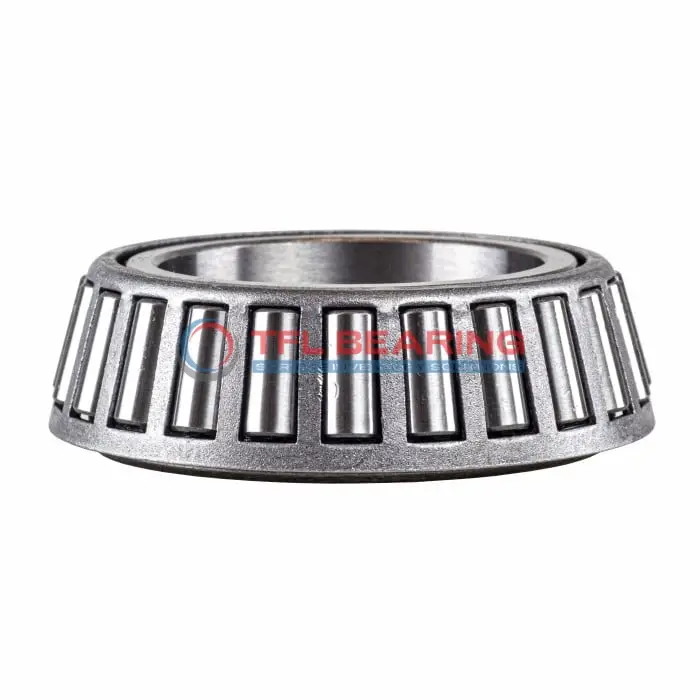

EE710906 Single Cones (Imperial)

EE710906 Single Cones (Imperial)

The EE710906 is a single-row tapered roller bearing with a 9-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 215,000 lbf and static loads up to 287,000 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it suitable for harsh environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty applications like industrial machinery or construction equipment where robust performance is needed.

With standard radial clearance and ABEC-1 rating, it balances precision and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE710906
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number EE710906-711600
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 9"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 9.84"
  • Cone Backface Backing Diameter 10.35"
  • Cage Cone Frontface Clearance 0.33"
  • Cage Cone Backface Clearance 0.32"
  • Effective Center Location 0.48"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 215000 lbf
  • Static Radial Load 287000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 55600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 374000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 45000 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 96900 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is EE710906 Bearing Engineered for Reliability?

EE710906 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 215,000 lbf, ensuring dependable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and enhancing longevity.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

EE710906 Bearing’s standard radial clearance options provide flexibility for different applications.
Its ABEC-1 rating ensures consistent precision and smooth operation.

Application

Industrial Uses of EE710906 Bearing
EE710906 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is EE710906 Bearing Used?
You’ll often find EE710906 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it ideal for older or non-metric industrial systems.

Built for Heavy-Duty Use: EE710906 Bearing
EE710906 Bearing excels in applications like railway freight cars, where high radial and thrust loads are common. The steel cage provides added strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of EE710906 Bearing
In automotive settings, EE710906 Bearing is used in truck wheel hubs, while in aerospace, it supports landing gear mechanisms. Its ABEC-1 rating ensures consistent performance across different industries.

Practical Applications of EE710906 Bearing
EE710906 Bearing is a go-to choice for wind turbine systems, where its dynamic load capacity handles variable forces. The standard radial clearance offers flexibility for different operational needs.
