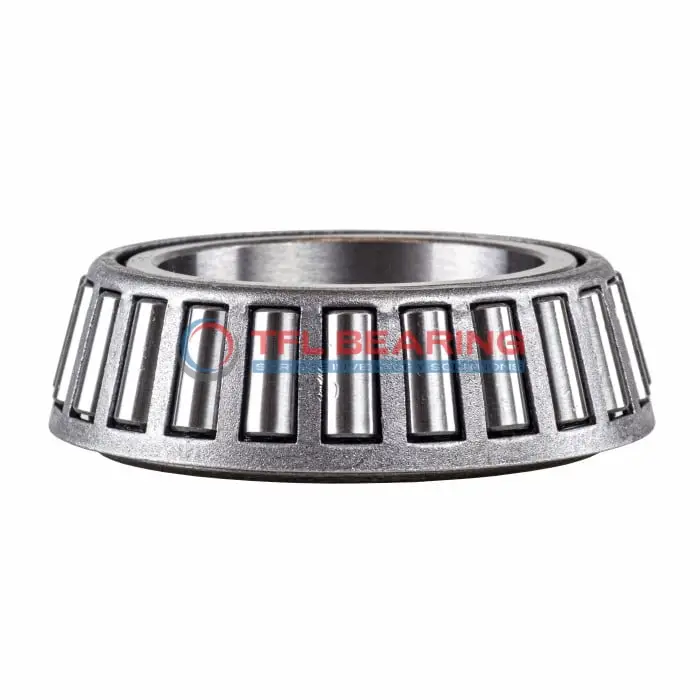

EE113089 Single Cones (Imperial)

EE113089 Single Cones (Imperial)

The EE113089 is a single-row tapered roller bearing cone with an 8.992″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 287,000 lbf and thrust loads up to 112,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone is part of the 113000 series and is interchangeable with Timken bearings, making it a practical choice for replacements.

This bearing operates smoothly in temperatures from -30°C to 110°C and comes with standard radial clearance (C3/C4/C5 options available). Ideal for heavy-duty applications like industrial gearboxes or large machinery where robust performance is needed.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability for demanding environments. The effective center location of 1.63″ ensures stable operation under load.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE113089
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number EE113089-113170
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 113000
  • Bore Dia 8.992"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 3.375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 10.51"
  • Cone Backface Backing Diameter 10.79"
  • Cage Cone Frontface Clearance 0.48"
  • Cage Cone Backface Clearance 0.76"
  • Effective Center Location 1.63"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 287000 lbf
  • Static Radial Load 361000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 74300 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 499000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 112000 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 129000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of EE113089 Bearing

EE113089 Bearing is crafted from chrome steel, offering robust resistance to combined loads with a dynamic radial load capacity of 287,000 lbf.
Its tapered roller design ensures efficient load distribution, enhancing durability in demanding applications.

The steel cage maintains proper roller alignment, reducing friction and extending the bearing’s service life.
With a temperature range of -30° to 110°C, EE113089 Bearing performs reliably in various environmental conditions.

EE113089 Bearing’s standard radial clearance and ABEC-1 rating provide consistent performance for industrial applications.
Its construction allows for easy installation and maintenance, reducing operational downtime.

Application

Industrial Uses of EE113089 Bearing
EE113089 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is EE113089 Bearing Used?
You’ll often find EE113089 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: EE113089 Bearing
EE113089 Bearing excels in industrial fans and pumps, thanks to its high dynamic radial load capacity. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of EE113089 Bearing
In automotive applications, EE113089 Bearing is ideal for wheel hubs and differential systems. For aerospace, its precision and reliability make it suitable for landing gear components.

Essential Roles of EE113089 Bearing
EE113089 Bearing plays a key role in railway systems, particularly in axle boxes where combined loads are common. The steel cage provides stability even under high-speed conditions.
