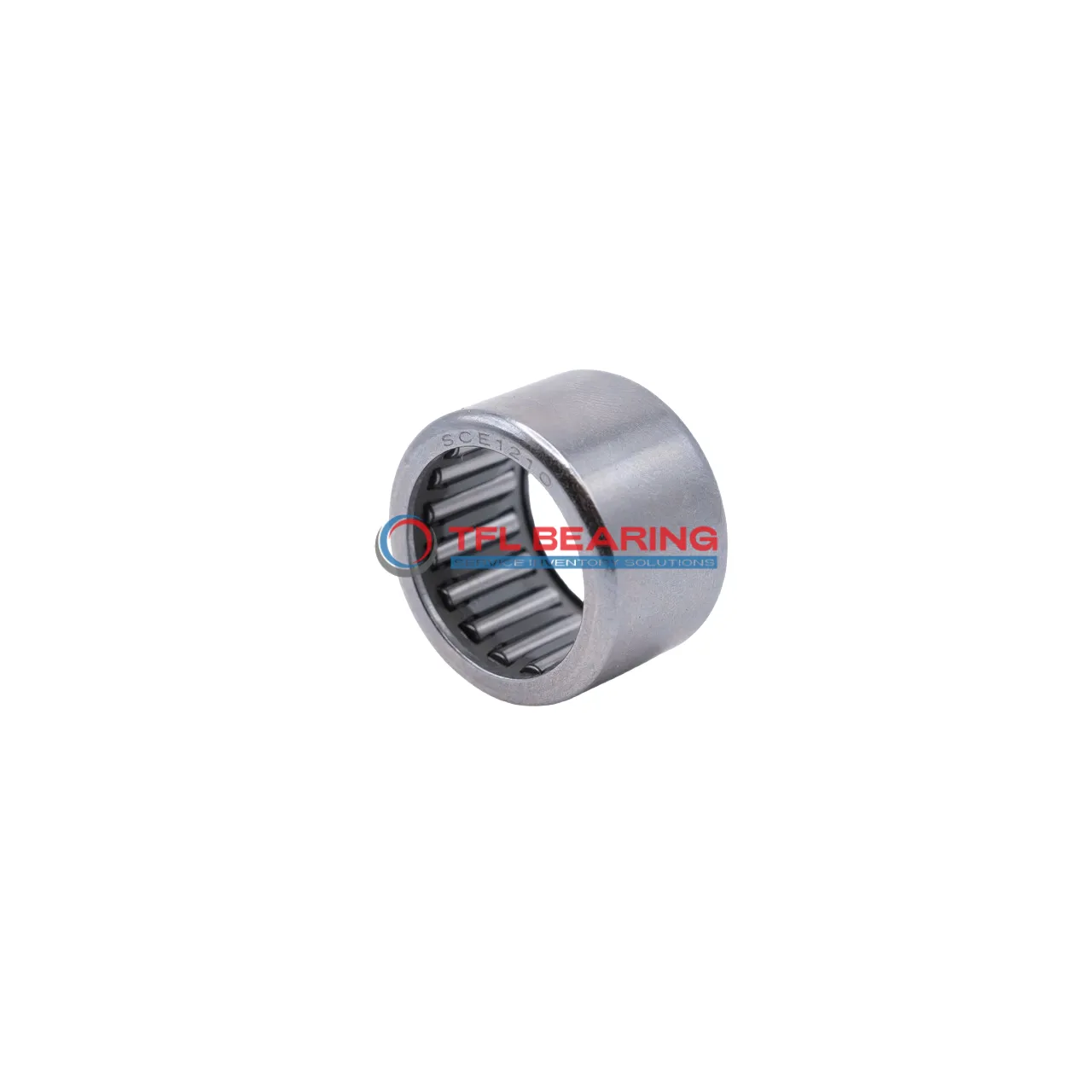

Drawn Cup Needle Roller Bearings SCE57

Drawn Cup Needle Roller Bearings SCE57

The SCE57 is a drawn cup needle roller bearing with a 0.3125″ bore and 0.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1057 lbf and can spin at speeds up to 29,000 RPM, making it suitable for high-speed applications.
Its open-end design allows for easy press-fit installation, while the steel cage ensures durability under stress. The bearing requires regular lubrication to maintain smooth operation.
Ideal for use in compact spaces like small engines or gear mechanisms, it works well in temperatures from -20°C to 110°C. This model is interchangeable with INA bearings, offering a practical replacement option.
Compliant with RoHS standards, it’s a dependable choice for industrial and automotive uses. Its lightweight construction and simple design make it easy to integrate into various setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE57
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.3125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.4375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1057 lbf
  • Static Radial Load 109 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29000 rpm
  • Weight 6 g
Drawn Cup Needle Roller Bearings SCE57 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE57 Bearing
SCE57 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity of 1057 lbf ensures reliable operation in various applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 29,000 rpm, it delivers efficient performance for high-speed needs.
SCE57 Bearing operates effectively in temperatures ranging from -20 to 110°C.
Its open-end construction allows for easy lubrication, enhancing longevity.

Application

Common Applications of SCE57 Bearing
SCE57 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as gearboxes and pumps. Its press-fit design ensures a secure mounting, ideal for high-speed operations.
Where Is SCE57 Bearing Used?
You’ll often find SCE57 Bearing in automotive applications like steering systems and transmission assemblies, thanks to its reliable performance under radial loads. The steel construction offers durability, making it suitable for long-term use.
Perfect Fit for Automation: SCE57 Bearing
In automated systems, SCE57 Bearing works well in robotic arms and conveyor mechanisms, where precision and low friction are key. The open-end design allows for easy lubrication, ensuring smooth operation over time.
Medical vs Industrial: Where SCE57 Bearing Excels
While SCE57 Bearing is common in industrial settings like printing machines, it also fits well in medical devices requiring compact, high-speed components. Its steel cage provides stability, even in demanding conditions.
Light-Duty vs Heavy-Duty: Best Uses for SCE57 Bearing
For light-duty tasks, SCE57 Bearing is great in small electric motors, while heavy-duty applications include agricultural machinery. Its inch sizing makes it versatile for various equipment standards.
