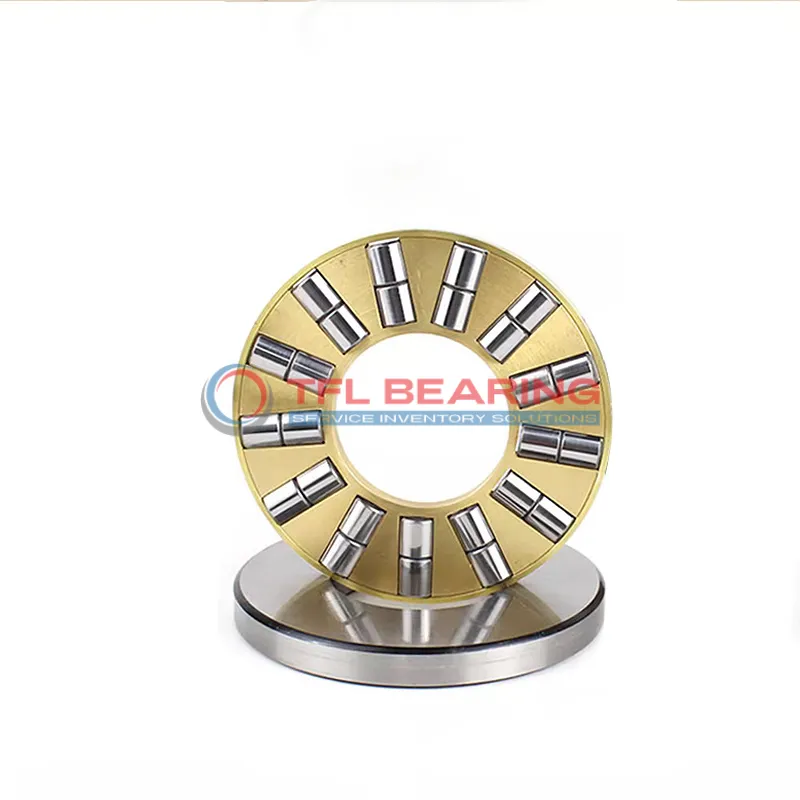

Double Row Cylindrical Roller Thrust Bearings 89415 M

Double Row Cylindrical Roller Thrust Bearings 89415 M

The 89415 M is a double-row cylindrical roller thrust bearing, measuring 75mm in bore diameter and 160mm in outer diameter, with a width of 51mm. Made from durable chrome steel, it’s built to handle heavy thrust loads with ease.

It supports dynamic radial loads up to 90000 lbf and static radial loads up to 344250 lbf, making it suitable for demanding applications. The bearing operates smoothly at speeds up to 1900 RPM and can withstand temperatures from -30°C to 110°C.

The machined brass cage ensures stability and longevity, while the precise tolerances guarantee reliable performance. Its interchangeable design with SKF bearings makes it a convenient choice for replacements.

Ideal for heavy machinery, industrial gearboxes, or any equipment requiring robust thrust load support. Weighing 5.96kg, it’s a sturdy option for high-load scenarios. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89415 M
  • Size 75 mm x 160 mm x 51 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 51 mm
  • Height Tolerance -0.30mm to +0.02mm
  • Outside Diameter Shaft Washer 160 mm
  • Bore Diameter Housing Washer 78 mm
  • Height Shaft Washer 17 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 90000 lbf
  • Static Radial Load 344250 lbf
  • Max Speed 1900 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.96 kg
  • Roller And Cage Thrust Assembly K 89415 M
  • Shaft Washer WS 89415
  • Housing Washer GS 89415
Double Row Cylindrical Roller Thrust Bearings 89415 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 89415 M Bearing

89415 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 90,000 lbf, ensuring reliable performance in demanding industrial applications.

The machined brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1,900 rpm, it delivers consistent performance under high-stress conditions.

89415 M Bearing operates efficiently in temperatures ranging from -30° to 110°C, suitable for varied environments.
Its precision-engineered design ensures smooth operation, even under substantial radial and thrust loads.

Application

Industrial Uses of 89415 M Bearing
The 89415 M Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability in demanding environments.

What Makes 89415 M Bearing a Preferred Choice?
In automotive applications, 89415 M Bearing supports components like gearboxes and differential systems, providing reliable performance under high stress. The machined brass cage enhances stability and reduces friction during operation.

Built for Heavy-Duty Use: 89415 M Bearing
For automation and robotics, 89415 M Bearing is ideal for precision movements in robotic arms and assembly lines. Its high load capacity and smooth operation make it suitable for repetitive tasks.

Medical vs Industrial: Where 89415 M Bearing Excels
In industrial settings, 89415 M Bearing is used in large-scale equipment like cranes and mining machinery. Its robust design ensures long-term reliability even under extreme conditions.

Practical Applications of 89415 M Bearing
For consumer electronics, 89415 M Bearing can be found in high-performance printers and industrial-grade fans. Its temperature resistance and low maintenance needs make it a practical choice for continuous use.
