Double Direction Thrust Ball Bearings 52408

Double Direction Thrust Ball Bearings 52408

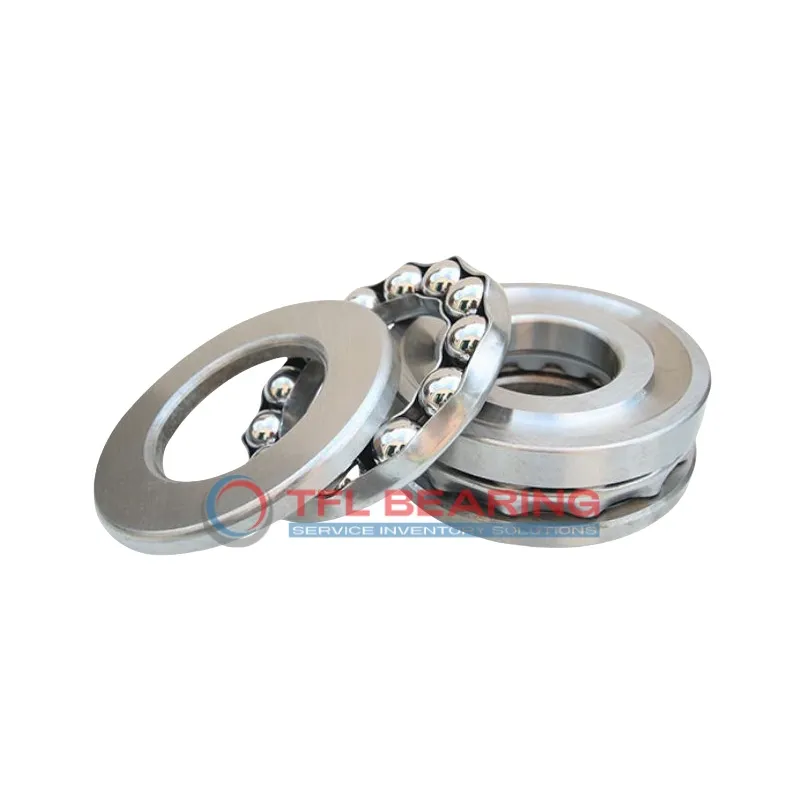

The 52408 is a double-direction thrust ball bearing with a 30mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 21510 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gearboxes where high thrust loads are expected.

Weighing 2.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52408
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 65 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 1.1 mm
  • Chamfer Dimension Shaft Washer 0.6 mm
  • Inner Dia Housing Washer 42 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 21510 lbf
  • Static Thrust Load 41175 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2400 rpm
  • Weight 2.05 kg

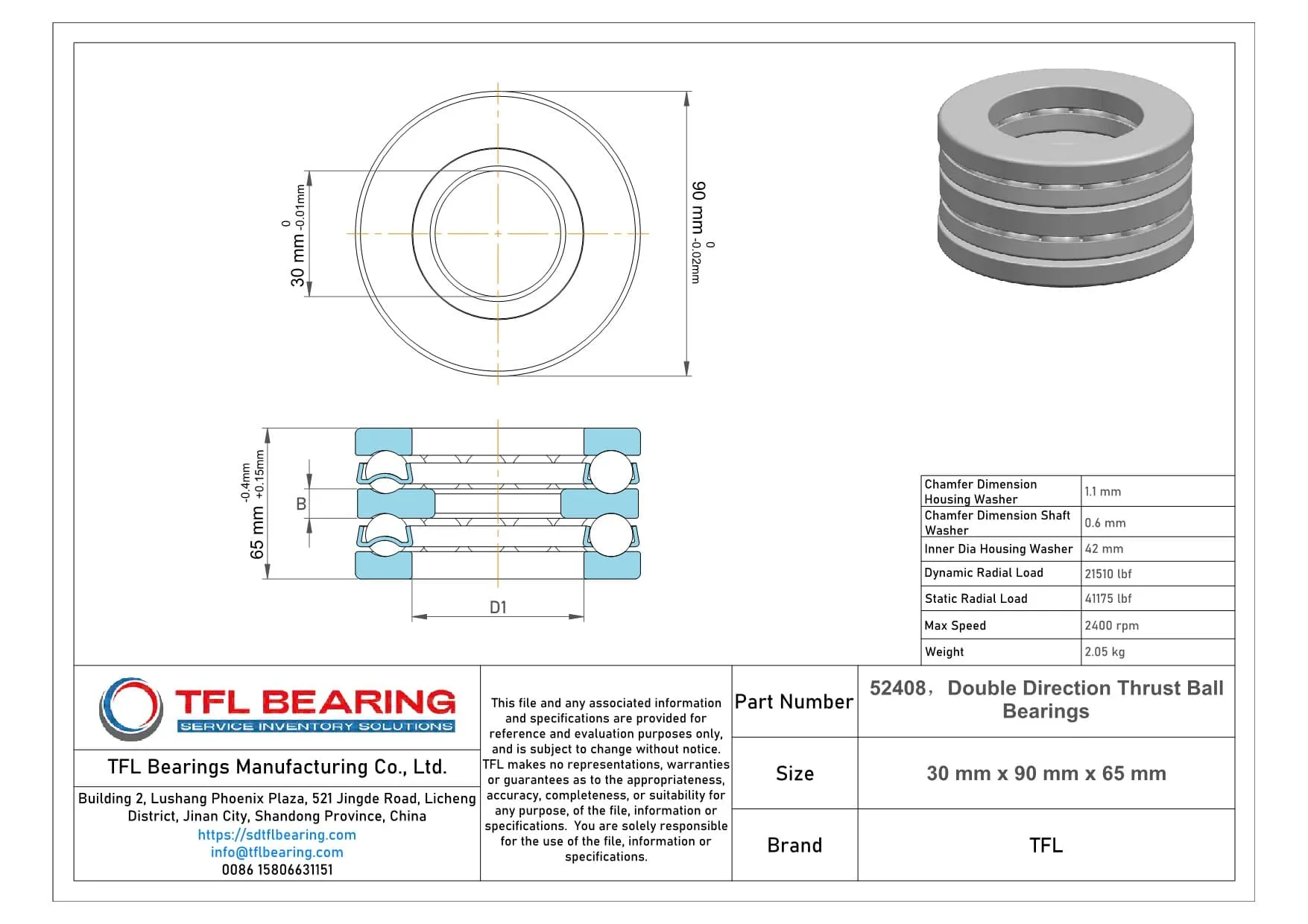

Double Direction Thrust Ball Bearings 52408 dimension drawing
Download DWG Download PDF

Features

Why Choose 52408 Bearing for Precision Tasks?

52408 Bearing features chrome steel rings and balls, ensuring high precision and durability in thrust applications.
Its dynamic thrust load capacity of 21510 lbf makes it suitable for heavy-duty operations.

The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 2,400 rpm, it delivers reliable and efficient operation.

52408 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy maintenance and long service life.

Application

Common Applications of 52408 Bearing
52408 Bearing is widely used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open seal design allows for easy lubrication, which helps in maintaining performance over time.

In automotive applications, 52408 Bearing can be found in heavy-duty gearboxes and drivetrains, providing reliable support under significant axial loads. Its chrome steel construction ensures durability even in demanding conditions.

For industrial automation, 52408 Bearing is suitable for robotic arms and assembly line equipment, where precision and load handling are key. The stainless steel cage adds to its longevity in continuous operation environments.

Medical imaging devices also benefit from 52408 Bearing’s stability and smooth operation, crucial for maintaining accuracy in diagnostic equipment. The temperature range makes it adaptable to various clinical settings.
