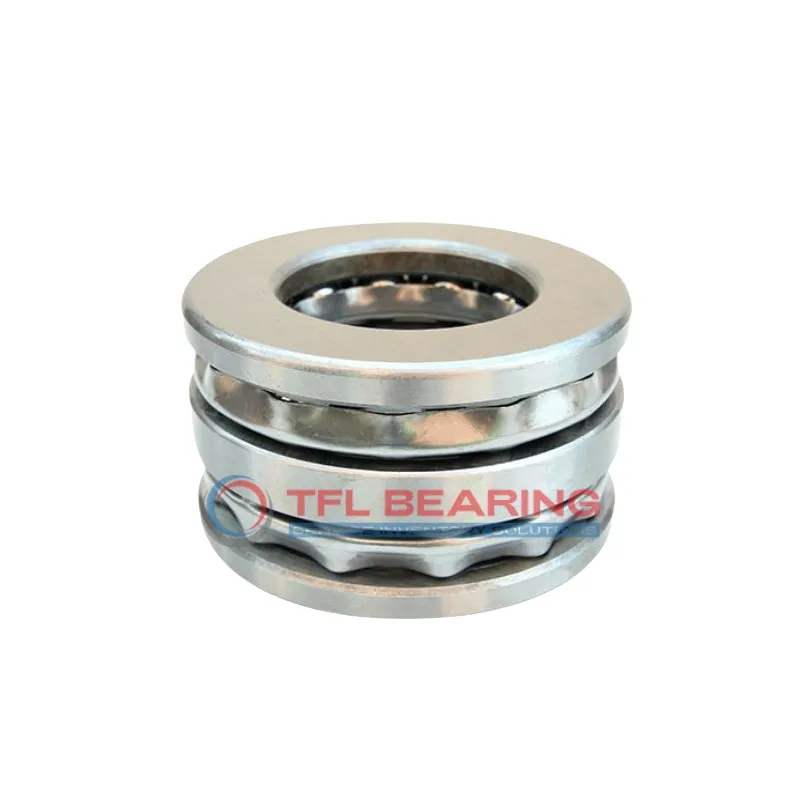

Double Direction Thrust Ball Bearings 52406

Double Direction Thrust Ball Bearings 52406

The 52406 is a double-direction thrust ball bearing with a 20mm bore and 70mm outer diameter, crafted from robust chrome steel. It manages thrust loads up to 15795 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or machinery with significant thrust loads.

Weighing 1kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52406
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 70 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 52 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 1 mm
  • Chamfer Dimension Shaft Washer 0.6 mm
  • Inner Dia Housing Washer 32 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 15795 lbf
  • Static Thrust Load 27450 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3200 rpm
  • Weight 1 kg

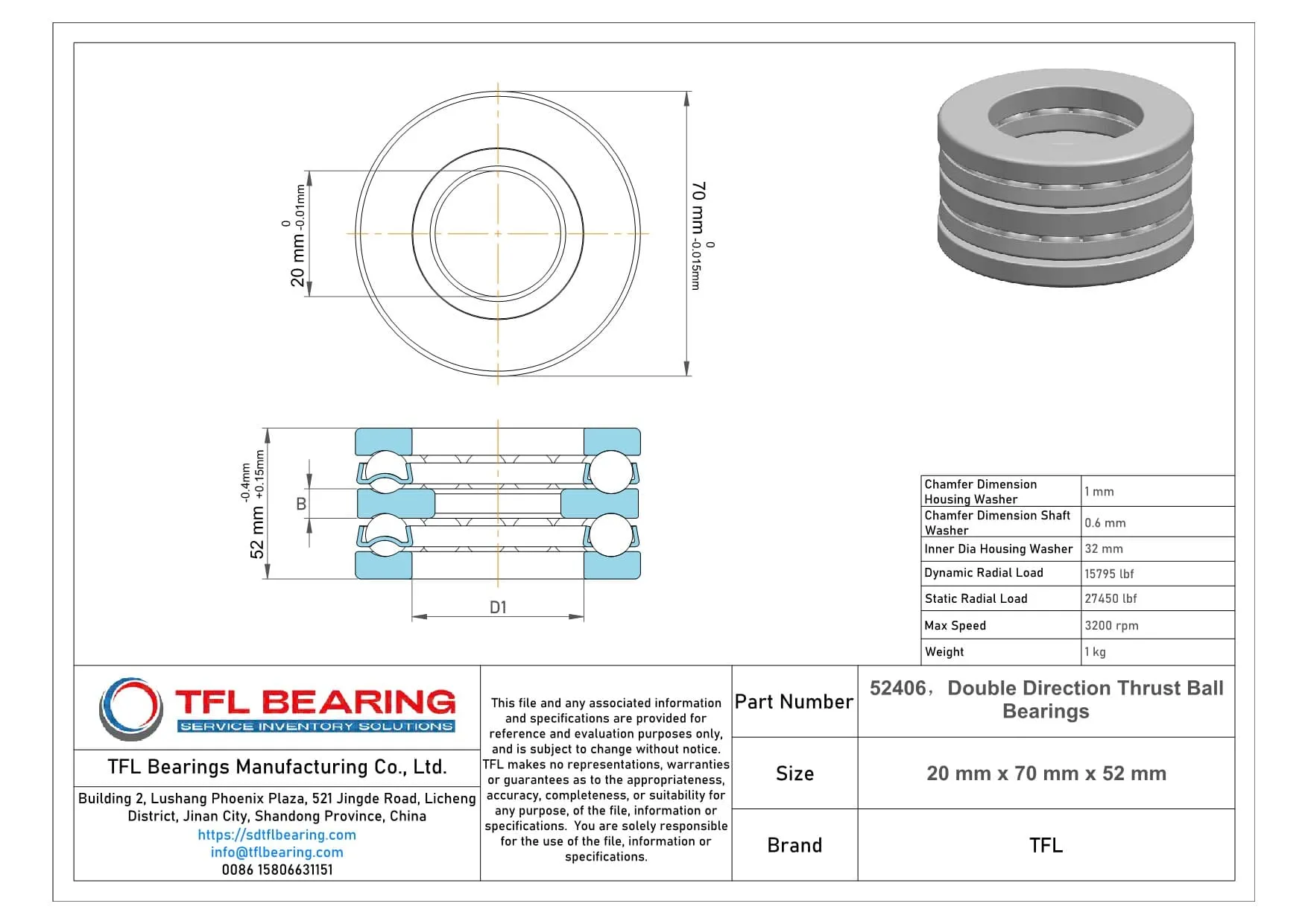

Double Direction Thrust Ball Bearings 52406 dimension drawing
Download DWG Download PDF

Features

Why Choose 52406 Bearing for Precision Tasks?

52406 Bearing features chrome steel rings and balls, ensuring durability and smooth operation under thrust loads.
Its dynamic thrust load capacity of 15795 lbf makes it suitable for heavy-duty applications requiring precision.

The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 3,200 rpm, it offers reliable efficiency in various conditions.

52406 Bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.
Its open seal design simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of 52406 Bearing
52406 Bearing is commonly used in heavy machinery like hydraulic presses and industrial pumps, where its high thrust load capacity ensures reliable performance. The open seal design simplifies lubrication, making it suitable for demanding environments.

What Makes 52406 Bearing a Preferred Choice?
In automotive applications, 52406 Bearing handles axial loads in gearboxes and differential systems, thanks to its durable chrome steel construction. Its metric dimensions make it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 52406 Bearing
For automation equipment, 52406 Bearing provides stable support in robotic arms and assembly lines. The stainless steel cage enhances longevity, even in high-speed operations.

Medical vs Industrial: Where 52406 Bearing Excels
While 52406 Bearing isn’t typically used in medical devices, it shines in industrial settings like conveyor systems and lifting equipment. Its robust design handles continuous operation with minimal maintenance.
