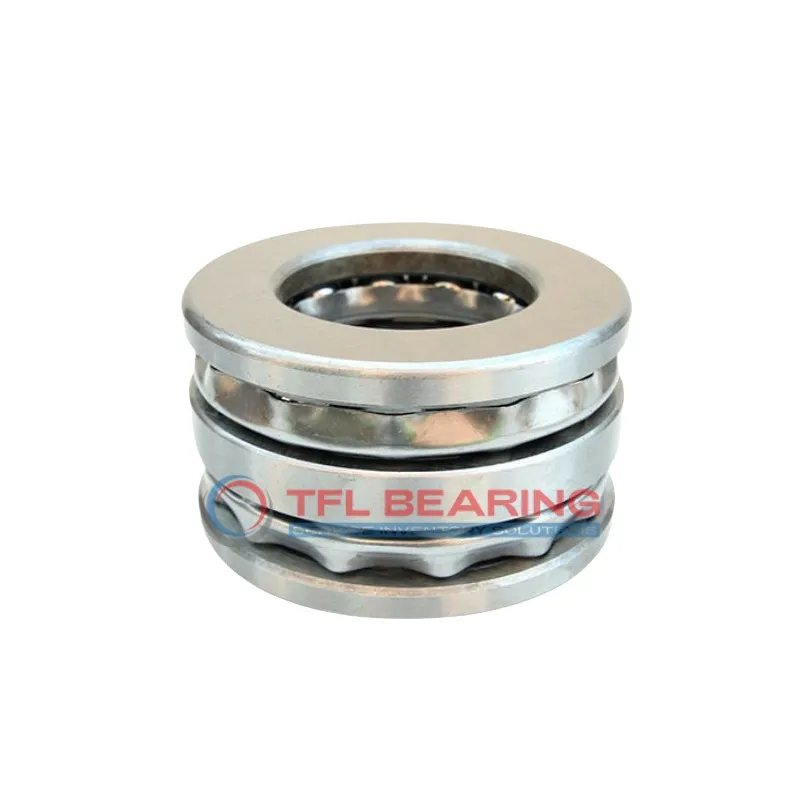

Double Direction Thrust Ball Bearings 52306

Double Direction Thrust Ball Bearings 52306

The 52306 is a double-direction thrust ball bearing with a 25mm bore and 60mm outer diameter, built from sturdy chrome steel. It manages thrust loads up to 8055 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or machinery with high thrust loads.

Weighing 0.47kg, it balances strength and portability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52306
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 60 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 38 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 1 mm
  • Chamfer Dimension Shaft Washer 0.3 mm
  • Inner Dia Housing Washer 32 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 8055 lbf
  • Static Thrust Load 14738 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 0.47 kg

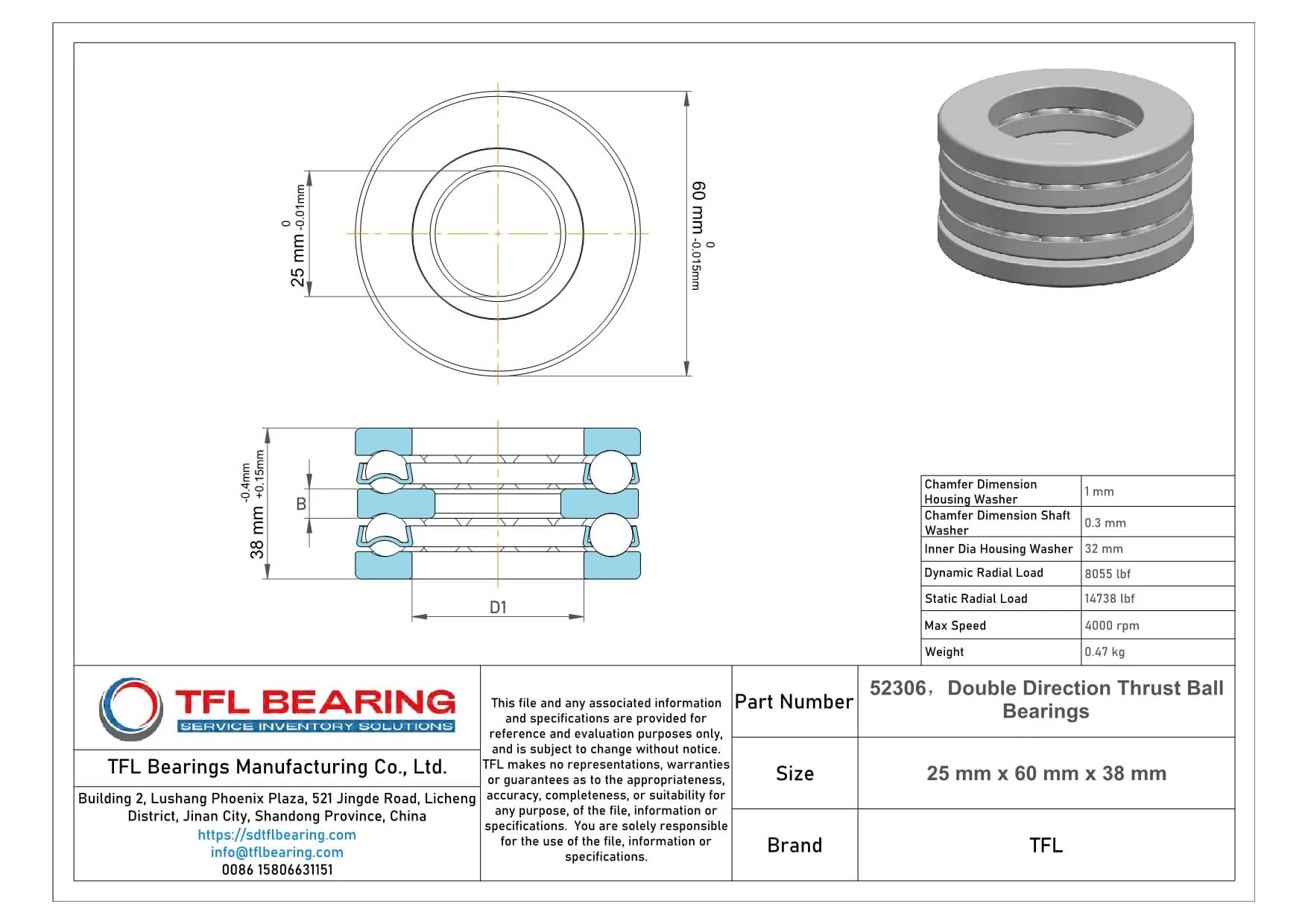

Double Direction Thrust Ball Bearings 52306 dimension drawing
Download DWG Download PDF

Features

Why Choose 52306 Bearing for Precision Tasks?

52306 Bearing features chrome steel rings and balls, ensuring precise movement under heavy thrust loads.
Its dynamic thrust load capacity of 8055 lbf makes it suitable for demanding industrial applications.

The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,000 rpm, it delivers consistent performance in high-stress environments.

52306 Bearing operates smoothly within a temperature range of -30° to 110°C, adapting to various conditions.
Its open seal design allows for easy maintenance, keeping operational costs low.

Application

Common Applications of 52306 Bearing
52306 Bearing is widely used in industrial settings, especially in heavy machinery like presses and lifting equipment, where its high thrust load capacity is essential. The open seal design ensures easy lubrication and maintenance, extending its service life.

In automotive applications, 52306 Bearing is often found in gearboxes and differential systems, providing reliable performance under demanding conditions. Its metric dimensions make it a versatile choice for various vehicle models.

For automation systems, 52306 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The chrome steel construction ensures smooth operation even in high-speed scenarios.

Medical devices like CT scanners also benefit from 52306 Bearing’s stability and low maintenance requirements. The stainless steel cage adds an extra layer of durability for continuous use.

In household appliances, 52306 Bearing can be found in washing machines and dishwashers, where its robust design handles frequent load changes. The temperature tolerance makes it suitable for both hot and cold environments.
