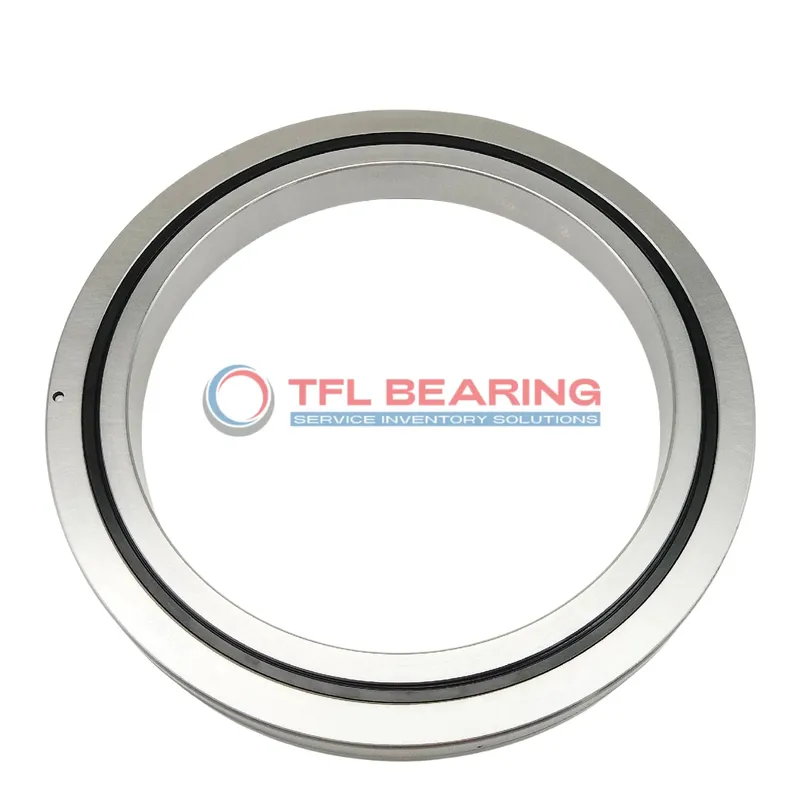

CRBH Crossed Roller Bearings CRBHV15025AUU

CRBH Crossed Roller Bearings CRBHV15025AUU

The CRBHV15025AUU is a crossed roller bearing measuring 150mm in bore diameter and 210mm in outer diameter, with a compact width of 25mm. Made from sturdy steel, it handles combined loads up to 84.3 kN and is designed for precision applications.

Its double-seal design keeps contaminants out while maintaining smooth operation, and the press-fit mounting ensures a secure installation. The bearing operates well in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (also available in higher precision grades), it’s ideal for rotary tables, robotics, or machine tools where accuracy is key. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use.

Weighing 3.16kg, it’s robust yet manageable for its size. Regular lubrication is recommended to maintain peak performance over time.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV15025AUU
  • Brand TFL
  • Size 150 mm x 210 mm x 25 mm
  • Bore Dia 150 mm
  • Outer Dia 210 mm
  • Width 25 mm
  • R(min) 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 162 mm
  • Mounting Dimensions(Da) 198 mm
  • Basic Load Rating C 84.300 kN
  • Basic Load Rating Co 138.000 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.16 Kg

Features

How Is CRBHV15025AUU Bearing Engineered for Reliability?

CRBHV15025AUU Bearing features a crossed roller design, providing stability under combined loads.
Its steel rings and rollers enhance durability, making it suitable for heavy-duty applications.

The double seal design protects against contaminants, ensuring smooth operation in harsh environments.
With a basic load rating of 84.300 kN, it handles significant stress while maintaining precision.

CRBHV15025AUU Bearing operates in temperatures from 0 to 230°F, offering versatility in various conditions.
Its press-fit shaft mounting simplifies installation, reducing setup time and effort.

Application

Common Applications of CRBHV15025AUU Bearing
CRBHV15025AUU Bearing is widely used in industrial automation, especially in robotic arms and precision machinery, where its crossed roller design ensures smooth rotational movement. The double seal feature helps keep contaminants out, extending its lifespan in demanding environments.

In medical imaging devices, CRBHV15025AUU Bearing provides stable support for rotating components, thanks to its high load capacity and precision. The steel construction ensures durability even in continuous operation.

For automotive applications, CRBHV15025AUU Bearing is ideal for steering systems and electric vehicle components, where combined load handling is essential. Its press-fit mounting simplifies installation in tight spaces.

CRBHV15025AUU Bearing also finds use in 3D printers, where its accuracy and low friction contribute to consistent print quality. The ABEC5 rating makes it suitable for high-precision tasks.
