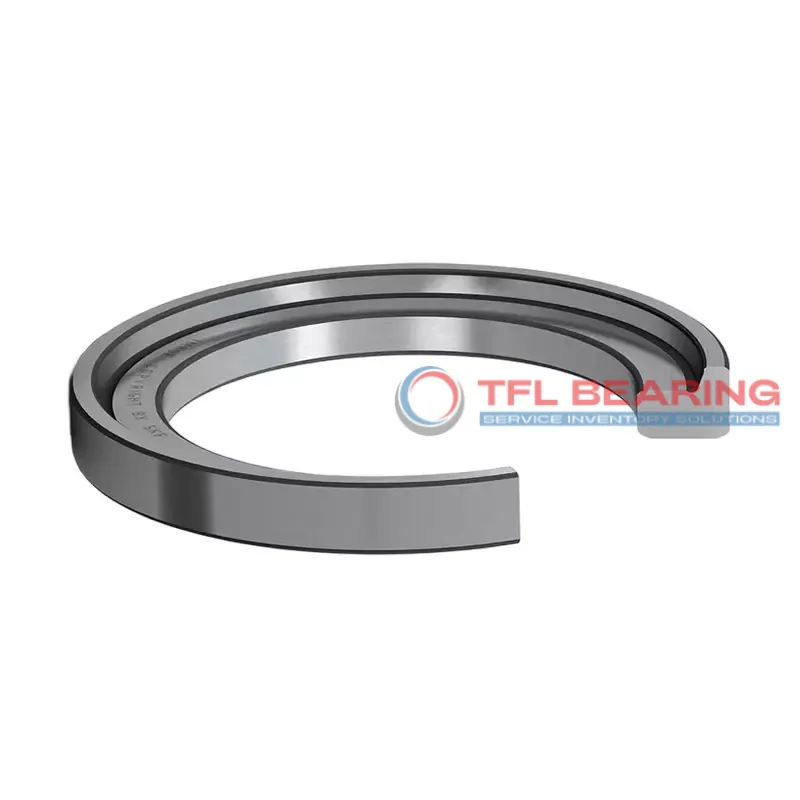

Angle Rings For Cylindrical Roller Bearings HJ 215 EC

Angle Rings For Cylindrical Roller Bearings HJ 215 EC

The HJ 215 EC angle ring is designed for cylindrical roller bearings, with a 75mm bore and 94.4mm outer diameter. Made from chrome steel, it offers durability and a precise fit for your bearing needs.
Its 7mm width on the inner ring side ensures stable contact, while the 11mm overall width provides ample support. The ring operates well in temperatures ranging from -30°C to 110°C.
The design includes a 1.5mm chamfer for easier installation and alignment. This angle ring is interchangeable with SKF models, making it a versatile choice for replacements.
Weighing just 0.16kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s suitable for industrial applications where reliability is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 215 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 94.4 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 7 mm
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.16 kg
Angle Rings For Cylindrical Roller Bearings HJ 215 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 215 EC Bearing
HJ 215 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its precise dimensions, with a bore diameter of 75 mm and outer diameter of 94.4 mm, ensure a snug fit.
The bearing operates efficiently within a temperature range of -30° to 110 °C, making it suitable for diverse environments.
Its design includes a chamfer length of 1.5 mm, enhancing ease of installation and reducing stress concentrations.
With a weight of 0.16 kg, HJ 215 EC Bearing balances strength and portability.
Its compliance with RoHS and REACH standards ensures it meets environmental and safety regulations.

Application

Industrial Uses of HJ 215 EC Bearing
HJ 215 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, HJ 215 EC Bearing fits well in wheel hubs and drivetrain components, providing reliable performance under constant stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation systems, HJ 215 EC Bearing supports robotic arms and precision equipment, thanks to its stable load-bearing capacity. The narrow width design allows for compact installations without compromising strength.
Medical imaging devices also benefit from HJ 215 EC Bearing’s smooth operation and resistance to wear. Its compliance with RoHS and REACH standards makes it suitable for sensitive healthcare environments.
