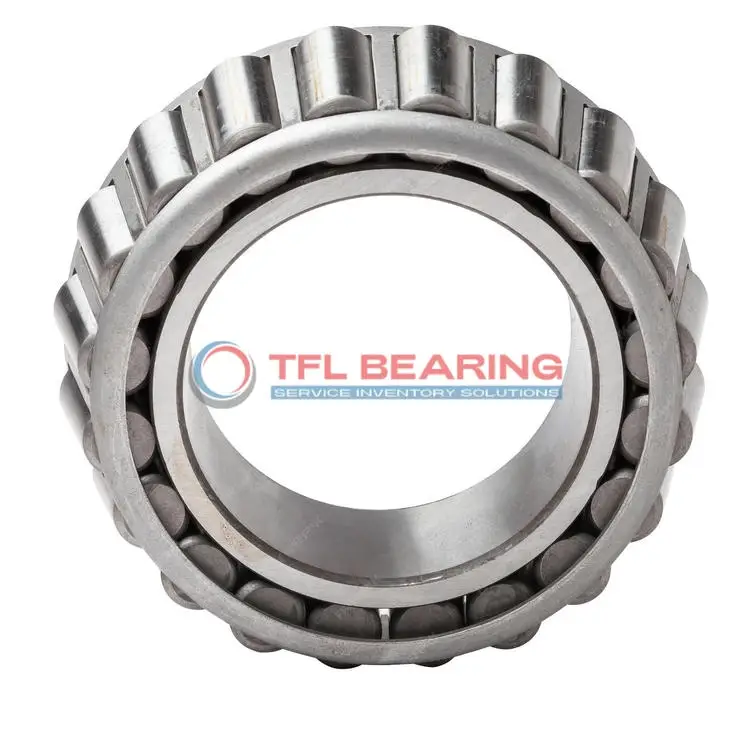

94703W Single Cones (Imperial)

94703W Single Cones (Imperial)

The 94703W is a single-row tapered roller bearing with a 7-inch bore, designed for combined loads and built from sturdy chrome steel. It handles dynamic radial loads up to 148,000 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures durability under heavy use. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 precision, it’s suited for industrial machinery or heavy equipment where reliability is key. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 94703W
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 94703W-94113 , 94703W-94113A , 94703W-94118
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 94000
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 7.68"
  • Cone Backface Backing Diameter 8.15"
  • Cage Cone Frontface Clearance 0.25"
  • Cage Cone Backface Clearance 0.24"
  • Effective Center Location -0.03"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 148000 lbf
  • Static Radial Load 242000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 38500 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 258000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 30800 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 67000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 94703W Bearing

94703W Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 148,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

94703W Bearing’s steel cage maintains roller alignment, reducing wear and extending service life.
Its standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 94703W Bearing
The 94703W Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough conditions.

Where Is 94703W Bearing Used?
You’ll often find the 94703W Bearing in industrial gearboxes and large conveyor systems, thanks to its high dynamic load capacity. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 94703W Bearing
The 94703W Bearing excels in applications like agricultural machinery and railway axles, where reliability under heavy loads is key. Its steel cage provides stability, even in high-vibration environments.

Automotive vs Aerospace: Applications of 94703W Bearing
In automotive settings, the 94703W Bearing supports heavy-duty axles and drivetrains, while in aerospace, it’s used in landing gear assemblies. Its inch sizing makes it versatile for various industrial standards.

Perfect Fit for Automation: 94703W Bearing
The 94703W Bearing works well in automated production lines, particularly in robotic arms and heavy-duty actuators. Its standard radial clearance ensures smooth operation in repetitive motion tasks.
