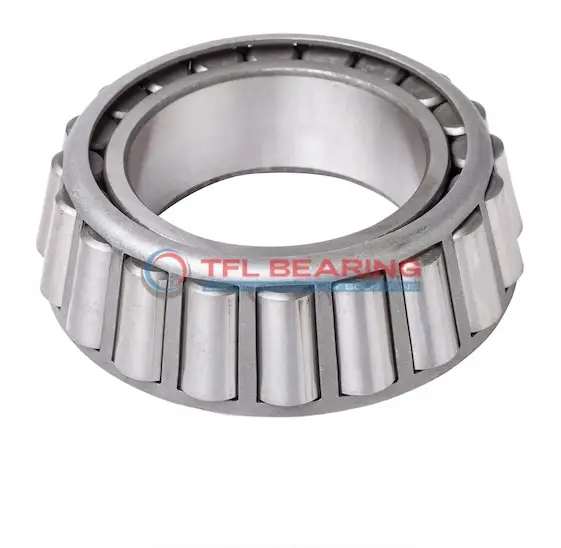

93800 Single Cones (Imperial)

93800 Single Cones (Imperial)

The 93800 single cone is a tapered roller bearing with an 8-inch bore and a 2.5-inch width, made from durable chrome steel. It handles combined loads with a dynamic radial capacity of 164,000 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and steel cage ensure easy maintenance and long service life. The bearing is compatible with Timken models, making it a practical choice for replacements or upgrades.

This cone is part of the 93000 series and comes with standard radial clearance (C3/C4/C5 options available). Ideal for heavy-duty applications like industrial gearboxes or large machinery where robust performance is needed.

Compliant with RoHS and REACH standards, it offers reliable quality for demanding environments. The ABEC-1 rating ensures consistent precision under load.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 93800
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 93800-93125 , 93800-93125-B , 93800-93125V , 93800-93126 , 93800-93134 , 93800-J93129A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 93000
  • Bore Dia 8"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.17"
  • Cone Frontface Backing Diameter 8.74"
  • Cone Backface Backing Diameter 8.94"
  • Cage Cone Frontface Clearance 0.21"
  • Cage Cone Backface Clearance 0.32"
  • Effective Center Location 0.31"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 164000 lbf
  • Static Radial Load 290000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 42600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 286000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 38200 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 74200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 93800 Single Cones (Imperial)

93800 Single Cones (Imperial) are built with chrome steel rings and a steel cage, ensuring durability under heavy combined loads.
Their dynamic radial load capacity reaches 164,000 lbf, making them suitable for demanding industrial applications.

The tapered roller design provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, they perform reliably in various environments.

The standard radial clearance option allows for flexibility in different operating conditions.
Their ABEC-1 rating ensures consistent precision for general industrial use.

The open seal design simplifies maintenance while keeping performance steady.
Interchangeability with Timken bearings adds convenience for replacements.

Application

Industrial Uses of 93800 Single Cones
The 93800 Single Cones are commonly used in heavy machinery, such as mining equipment and large conveyor systems, where their tapered roller design handles combined loads efficiently.

Their chrome steel construction ensures durability in harsh environments, making them a reliable choice for industrial applications.

What Makes 93800 Single Cones a Preferred Choice?
In automotive applications, 93800 Single Cones support heavy-duty axles and wheel hubs, providing stability under high radial and thrust loads.

The inch sizing and compatibility with Timken models make them versatile for North American and global markets.

Built for Heavy-Duty Use: 93800 Single Cones
These cones excel in construction equipment, like cranes and bulldozers, where their high dynamic load capacity ensures long service life.

The open seal design allows for easy lubrication, reducing maintenance downtime in demanding conditions.

Automotive vs Aerospace: Applications of 93800 Single Cones
In automotive settings, 93800 Single Cones are ideal for truck transmissions, offering smooth performance under stress.

For aerospace ground support equipment, their precision and load-handling capabilities ensure reliable operation.

Where Is 93800 Single Cones Used?
You’ll often find 93800 Single Cones in agricultural machinery, such as tractors and harvesters, where their robust design withstands uneven loads.

The steel cage adds extra strength, making them suitable for high-vibration environments.
