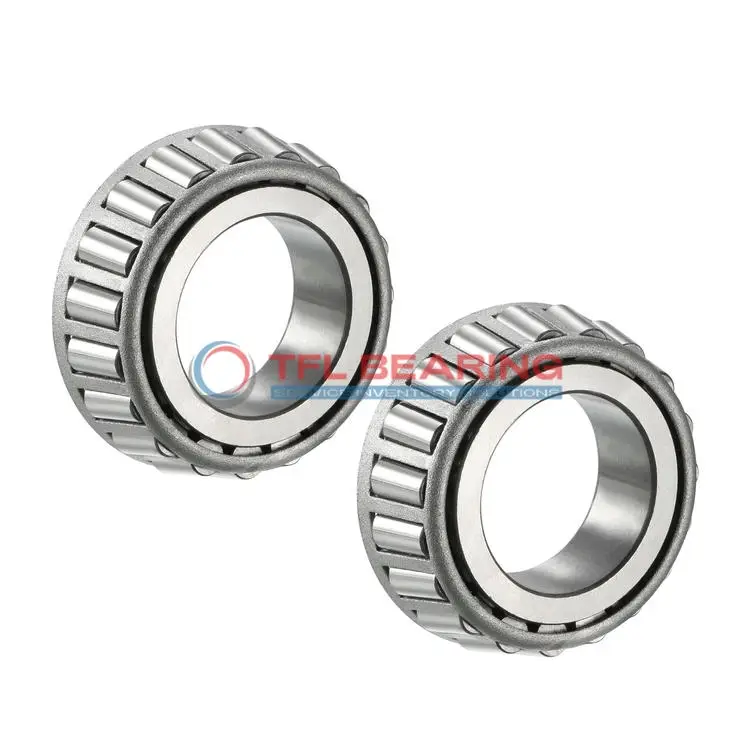

65237 Single Cones (Imperial)

65237 Single Cones (Imperial)

The 65237 single cone is a tapered roller bearing with a 2.375-inch bore, designed for combined loads. Made from durable chrome steel, it handles radial loads up to 54700 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width of 1.75 inches provides stability, making it suitable for heavy-duty applications.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general engineering use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 65237
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 65237-65500 , 65237-65501 , 65237-65537 , 65237-65500-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 65000
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.8"
  • Cone Backface Backing Diameter 3.43"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.37"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54700 lbf
  • Static Radial Load 66700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14200 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 95300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11800 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 24700 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 65237 Bearing for Precision Tasks?

65237 Bearing features a tapered roller design, ideal for handling combined radial and thrust loads efficiently.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.

With a dynamic radial load capacity of 54,700 lbf, 65237 Bearing provides reliable performance under heavy loads.
The steel cage maintains proper roller alignment, enhancing stability and longevity.

65237 Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.
Its standard radial clearance options (C3/C4/C5) offer flexibility for different precision requirements.

Designed for easy integration, 65237 Bearing is compatible with Timken models, simplifying replacements.
The open seal type allows for straightforward maintenance, reducing downtime.

Application

Industrial Uses of 65237 Single Cones
65237 Single Cones are commonly used in heavy machinery, such as construction equipment and mining tools, where their tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 65237 Single Cones Used?
You’ll often find 65237 Single Cones in automotive applications like wheel hubs and differential systems, thanks to their robust chrome steel construction. Their inch sizing makes them a natural fit for North American vehicle designs.

Built for Heavy-Duty Use: 65237 Single Cones
In industrial gearboxes, 65237 Single Cones provide reliable performance under high radial and thrust loads. The steel cage ensures durability, even in continuous operation scenarios.

Automotive vs Aerospace: Applications of 65237 Single Cones
While 65237 Single Cones excel in truck axles and agricultural machinery, they’re also suitable for aerospace ground support equipment. Their ABEC-1 rating balances precision and cost-effectiveness for these diverse uses.

Key Fields for 65237 Single Cones
Railway applications benefit from 65237 Single Cones’ ability to withstand vibration and shock loads. The standard radial clearance option makes them adaptable to various track conditions.
