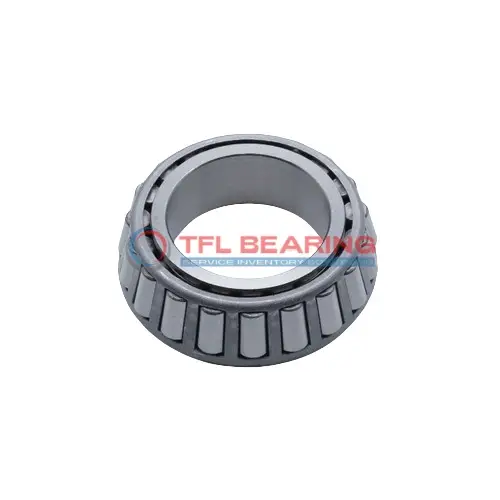

3760 Single Cones (Imperial)

3760 Single Cones (Imperial)

The 3760 single cone is a tapered roller bearing with a 1.75″ bore, designed for combined loads. Made from durable chrome steel, it handles radial loads up to 27500 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing is part of the 3700 series and is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it offers consistent performance for industrial applications. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it’s a safe and robust option for various engineering needs. The cone’s effective center location helps with precise alignment in assemblies.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3760
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 3760-3720
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 3700
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.443"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.28"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.31"
  • Effective Center Location -0.57"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 27500 lbf
  • Static Radial Load 34300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7120 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 47800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4120 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 12400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 3760 Bearing

3760 Bearing is crafted with chrome steel rings and a steel cage, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 27,500 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

3760 Bearing’s standard radial clearance allows for flexibility in different operating conditions.
Its ABEC-1 rating ensures consistent precision and durability.

Application

Key Fields for 3760 Single Cones (Imperial)
3760 Single Cones (Imperial) are commonly used in heavy machinery, such as construction equipment and mining vehicles, where combined loads are frequent. Their tapered roller design ensures smooth operation even under demanding conditions.

In automotive applications, 3760 Single Cones (Imperial) support wheel hubs and differential systems, providing reliable performance over long distances. The chrome steel construction enhances durability, making them suitable for both on-road and off-road use.

For industrial gearboxes, 3760 Single Cones (Imperial) offer excellent radial and thrust load capacity, ensuring efficient power transmission. The open seal type allows for easy lubrication, which is essential for high-speed operations.

In agricultural machinery, 3760 Single Cones (Imperial) handle the rough conditions of tractors and harvesters, where dirt and debris are common. Their robust steel cage ensures long service life despite harsh environments.

Railway applications also benefit from 3760 Single Cones (Imperial), particularly in axle boxes where combined loads are present. The inch sizing makes them compatible with many North American and British rail systems.
