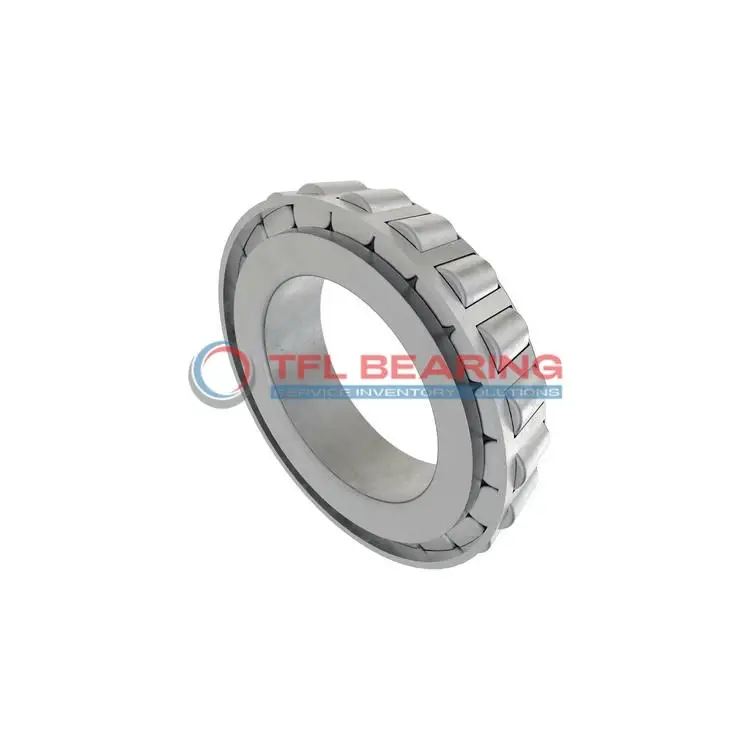

365A Single Cones (Imperial)

365A Single Cones (Imperial)

The 365A single cones are tapered roller bearings with a 1.625-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 22900 lbf and work in temperatures from -30°C to 110°C.

Their single-row construction and open design make them easy to maintain, while the steel cage ensures reliable performance. The bearings are interchangeable with Timken models, offering flexibility for replacements.

Ideal for heavy-duty applications like truck axles or industrial gearboxes, where combined loads are common. They come in standard radial clearance but are also available in C3, C4, or C5 options for specific needs.

Compliant with RoHS and REACH standards, these cones are a practical choice for engineers and maintenance teams. Their robust design balances strength and ease of use in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 365A-362 , 365A-362A , 365A-362AC , 365A-362AX , 365A-362X , 365A-363
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 365
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 39900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10300 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 365A Bearing Engineered for Reliability?

365A Bearing features a tapered roller design, providing strong resistance to combined loads.
Its chrome steel construction ensures durability, even under high dynamic radial loads of 22900 lbf.

The steel cage maintains proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

365A Bearing’s standard radial clearance allows for smooth operation in diverse applications.
Its ABEC-1 rating ensures consistent performance for industrial needs.

Application

Industrial Uses of 365A Bearing
The 365A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 365A Bearing Used?
You’ll often find the 365A Bearing in automotive applications like wheel hubs and differentials, thanks to its reliable performance under radial and thrust loads. The inch sizing makes it a good fit for older or custom-built vehicles.

Built for Heavy-Duty Use: 365A Bearing
In industrial settings, the 365A Bearing excels in conveyor systems and gearboxes, where its steel cage provides stability under high stress. The open seal design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 365A Bearing
While the 365A Bearing is popular in trucks and tractors for its load capacity, it’s also suitable for lighter industrial uses like pumps and compressors. Its versatility makes it a go-to choice for many engineers.

Key Fields for 365A Bearing
The 365A Bearing is ideal for mining equipment, where its robust design withstands harsh environments. Its standard radial clearance options ensure compatibility with various machinery setups.
