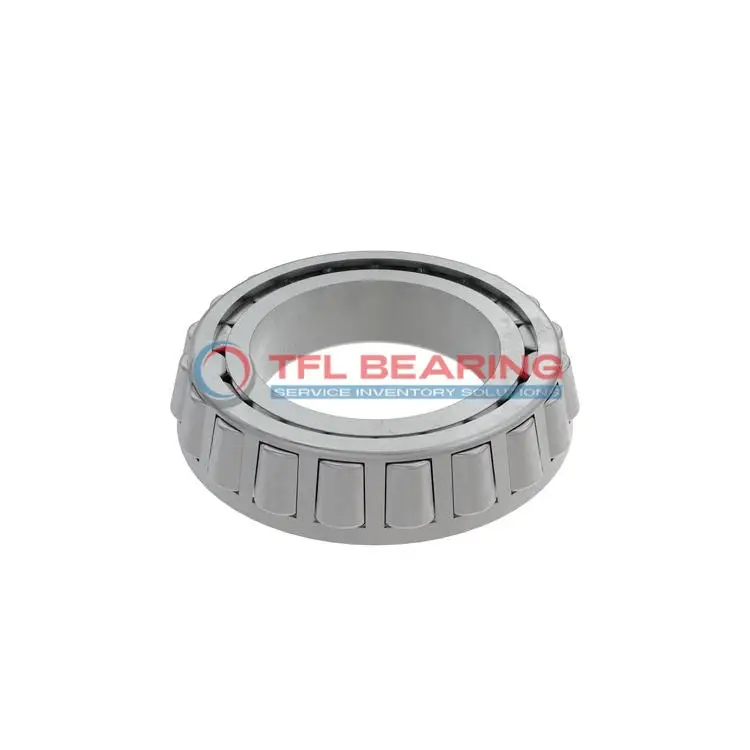

3479 Single Cones (Imperial)

3479 Single Cones (Imperial)

The 3479 single cones are tapered roller bearings with a 1.4375″ bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 23,500 lbf and thrust loads up to 3,820 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C, making them suitable for various conditions.

These cones are part of the 3400 series and are interchangeable with Timken models. Ideal for industrial machinery, gearboxes, or heavy-duty applications where combined loads are common.

Compliant with RoHS and REACH standards, they offer a balance of strength and durability. Available in standard radial clearance, with options for C3, C4, or C5 clearances to suit different needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3479
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 3479-3420 , 3479-3422 , 3479-3426 , 3479-3431 , 3479-3420-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 3400
  • Bore Dia 1.4375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.1721"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.75"
  • Cone Backface Backing Diameter 1.79"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.34"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23500 lbf
  • Static Radial Load 26800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 41000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3820 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10600 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 3479 Bearing

3479 Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 23,500 lbf, ensuring reliable performance in tough conditions.

The tapered roller design of 3479 Bearing provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in various environments.

3479 Bearing’s steel cage keeps rollers aligned, reducing wear and extending service life.
Its standard radial clearance ensures compatibility with a wide range of applications.

Application

Industrial Uses of 3479 Bearing
3479 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The open seal type allows for easy lubrication, extending service life in dusty environments.

Where Is 3479 Bearing Used?
You’ll often find 3479 Bearing in automotive wheel hubs and drivetrains, where its chrome steel construction ensures durability under high stress. Its inch sizing makes it a go-to for older or custom-built machinery in the UK and Commonwealth markets.

Built for Heavy-Duty Use: 3479 Bearing
3479 Bearing excels in conveyor systems and mining equipment, thanks to its robust steel cage and standard radial clearance. The ABEC-1 rating balances precision with cost-effectiveness for industrial applications.

Automotive vs Aerospace: Applications of 3479 Bearing
In automotive settings, 3479 Bearing supports axles and transmissions, while its aerospace uses are limited due to weight constraints. The dynamic thrust rating makes it versatile for ground vehicles needing reliable load management.

Key Fields for 3479 Bearing
3479 Bearing shines in railway applications, particularly in bogie assemblies where tapered rollers handle shifting loads. Its temperature range suits both indoor machinery and outdoor equipment exposed to seasonal changes.
