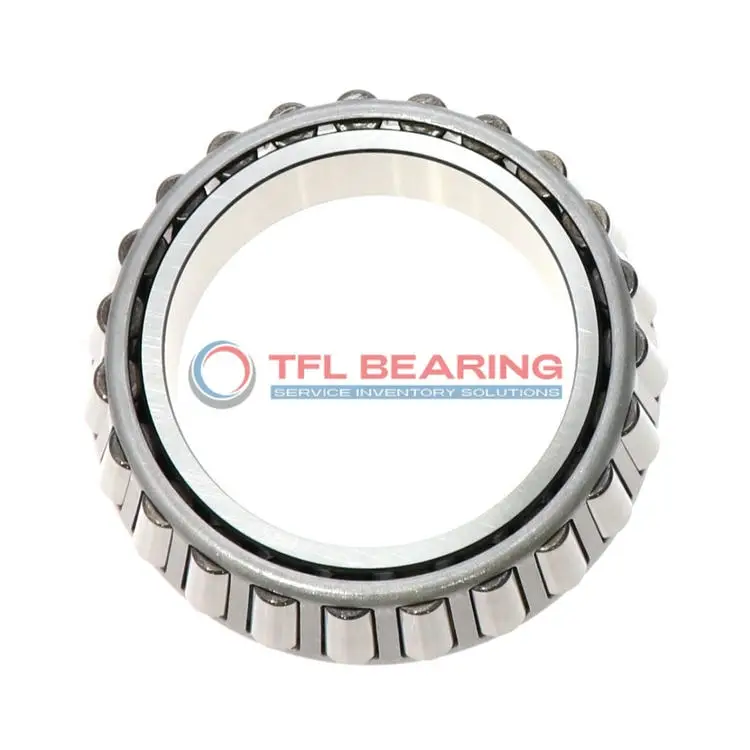

29680 Single Cones (Imperial)

29680 Single Cones (Imperial)

The 29680 is a single-row tapered roller bearing cone with a 2.781″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 24800 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone width is 1″, making it compact yet robust for its size.

This model is interchangeable with Timken bearings, offering flexibility for replacements. It’s ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29680
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 29680-29620 , 29680-29622W , 29680-29624 , 29680-29625WE , 29680-29630
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 29600
  • Bore Dia 2.781"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 3.07"
  • Cone Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 43300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 11200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 29680 Bearing

29680 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of 29680 Bearing ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

29680 Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent precision and durability.

Application

Industrial Uses of 29680 Single Cones
29680 Single Cones are commonly used in heavy machinery, such as construction equipment and mining gear, where their tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending service life in demanding conditions.

Where Is 29680 Single Cones Used?
You’ll often find 29680 Single Cones in agricultural machinery, supporting axle systems that require durability and reliability. Their inch sizing makes them a practical choice for older or imperial-based equipment.

Built for Heavy-Duty Use: 29680 Single Cones
29680 Single Cones excel in industrial gearboxes, where their chrome steel construction withstands high radial and thrust loads. The steel cage ensures stability, even under continuous operation.

Automotive vs Aerospace: Applications of 29680 Single Cones
In automotive applications, 29680 Single Cones are ideal for wheel hubs and differentials, offering smooth performance. While not typically used in aerospace, their robustness suits ground support equipment.

Key Fields for 29680 Single Cones
29680 Single Cones are a reliable choice for rail and marine applications, where their ABEC-1 rating balances precision and cost-effectiveness. The standard radial clearance ensures compatibility with various setups.
