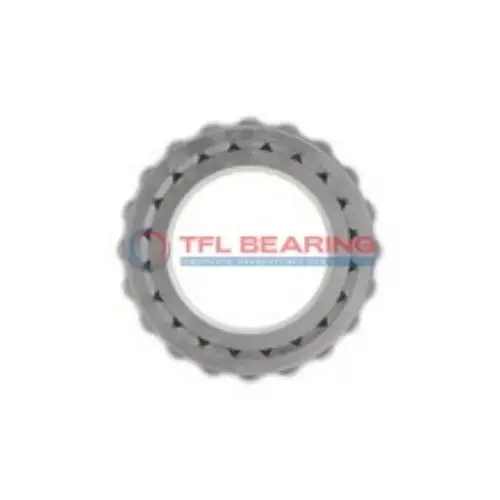

2796 Single Cones (Imperial)

2796 Single Cones (Imperial)

The 2796 single cones are tapered roller bearings designed for combined loads, with a 1.375-inch bore and made from durable chrome steel. They handle dynamic radial loads up to 19500 lbf and operate smoothly in temperatures from -30°C to 110°C.

Their single-row construction and open design make them easy to maintain, while the steel cage ensures reliable performance. The bearings are interchangeable with Timken models, offering flexibility for replacements.

With standard radial clearance and ABEC-1 rating, these cones are suitable for various industrial applications. Ideal for machinery requiring robust performance under combined loads, such as gearboxes or heavy equipment.

Compliant with RoHS and REACH standards, they provide a safe and dependable solution for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2796
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 2796-2720 , 2796-2726 , 2796-2729 , 2796-2729X , 2796-2731 , 2796-2734 , 2796-2735X , 2796-2736 , 2796-2720-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 2700
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.01"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.61"
  • Cone Backface Backing Diameter 1.87"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.32"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19500 lbf
  • Static Radial Load 23000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5060 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 34000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2630 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 8810 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 2796 Bearing Handle Combined Loads?

2796 Bearing is crafted with chrome steel rings, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 19,500 lbf, ensuring dependable performance in varied applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

2796 Bearing’s tapered roller design efficiently distributes stress, enhancing durability.
Standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 2796 Bearing
The 2796 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

Where Is 2796 Bearing Used?
You’ll often find 2796 Bearing in agricultural machinery, such as tractors and harvesters, where its open seal design allows for easy maintenance. The inch sizing makes it a good fit for older or imperial-based systems.

Built for Heavy-Duty Use: 2796 Bearing
In industrial gearboxes, 2796 Bearing provides reliable performance under high radial and thrust loads. Its steel cage adds strength, making it suitable for prolonged use in demanding environments.

Automotive vs Aerospace: Applications of 2796 Bearing
In automotive applications, 2796 Bearing supports wheel hubs and differentials, offering smooth operation. For aerospace, its precision and load capacity make it useful in auxiliary systems.

Perfect Fit for Automation: 2796 Bearing
2796 Bearing works well in automated conveyor systems, where its tapered rollers ensure smooth movement. The standard radial clearance options allow for flexibility in different setups.
