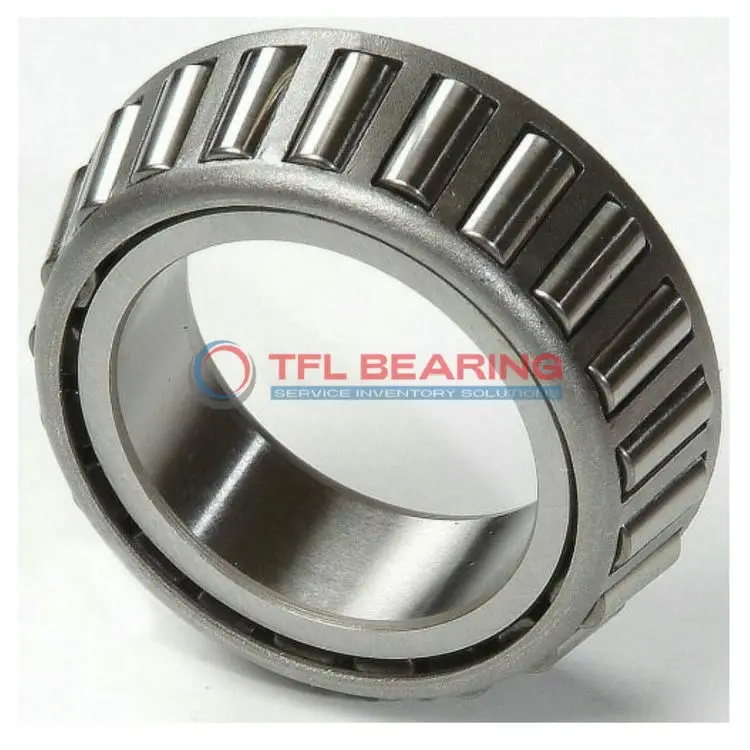

2789A Single Cones (Imperial)

2789A Single Cones (Imperial)

The 2789A is a single-row tapered roller bearing cone with a 1.5625-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 19,500 lbf and static loads up to 23,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone has a width of 1.01 inches and operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability in a compact design. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2789A
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 2789A-2720 , 2789A-2726 , 2789A-2729 , 2789A-2729X , 2789A-2731 , 2789A-2734 , 2789A-2735X , 2789A-2736
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 2700
  • Bore Dia 1.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.01"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.81"
  • Cone Backface Backing Diameter 1.95"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.32"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19500 lbf
  • Static Radial Load 23000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5060 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 34000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2630 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 8810 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 2789A Bearing

2789A Bearing is crafted from chrome steel, offering robust resistance to combined loads with a dynamic radial load capacity of 19,500 lbf.
Its tapered roller design ensures smooth operation and efficient load distribution.

The steel cage maintains roller alignment, reducing friction and extending the bearing’s lifespan.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

2789A Bearing’s standard radial clearance and ABEC-1 rating make it suitable for general industrial applications.
Its open seal type allows for easy inspection and maintenance.

Application

Industrial Uses of 2789A Bearing
2789A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The open seal allows for easy lubrication, extending its lifespan in dusty environments.

Where Is 2789A Bearing Used?
You’ll often find 2789A Bearing in truck wheel hubs and axle systems, thanks to its robust chrome steel construction. Its inch sizing makes it a go-to choice for older or imperial-measurement machinery.

Built for Heavy-Duty Use: 2789A Bearing
2789A Bearing excels in industrial fans and pumps, where its steel cage ensures stability under high radial loads. The standard radial clearance offers flexibility for various operating conditions.

Automotive vs Aerospace: Applications of 2789A Bearing
In automotive settings, 2789A Bearing supports drivetrain components, while its precision makes it suitable for aerospace landing gear systems. The temperature range ensures reliability in extreme conditions.

Perfect Fit for Automation: 2789A Bearing
2789A Bearing works well in conveyor systems and robotic arms, where its tapered rollers manage both radial and thrust loads smoothly. The ABEC-1 rating balances performance and cost for industrial automation.
