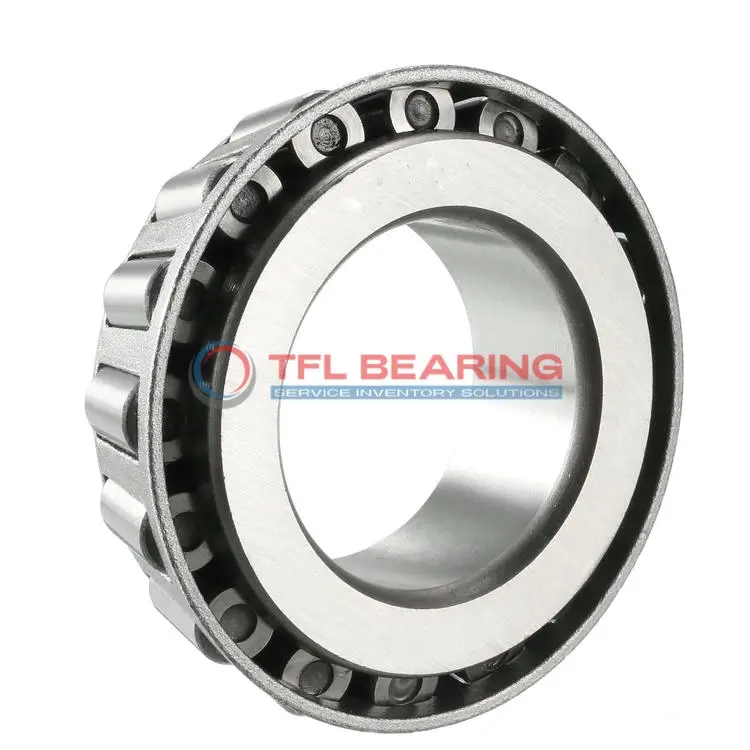

2685 Single Cones (Imperial)

2685 Single Cones (Imperial)

The 2685 single cones are tapered roller bearings with a 0.9375-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 17200 lbf and static loads up to 18400 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C, making them versatile for various conditions.

These cones are interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Compliant with RoHS and REACH standards, they provide a safe and efficient solution for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2685
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 2685-2620 , 2685-2630 , 2685-2631
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 2600
  • Bore Dia 0.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.0013"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.18"
  • Cone Backface Backing Diameter 1.22"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.37"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 17200 lbf
  • Static Radial Load 18400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4470 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 30000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1940 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 7780 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 2685 Single Cones (Imperial)

2685 Single Cones (Imperial) are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 17,200 lbf, ensuring reliable performance in tough conditions.

The tapered roller design of 2685 Single Cones (Imperial) ensures smooth operation and reduced friction.
With a temperature range of -30° to 110°C, they perform well in various environments.

2685 Single Cones (Imperial) feature a steel cage for better alignment and durability.
Their standard radial clearance allows for flexibility in different applications.

Application

Industrial Uses of 2685 Single Cones
2685 Single Cones are commonly used in heavy machinery, such as construction equipment and agricultural gear, where their tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 2685 Single Cones Used?
You’ll often find 2685 Single Cones in automotive applications like wheel hubs and differential systems, thanks to their reliable performance under radial and thrust loads. The inch sizing makes them a good fit for older or imperial-based machinery.

Built for Heavy-Duty Use: 2685 Single Cones
2685 Single Cones excel in industrial settings like conveyor systems, where their steel cage and open design allow for easy maintenance. Their standard radial clearance options provide flexibility for different operational needs.

Automotive vs Industrial: Applications of 2685 Single Cones
In automotive contexts, 2685 Single Cones support wheel bearings and transmissions, while in industrial settings, they’re ideal for gearboxes and pumps. Their ABEC-1 rating ensures consistent performance across various applications.

Perfect Fit for Machinery: 2685 Single Cones
2685 Single Cones are a go-to choice for machinery requiring robust load handling, such as mining equipment or heavy-duty presses. The tapered roller design distributes loads evenly, reducing wear over time.
