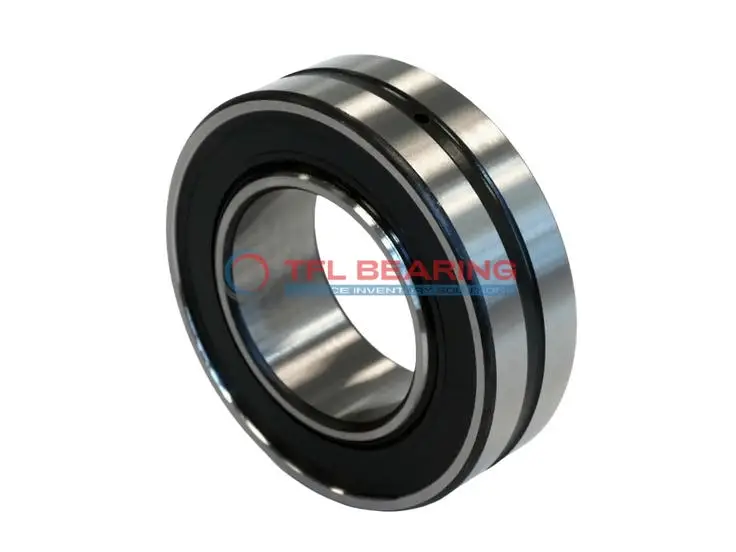

241/1060-2CS6K30/C3HGEA8 Double Row Spherical Roller Bearing

241/1060-2CS6K30/C3HGEA8 Double Row Spherical Roller Bearing

The 241/1060-2CS6K30/C3HGEA8 is a large double-row spherical roller bearing with a 1060mm bore and 1660mm outer diameter, built from robust chrome steel. It handles combined loads up to 7074962 lbf and operates smoothly at speeds up to 20 RPM.

Its double-seal design keeps contaminants out, while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C, making it suitable for harsh environments.

With a tapered bore (1:30) and C3 radial clearance, it’s easy to fit and adjust. This model is interchangeable with SKF bearings, ideal for heavy machinery like crushers or large gearboxes.

Weighing 4805kg, it’s designed for heavy-duty applications where reliability is crucial. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/1060-2CS6K30/C3HGEA8
  • Brand TFL
  • Interchangeable SKF
  • Size 1060 x 1660 x 600 mm
  • Bore Dia 1060 mm
  • Bore Dia Tolerance +0.125mm to 0
  • Outer Dia 1660 mm
  • Outer Dia Tolerance -0.2mm to 0
  • Width 600 mm
  • Width Tolerance -1.25mm to 0
  • Shoulder Dia Of Inner Ring 1176 mm
  • Shoulder/Recess Dia Of Outer Ring 1530 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.12 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 7074962 lbf
  • Static Radial Load 14162963 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 4805 kg

Features

Performance Features of 241/1060-2CS6K30/C3HGEA8 Bearing

241/1060-2CS6K30/C3HGEA8 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 7,074,962 lbf, ensuring reliable performance in heavy-duty applications.
The double seal design protects against contaminants, enhancing durability in harsh environments.
With a maximum speed of 20 rpm, it balances strength and precision for industrial use.

How Is 241/1060-2CS6K30/C3HGEA8 Bearing Engineered for Reliability?

241/1060-2CS6K30/C3HGEA8 Bearing features a tapered bore design (1:30) for secure mounting and alignment.
The steel cage maintains roller positioning, reducing wear and extending operational life.
Its C3 radial clearance allows for thermal expansion, ensuring stable performance under varying temperatures.
Lubrication grooves and holes facilitate consistent oil flow, minimising maintenance needs.

Built for Durability: 241/1060-2CS6K30/C3HGEA8 Bearing

241/1060-2CS6K30/C3HGEA8 Bearing withstands temperatures from -30° to 200°C, suitable for extreme conditions.
The double-row spherical roller design accommodates misalignment while maintaining smooth operation.
With a static radial load capacity of 14,162,963 lbf, it handles heavy industrial demands effortlessly.
Its robust construction and double seals ensure long service life even in dusty or humid environments.

Steel vs Ceramic Bearings: Strengths of 241/1060-2CS6K30/C3HGEA8 Bearing

241/1060-2CS6K30/C3HGEA8 Bearing uses chrome steel for both rings and rollers, providing excellent strength-to-weight ratio.
The steel cage offers reliable performance under high loads compared to alternative materials.
Its 600 mm width and 1060 mm bore diameter make it ideal for large-scale industrial machinery.
The combination of material quality and precision engineering ensures consistent performance over time.

Application

Industrial Uses of 241/1060-2CS6K30/C3HGEA8 Bearing
241/1060-2CS6K30/C3HGEA8 Bearing is commonly used in heavy machinery, such as mining equipment and large-scale industrial fans, where its double-row spherical design handles combined loads effectively. The tapered bore ensures a secure fit, reducing slippage during operation.

Where Is 241/1060-2CS6K30/C3HGEA8 Bearing Used?
You’ll often find 241/1060-2CS6K30/C3HGEA8 Bearing in wind turbines, where its high load capacity and durability are essential for long-term performance. The double seals also help protect against contaminants in harsh environments.

Built for Heavy-Duty Use: 241/1060-2CS6K30/C3HGEA8 Bearing
241/1060-2CS6K30/C3HGEA8 Bearing excels in paper mills and steel plants, where its chrome steel construction withstands extreme temperatures and heavy loads. The C3 radial clearance allows for thermal expansion under high-stress conditions.

Automotive vs Aerospace: Applications of 241/1060-2CS6K30/C3HGEA8 Bearing
While 241/1060-2CS6K30/C3HGEA8 Bearing is too large for most automotive uses, it’s ideal for aerospace ground support equipment, like aircraft tugs. Its robust design ensures reliability in demanding applications.
