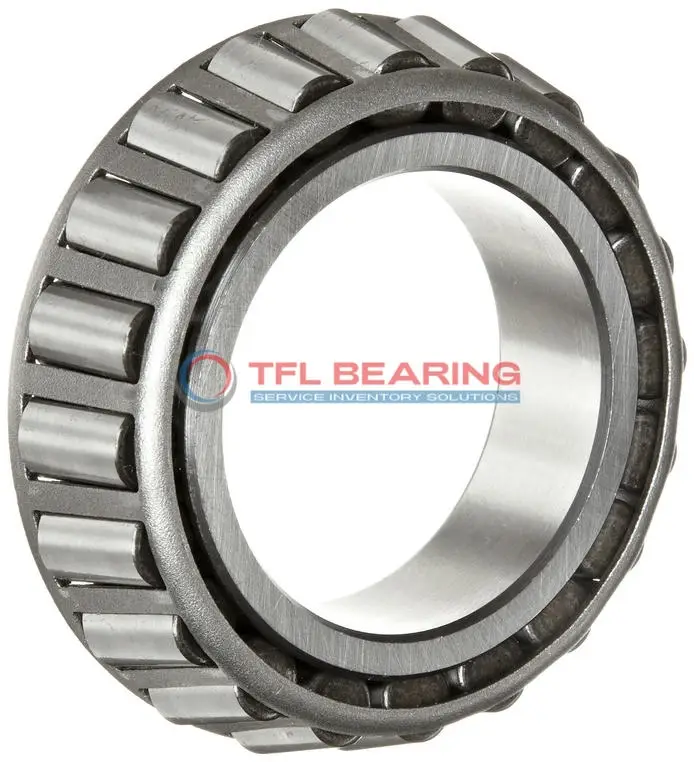

18200 Single Cones (Imperial)

18200 Single Cones (Imperial)

The 18200 single cone is a tapered roller bearing with a 2-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 13700 lbf and works in temperatures from -30°C to 110°C.

Its open design and steel cage ensure smooth operation, while the standard radial clearance offers flexibility for different applications. The cone width of 0.719″ fits snugly in most setups.

This model is interchangeable with Timken bearings, making replacements straightforward. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Compliant with RoHS and REACH standards, it’s a reliable choice for engineers and maintenance teams. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 18200
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 18200-18335E , 18200-18335X , 18200-18337 , 18200-18352
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 18000
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.719"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location 0.08"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13700 lbf
  • Static Radial Load 14400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3560 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 23900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3470 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 6200 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

What Makes 18200 Single Cones Suitable for Heavy-Duty Applications?

18200 Single Cones are crafted from chrome steel, offering strong resistance to combined loads.
Their dynamic radial load capacity reaches 13,700 lbf, ensuring reliable performance in tough conditions.

The tapered roller design enhances stability, making them ideal for high-stress environments.
With a temperature range of -30° to 110°C, they perform well in various climates.

The steel cage maintains proper roller alignment, reducing wear and extending service life.
Their standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of 18200 Bearing
The 18200 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial gearboxes, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 18200 Bearing Used?
You’ll often find the 18200 Bearing in automotive applications like wheel hubs and differential systems, thanks to its robust load capacity. The inch sizing makes it a good fit for older or imperial-based machinery.

Built for Heavy-Duty Use: 18200 Bearing
This bearing excels in construction equipment, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 18200 Bearing
In automotive settings, the 18200 Bearing supports high radial loads in drivetrains, while its precision makes it suitable for certain aerospace components. The temperature range ensures performance in varied conditions.

Key Fields for 18200 Bearing
The 18200 Bearing is ideal for agricultural machinery, where its tapered rollers manage uneven loads smoothly. Its standard radial clearance offers flexibility for different operational needs.
