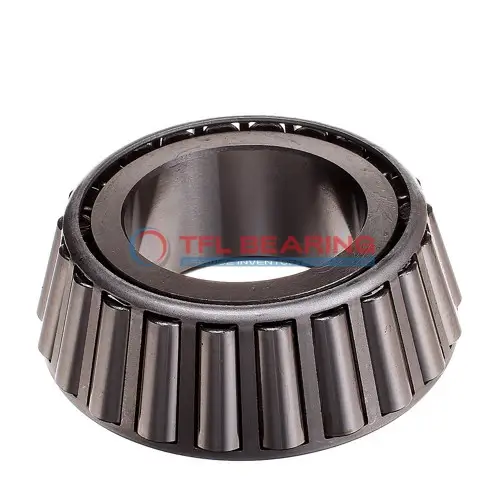

14117A Single Cones (Imperial)

14117A Single Cones (Imperial)

The 14117A is a single-row tapered roller bearing with a 1.1811-inch bore, designed for combined loads. Made from chrome steel, it handles dynamic radial loads up to 12300 lbf and operates smoothly in temperatures from -30°C to 110°C.
Its open design and steel cage ensure durability, while the standard radial clearance makes it versatile for various applications. The bearing is interchangeable with Timken models, offering reliable replacement options.
With an ABEC-1 rating, it balances precision and performance for industrial use. Ideal for heavy-duty machinery or automotive systems where combined loads are common.
Compliant with RoHS and REACH standards, it’s a safe and robust choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 14117A-14272 , 14117A-14273 , 14117A-14274 , 14117A-14274A , 14117A-14276 , 14117A-14277 , 14117A-14282 , 14117A-14283 , 14117A-14284 , 14117A-14299 , 14117A-14276-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 14000
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 1.61"
  • Cone Backface Backing Diameter 1.73"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 21400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5540 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 14117A Bearing Engineered for Reliability?

14117A Bearing is crafted from chrome steel, offering robust resistance to combined radial and thrust loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring dependable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Designed for standard radial clearance, 14117A Bearing suits diverse applications.
Its tapered roller construction ensures smooth operation under heavy loads.

Application

Industrial Uses of 14117A Bearing
14117A Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 14117A Bearing Used?
You’ll often find 14117A Bearing in agricultural machinery, supporting components like gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for older or imperial-based systems.

Built for Heavy-Duty Use: 14117A Bearing
14117A Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds stability during high-speed operations.

Automotive vs Aerospace: Applications of 14117A Bearing
In automotive applications, 14117A Bearing is ideal for truck axles and drivetrains, offering reliable performance under heavy loads. For aerospace, it’s less common but can be found in ground support equipment.

Perfect Fit for Automation: 14117A Bearing
14117A Bearing works well in conveyor systems and automated production lines, where its tapered rollers manage radial and thrust loads smoothly. The standard radial clearance ensures consistent operation.
