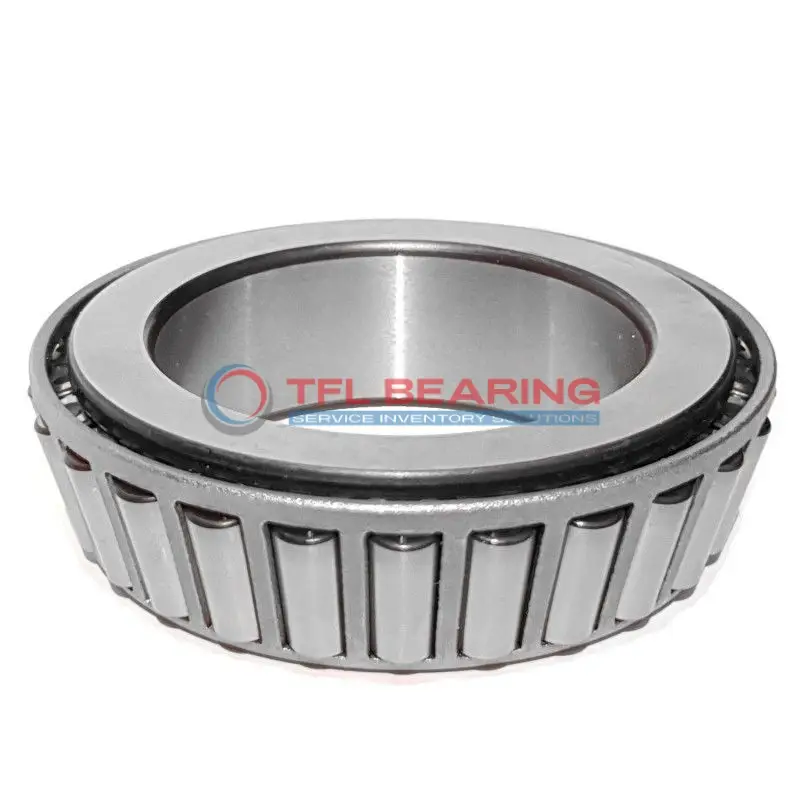

09081 Single Cones (Imperial)

09081 Single Cones (Imperial)

The 09081 single cone is a tapered roller bearing with a 0.812″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 9630 lbf and works in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width is 0.848″, making it compact yet robust for its size.

This model is interchangeable with Timken bearings, offering a practical replacement option. It’s suitable for applications like automotive axles or industrial gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 09081
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 09081-09194 , 09081-09195 , 09081-09196 , 09081-09201 , 09081-09195AB
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 9000
  • Bore Dia 0.812"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.848"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1"
  • Cone Backface Backing Diameter 1.08"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.36"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 9630 lbf
  • Static Radial Load 9100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2500 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 16800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1140 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 4350 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 09081 Bearing

09081 Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 9630 lbf, ensuring reliable performance in various applications.

The tapered roller design of 09081 Bearing provides smooth operation under heavy loads.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

09081 Bearing’s steel cage keeps rollers aligned, reducing wear and extending service life.
Its standard radial clearance ensures compatibility with different machinery requirements.

Application

Common Applications of 09081 Bearing
09081 Bearing is widely used in industrial machinery, especially in conveyor systems and gearboxes where combined loads are common. Its tapered roller design ensures smooth operation even under heavy radial and thrust forces.

In automotive applications, 09081 Bearing fits well in wheel hubs and differential systems, providing reliable performance. The inch sizing makes it compatible with many North American vehicle models.

For agricultural equipment, 09081 Bearing’s chrome steel construction handles tough conditions in tractors and harvesters. The open seal design allows for easy lubrication, extending its service life.

Where Is 09081 Bearing Used?
You’ll often find 09081 Bearing in construction equipment like bulldozers and cranes, where durability is key. Its steel cage offers extra strength for high-impact environments.

In mining machinery, 09081 Bearing supports heavy loads in crushers and drills. The standard radial clearance ensures consistent performance even in dusty conditions.

Built for Heavy-Duty Use: 09081 Bearing
09081 Bearing excels in railway applications, particularly in axle boxes where combined loads are frequent. Its tapered rollers distribute stress evenly, reducing wear.

For marine equipment, 09081 Bearing withstands harsh saltwater conditions in propeller shafts. The chrome steel rings resist corrosion, ensuring long-term reliability.

Automotive vs Industrial: Applications of 09081 Bearing
In trucks, 09081 Bearing handles heavy loads in drivetrains, while in industrial fans, it manages high-speed rotations. Its versatility makes it a go-to choice for both sectors.

The bearing’s inch measurements suit older machinery, while its robust design meets modern demands. Whether in farming or manufacturing, it delivers consistent performance.
