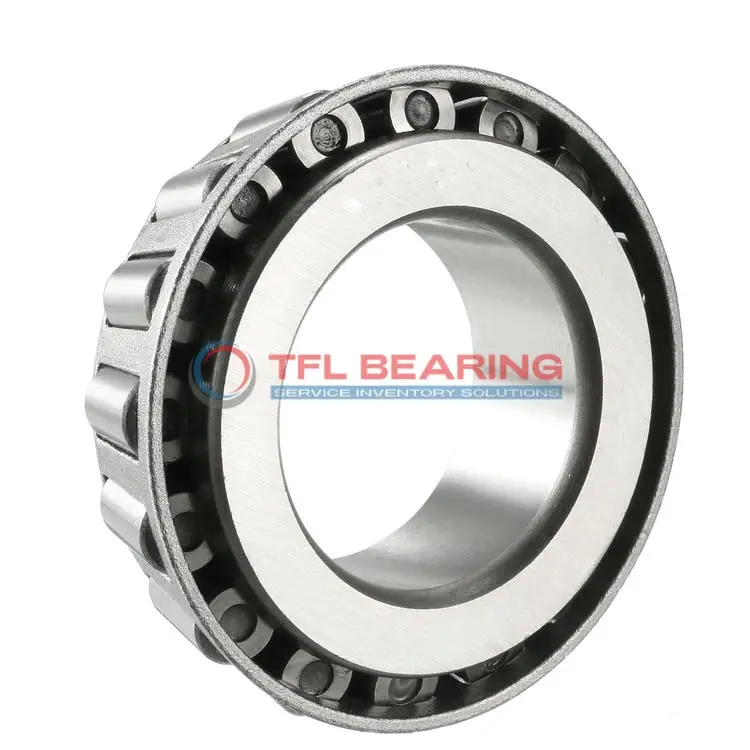

07099 Single Cones (Imperial)

07099 Single Cones (Imperial)

The 07099 is a single-row tapered roller bearing cone with a 0.995″ bore, made from durable chrome steel. It handles combined loads up to 6540 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone has standard radial clearance, with options for C3, C4, or C5 available.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like wheel hubs or gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and versatility for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07099
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 07099-07204
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 7000
  • Bore Dia 0.995"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.24"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 2950 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 07099 Single Cones

07099 Single Cones are crafted from chrome steel, offering robust resistance to combined loads.
Their dynamic radial load capacity reaches 6540 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, they perform consistently in varied environments.

Why Choose 07099 Single Cones for Precision Tasks?

07099 Single Cones feature a tapered roller design, providing precise load distribution and smooth operation.
The ABEC-1 rating ensures consistent performance for applications requiring moderate precision.
Their standard radial clearance (with options for C3/C4/C5) allows flexibility in different setups.
Effective center location at -0.11″ enhances stability in mounted assemblies.

Built for Reliability: 07099 Single Cones

07099 Single Cones withstand heavy radial and thrust loads, with a static radial load of 6650 lbf.
The chrome steel construction resists wear, ensuring durability in industrial applications.
Open seal design simplifies maintenance while accommodating various lubrication methods.
Compatible with Timken bearings, they offer interchangeability for easier replacements.

Steel vs Ceramic Bearings: Strengths of 07099 Single Cones

07099 Single Cones use chrome steel for rings and rollers, balancing cost and performance.
Their dynamic thrust rating (Ca90) of 1170 lbf makes them suitable for combined load scenarios.
Steel cages provide reliable roller guidance without the brittleness of ceramic alternatives.
Standard inch measurements ensure compatibility with imperial system machinery.

Application

Industrial Uses of 07099 Single Cones
07099 Single Cones are commonly used in heavy machinery, such as construction equipment and agricultural gear, where their tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 07099 Single Cones Used?
You’ll often find 07099 Single Cones in automotive applications like wheel hubs and differential systems, thanks to their reliable performance under radial and thrust loads. The inch sizing makes them a good fit for older or custom-built vehicles.

Built for Heavy-Duty Use: 07099 Single Cones
These cones excel in conveyor systems and industrial gearboxes, where their open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making them suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 07099 Single Cones
In automotive settings, 07099 Single Cones support wheel bearings and transmissions, while in aerospace, they’re used in landing gear assemblies. Their ABEC-1 rating ensures consistent performance across different industries.

Key Fields for 07099 Single Cones
07099 Single Cones are ideal for mining equipment, where their robust design withstands harsh environments. The standard radial clearance option provides flexibility for various operational needs.
