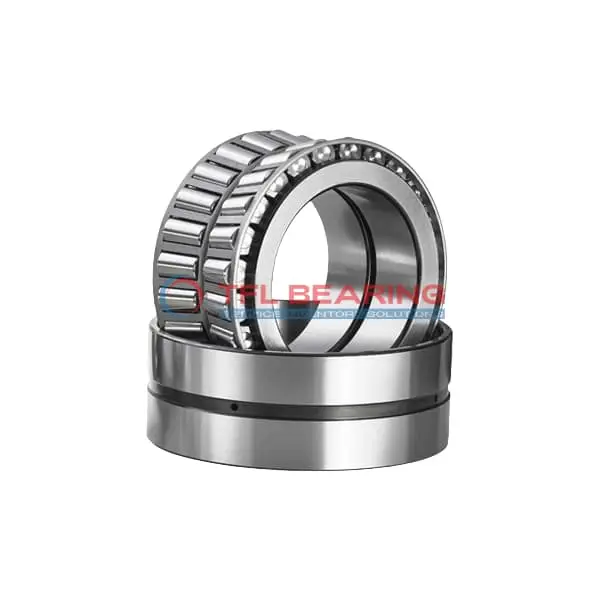

05070XS-05180D TDO (Two-Row Double-Outer Race) (Imperial)

05070XS-05180D TDO (Two-Row Double-Outer Race) (Imperial)

The 05070XS-05180D is a double-row tapered roller bearing with a 0.7082″ bore and 1.8104″ outer diameter, made from sturdy chrome steel. It handles combined loads up to 10500 lbf and is designed for smooth operation in various conditions.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing works well in temperatures from -30°C to 110°C, making it versatile for different environments.

This model features a standard radial clearance and is ABEC-1 rated, suitable for general precision applications. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.59 lb, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 05070XS-05180D
  • Brand TFL
  • Size 0.7082" x 1.8104" x 0.5662"
  • Bore Dia 0.7082"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.8104"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 0.9926"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.5662"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.2499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.02"
  • Cup Frontface Backing Diameter 1.67"
  • Cage Cone Backface Clearance -0.01"
  • Dynamic Radial Load 10500 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 05070XS
  • Cup Part Number 05180D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 1560 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 952 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 2710 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 lb

Features

Performance Features of 05070XS-05180D Bearing

05070XS-05180D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 10,500 lbf, ensuring reliable performance in demanding conditions.
The double-row tapered roller design distributes loads evenly, enhancing durability and stability.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 05070XS-05180D Bearing Engineered for Reliability?

05070XS-05180D Bearing features a steel cage that maintains roller alignment, reducing friction and wear.
The standard radial clearance allows for smooth operation, even under heavy loads.
Its double-row construction provides increased load capacity and longer service life.
The open design simplifies lubrication, ensuring consistent performance over time.

Built for Durability: 05070XS-05180D Bearing

05070XS-05180D Bearing’s chrome steel construction resists wear, making it suitable for heavy-duty applications.
The tapered roller design efficiently handles both radial and thrust loads.
With a dynamic radial rating of 2,710 lbf for two rows, it offers reliable performance.
Its standard ABEC-1 rating ensures consistent precision in various industrial uses.

Application

Industrial Uses of 05070XS-05180D Bearing
05070XS-05180D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its double-row design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 05070XS-05180D Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a good fit for North American vehicle models.

For industrial automation, 05070XS-05180D Bearing works well in conveyor systems and robotic arms, where precision and load capacity are key. The open seal design allows for easy lubrication, extending its service life.

Where Is 05070XS-05180D Bearing Used?
05070XS-05180D Bearing finds its place in mining equipment, where its tapered roller design manages heavy radial and thrust loads. The steel cage adds stability during high-stress operations.

In manufacturing plants, 05070XS-05180D Bearing is often seen in gearboxes and power transmission systems. Its standard radial clearance ensures smooth operation across a range of temperatures.

Built for Heavy-Duty Use: 05070XS-05180D Bearing
05070XS-05180D Bearing excels in forestry machinery, handling the demands of uneven loads and harsh environments. The double-row setup distributes stress evenly, reducing wear.

For material handling systems, 05070XS-05180D Bearing offers consistent performance in pulley and drum applications. Its ABEC-1 rating balances precision and cost-effectiveness for industrial use.

Automotive vs Aerospace: Applications of 05070XS-05180D Bearing
In automotive settings, 05070XS-05180D Bearing is ideal for axle systems, where its combined load capacity shines. The inch measurements align well with standard automotive parts.

For aerospace ground support equipment, 05070XS-05180D Bearing provides reliable performance in load-bearing mechanisms. Its temperature range suits both indoor and outdoor operations.
