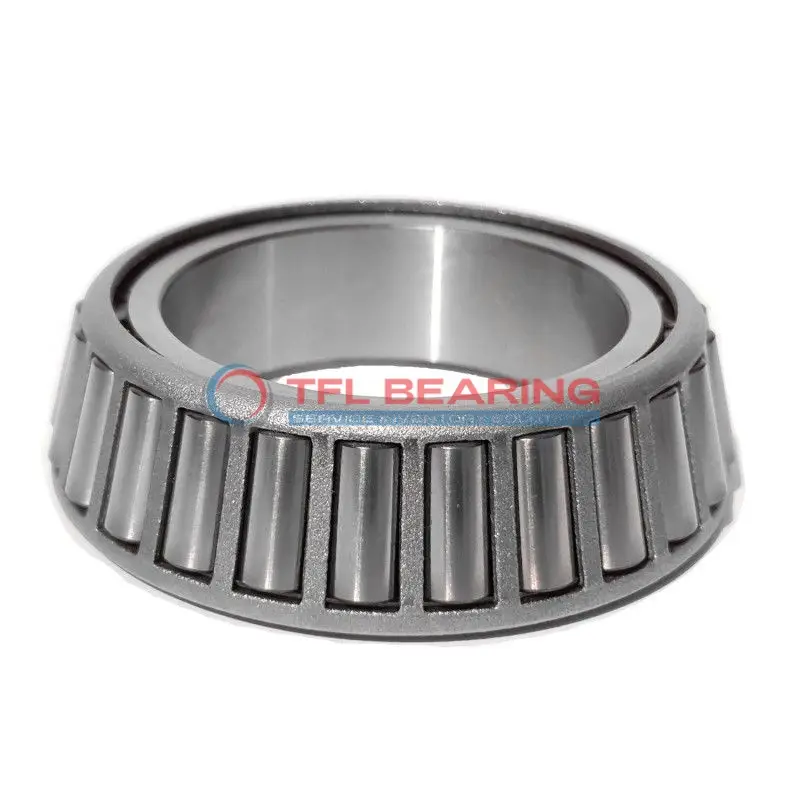

02476X Single Cones (Imperial)

02476X Single Cones (Imperial)

The 02476X is a single-row tapered roller bearing cone with a 1.2593-inch bore, made from durable chrome steel. It handles combined loads with a dynamic radial capacity of 14300 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone has standard radial clearance, with options for C3, C4, or C5 fits depending on your needs.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like vehicle axles or heavy machinery where combined loads are common.

Compliant with RoHS and REACH standards, it meets industry safety requirements while offering robust performance. The ABEC-1 rating ensures consistent quality for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02476X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 02476X-02419
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 2400
  • Bore Dia 1.2593"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.8071"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.56"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 25000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 6470 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 02476X Bearing

02476X Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

02476X Bearing’s standard radial clearance options provide flexibility for different needs.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of 02476X Bearing
02476X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in rugged environments.

What Makes 02476X Bearing a Preferred Choice?
In automotive applications, 02476X Bearing fits well in wheel hubs and differential systems, thanks to its precise inch measurements and reliable performance. Its open design allows for easy lubrication, extending service life.

Built for Heavy-Duty Use: 02476X Bearing
02476X Bearing excels in conveyor systems and mining equipment, where its high dynamic radial load capacity keeps operations smooth. The steel cage adds strength, making it suitable for continuous use.

Automotive vs Aerospace: Applications of 02476X Bearing
While 02476X Bearing is popular in truck axles and off-road vehicles, its precision also suits aerospace components like landing gear. The ABEC-1 rating ensures consistent performance across industries.

Perfect Fit for Automation: 02476X Bearing
02476X Bearing works seamlessly in robotic arms and assembly lines, where its tapered rollers provide stability under varying loads. The standard radial clearance offers flexibility for different automation needs.
