What Are Coated Insulated Bearings and How Do They Work

Coated insulated bearings have a special ceramic layer. This layer gives strong electrical insulation between the bearing rings and other parts. The insulation stops electrical current from going through the bearings. In industrial motors, electrical current can damage bearings. This damage causes up to 80% of bearing failures. It happens a lot in systems with variable frequency drives. The ceramic coating works like a barrier. It stops current flow and keeps problems like fluting and lubricant breakdown away. Coated insulated bearings help stop electrical damage. They help machines run longer and more reliably.

Key Takeaways

• Coated insulated bearings have a special layer made of ceramic or polymer. This layer stops electrical currents and keeps machines safe from harm. These bearings stop problems like pitting, fluting, and oil breaking down. They help machines last longer and work better. You can put them in old machines without making changes. They are a cheap way to cut down on repairs and machine stops. Insulated bearings work best in electric motors, generators, and wind turbines. They are also good for other machines that get stray electrical currents. Taking care of them is important. You should clean, oil, and check them often. This keeps insulated bearings working well and helps them last longer.

Coated Insulated Bearings Overview

What Are Coated Insulated Bearings

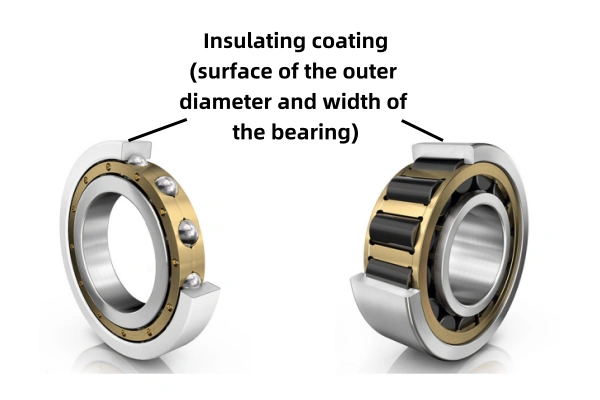

Coated insulated bearings are made to stop electrical current. Manufacturers put a strong insulating layer on the rings. This layer acts like a wall that blocks electricity. The insulation is usually 50 to 100 micrometers thick. The exact thickness depends on the brand and product.

The main parts of coated insulated bearings are:

• A regular bearing with rings and rolling pieces.
• An insulating layer, often ceramic or special polymer, sprayed on the rings.
• Sometimes, insulated housings made from materials that do not conduct electricity.

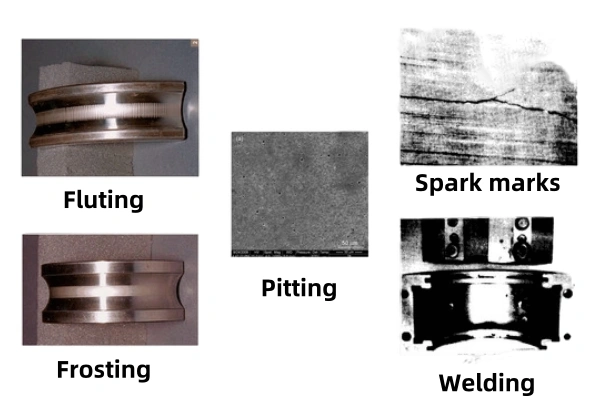

Coated insulated bearings help stop damage like corrosion pits, melted spots, and electric wear. These problems happen a lot in motors and generators with variable frequency drives.

Here is a table with common coating materials and what they do:

Regular bearings do not have this special layer. They can get damaged by electricity, especially when there is a lot of current. Coated insulated bearings are a good way to protect machines from these problems.

How They Work

These bearings use their special coating to block current. The coating has high resistance to electricity. It keeps stray current from going through the bearing. If current tries to pass, the coating stops it. This helps prevent pitting, fluting, and other damage.

The idea behind insulation is simple:

• The layer covers the ring surfaces.
• It can block up to 1000 volts DC or more.
• The coating stays strong even if it is wet or hot.

Electrically insulated bearings give both mechanical strength and electrical safety. The insulation is built into the bearing, so you do not need extra parts.

Other ways to insulate machines use extra parts or changes to the design. These can cost more and be harder to use. Coated insulated bearings are small, simple, and save money. They work just as well as regular bearings.

There are different types of these bearings:

• Coated insulated bearings with ceramic or polymer on the rings.
• Hybrid insulated bearings with ceramic rolling parts and steel rings.
• Electrically insulated bearings (sometimes called INSOCOAT) with aluminum oxide coatings.

All these types have the same job: to keep electrical current from hurting the bearing or machine. Insulated bearings help machines last longer and work better in motors, generators, and other equipment.

Construction and Materials

Coating Types

Manufacturers use different coatings to insulate bearings. Each coating helps in its own way for certain jobs. The table below lists the most common coatings for deep groove ball bearings and other types:

Ceramic coatings are used a lot for deep groove ball bearings in places with high voltage. These coatings make a strong wall that stops stray currents. This helps keep motors, generators, and wind turbines safe from electric damage and micro-welding.

Application Methods

Manufacturers use many ways to put insulation coatings on bearings. These ways help the coating stick well and last longer.

• Gaseous state processes use PVD and PACVD to make thin, even coatings.
• Solution state processes use chemical and electrochemical ways like electroless deposition and electroplating to add metal layers.
• Molten state processes use plasma spraying and laser cladding to put on thick ceramic coatings.
• Spray coating puts liquid or powder coatings on deep groove ball bearings, then cures them.

A polymer coating is often sprayed on using static electricity. The bearing is grounded, and the coating is baked in an oven to cure. This makes a tough, insulating layer that keeps deep groove ball bearings safe from electrical harm.

Key Features

Coated insulated bearings have special features that regular bearings do not.

• The insulating layer on deep groove ball bearings can be up to 100 micrometers thick and can handle up to 1000 V DC.
• The coating process makes sure the layer is even and sticks well, even if it is humid.
• These bearings stop electric corrosion, so they are more reliable than regular bearings.
• Insulated bearings are a cheaper way to block shaft currents than other methods.
• Deep groove ball bearings with coatings are the same size and have the same specs as regular ones, so you can swap them easily.

Deep groove ball bearings with insulation work best in motors with high power or voltage. They help protect machines and make them last longer.

Current Insulating Bearings Benefits

Electrical Damage Prevention

Current insulating bearings help stop electrical damage in machines. They have a special layer that blocks electrical currents. This layer is made from aluminum oxide or ceramic. It covers the bearing rings and stops stray currents. When electricity tries to pass, the insulation blocks it. This keeps sparks, melted metal, and surface damage away.

• The insulating layer sticks well to the bearing and stays strong in tough places.
• Sealing layers keep water out, so the insulation works better.
• The insulation blocks high-frequency currents that can cause pitting and fluting.
• The layer also protects the grease, rolling parts, and raceways from electrical damage.
• By stopping current, these bearings prevent EDM damage.

NSK tests show regular bearings get damaged by high-frequency currents. The rings of normal bearings show arcing and wear. But coated insulated bearings do not show this damage in the same tests. This means current insulating bearings almost always stop electrical arcing in motors and generators.

Extended Service Life

Insulated bearings help machines last longer. The insulation blocks currents that would hurt the bearing surfaces. This keeps the rolling parts and raceways in good shape. When bearings avoid pitting and fluting, they run smoother and last longer.

• The insulating layer keeps the grease safe from electrical harm.

• The coating lowers the risk of overheating, so the lubricant lasts longer.

• Less risk of damage means less vibration and noise.

• Machines with insulated bearings stop less often and have less downtime.

Hybrid coated insulated bearings use ceramic balls as rolling parts. These ceramic balls block electricity and lower friction. This helps stop electrical damage and makes the bearing last longer. The steel rings stay strong, so the bearing can handle the same loads and speeds as a normal bearing.

Comparison with Standard Bearings

Current insulating bearings have many benefits over standard bearings. The big difference is the insulating layer that blocks electrical currents.

Coated insulated bearings are the same size and strength as standard bearings. They fit into machines without any changes. The insulation gives high resistance, often above 200 MΩ, and works well even in wet or harsh places. Special coatings like J20AB or J20AA give different insulation levels for different needs. These features make insulated bearings the best choice for motors, generators, wind turbines, and other equipment where electrical damage can happen.

Insulated bearings are a smart and reliable way to stop electrical damage, lower maintenance, and help machines work better.

Insulated Bearings Applications

Industry Use Cases

Insulated bearings are important in many industries that use electricity. These bearings protect machines from electrical harm and help them work well. Many businesses use insulated bearings to fix problems from stray currents.

• Industrial electric motors

• Traction motors

• Generators

• Oil rigs

• Metallurgy

• Mining

• Machine tools

• Medical equipment

• Paper production

• Pumps and compressors

• Quarrying, mining, and construction

• Railways

• Semiconductors

• Steel and metals

• Wind power

Every industry has its own problems with electrical equipment. Insulated bearings help stop expensive breakdowns and machine failures. For example, wind power plants use them to keep turbines safe from current leaks. Railways and mining need these bearings to protect big machines. In hospitals, insulated bearings help medical tools stay correct and trustworthy.

Insulated bearings are a smart choice for companies that want to guard their machines from electricity. They help machines last longer and lower repair costs.

Typical Machinery

Many machines need insulated bearings, especially those that use electricity. Electric motors can get damaged by electricity. This damage can make them noisy, hot, or wear out fast. Insulated bearings have special coatings that stop electricity from going through. This keeps machines in factories, HVAC systems, trains, and wind turbines safe.

Generators and pumps also use insulated bearings to avoid electrical trouble. Deep groove ball bearings with insulation are used in fast machines. Compressors, paper machines, and machine tools all need insulated bearings to keep working without stopping. These bearings help avoid repairs, cut down on stops, and save energy.

Insulated bearings are needed for any machine that faces electrical currents. They give strong protection from electrical harm and help machines last longer in tough places.

Selecting Electrically Insulated Bearings

Selection Tips

Picking the right insulated bearings is important. You need to think about where and how you will use them. The machine’s job, the place it works, and your budget all matter. Insulated bearings are best for electric motors and generators. They also work well in machines with variable frequency drives. These machines often have stray currents that can hurt regular bearings.

• Think about the place and job. Pick bearings that can handle the heat, wetness, and weight.
• For tough or fast jobs, ceramic coatings last longer and insulate better.
• Check how much voltage the bearing can block. Some, like aluminum oxide coatings, stop up to 3,000 volts.
• Hybrid ceramic bearings are good for fast, hot, or wet places.
• If you want to save money, PPS coatings work well for easy jobs.

There are different kinds of insulated bearings for different needs. Ceramic coatings help in hard jobs and stop electricity. Hybrid ceramic bearings have steel rings and ceramic balls for more strength. Insulated bearing sleeves are simple and cheap for light jobs.

Insulated bearings stop electrical damage. They help machines last longer and break down less. They also keep noise and shaking low.

Here is a table that shows which bearings are best for each job:

Maintenance Advice

Taking care of insulated bearings helps them last longer. Good care stops problems and keeps the insulation strong.

1. Lubrication: Use the right oil or grease. Add more when needed. This lowers friction and stops early damage.
2. Cleaning: Wipe off dirt and dust from the bearings and their covers. Clean parts last longer and keep the insulation safe.
3. Inspection: Look at the bearings often for wear, rust, or cracks. Change any bad bearings right away.
4. Handling and installation: Follow the maker’s directions. Use the right tools so you do not hurt the insulation.
5. Storage: Keep bearings in their boxes. Store them in a dry, clean place away from heat and water.
6. Monitoring: Listen and feel for changes in noise, shaking, or heat. These can mean there is a problem.
7. Maintenance program: Make a plan to clean, oil, and check the bearings often. This helps stop breakdowns and makes bearings last longer.

New insulated coatings are better at stopping water and heat. This means new bearings keep working even in hard places.

Most failures happen from electrical damage, bad setup, or not enough oil. You can stop these by installing bearings the right way, using the right oil, and keeping them clean. Insulated bearings protect machines from electrical harm and help them work well for a long time.

Insulated bearings help keep machines safe from electrical harm. Many industries use them because they stop pitting and corrosion. They also help prevent machines from breaking too soon. These bearings make machines last longer and cut down on expensive stops. People say insulated bearings work well for a long time, even in tough places. They are reliable and help machines run smoothly. Insulated bearings also mean you do not need to fix machines as often. They help everything work better. If you need help picking insulated bearings, TFL Bearings can help you choose the right one for your job.

Insulated bearings protect machines, make them more reliable, and help them last longer.

FAQ

What makes coated insulated bearings different from regular bearings?

Coated insulated bearings have a special layer that stops electricity. Regular bearings do not have this layer at all. The coating helps protect machines from getting electrical damage.

What types of coatings do manufacturers use on insulated bearings?

Manufacturers use ceramic, polymer, and metallic coatings. Each coating gives a different amount of insulation and strength. Ceramic coatings usually give the best protection.

What problems can coated insulated bearings help prevent?

These bearings help stop electrical pitting, fluting, and oil breakdown. They also lower the chance of bearings failing early in motors and generators.

What machines benefit most from insulated bearings?

Electric motors, generators, wind turbines, and pumps benefit most. These machines often have electrical currents that can hurt regular bearings.

What maintenance do coated insulated bearings need?

Clean them often, use the right oil, and check them carefully. Doing what the manufacturer says keeps the insulation working well.
