Where Are Slewing Ring Bearings Used Today

Slewing ring bearings are a vital component in countless applications across various industries. From towering wind turbines harnessing renewable energy to precise medical scanners that save lives, these versatile bearings play a critical role in allowing machinery to rotate smoothly and support heavy loads. Their unique ability to handle multiple loads simultaneously—axial, radial, and moment—makes them indispensable for equipment requiring both rotational movement and stability.

This article will explore the diverse applications of slewing ring bearings, highlighting how they are essential to the functionality and safety of modern machinery. Whether in construction, renewable energy, or robotics, these bearings are the unsung heroes that enable a wide range of equipment to operate with precision and reliability.

Key Takeaways

• Slewing ring bearings help machines turn easily. They also hold heavy things in many areas like building, clean energy, health care, and robots.
• These bearings make machines safer and more accurate. They last longer and make less noise. They also wear out slower and need less fixing.
• Checking bearings often helps them work well. Using the right grease and good seals makes them last longer.
• There are different slewing ring bearings for each machine. Cranes, wind turbines, medical scanners, and robots all need special types.
• Good materials and coatings keep bearings safe from rust and harm. This is very important in hard places like wind farms at sea and on ships.

Slewing Ring Bearing Applications in Heavy Equipment

Cranes

Cranes, also known as lifting equipment or hoists, are heavy-duty machines widely used in construction, ports, logistics, and heavy industry. The slewing ring bearing is a core component that enables a crane’s rotation.

The slewing ring bearing (also known as turntable bearing, crane bearing, or simply slewing bearing) is the key component enabling rotational motion in cranes. It is typically installed between the upper structure (boom, cab, counterweights) and the base. Slewing motion is essential in lifting operations, enabling the crane to rotate efficiently and accurately.

Main functions include:

• Supporting the full weight of the upper structure
• Transmitting various loads (axial, radial, and tilting moments) during lifting
• Providing smooth and precise 360° rotation

Slewing Bearing Selection Guide for Various Crane Types

Excavators

Excavators use slewing ring bearings to turn their top part. This lets the arm and bucket swing to dig and load dirt. The bearings help spread out heavy loads so nothing breaks. Their shape keeps them from bending or failing, even when working hard. The way the parts roll inside helps the excavator move smoothly. These bearings make the machine steady and tough, which is needed for digging and mining. Checking bolts and seals often keeps the bearings working well. Using the right grease and checking for leaks stops problems before they start.

Maintenance tips for excavator slewing ring bearings:

1. Check bolt tightness after 100 and 504 hours, then every 1000 hours.
2. Do not grease every day to stop leaks and damage.
3. Look at oil seals often and change them if broken.
4. Use the right way to add grease so bearings last longer.

Excavators need these bearings to turn well, carry heavy things, and last a long time. Their strong build helps them work in rough places without breaking.

Bulk Handling

Bulk handling machines, like stackers and reclaimers, use slewing ring bearings to turn big arms and move stuff. These bearings let the whole machine move smoothly over piles of material. They can hold up heavy weights and spread the load so nothing wears out too fast. Their tough build helps them work in places with salt, dust, or heat. The bearings make these machines last longer and work better with less fixing.

Key roles of slewing ring bearings in bulk handling:

• Hold up big arms that turn.
• Let belts and wheels move smoothly.
• Carry heavy things and spread the weight.
• Work well even in hard places.

Construction Machinery

Machines like concrete pumps, graders, and drills use slewing ring bearings to turn heavy parts. These bearings keep the machine steady and safe while it works. They let big parts turn all the way around, which helps workers do their jobs faster and safer. The bearings are strong and stiff, so the machines can do hard work. They do not rust or wear out quickly, so they last longer and cost less to fix. Greasing and checking them often keeps them working well.

Benefits of slewing ring bearings in construction machinery:

• Safe turning lowers the chance of accidents.
• Strong and reliable bearings mean less fixing and more work done.
• Easy to fit into many machine designs.
• Smooth turning helps workers put things in the right place.

The world market for slewing ring bearings in heavy machines was about USD 4.26 billion in 2022. Experts think it will grow to almost USD 4.91 billion by 2030. This is because more people need cranes, excavators, and machines that move heavy things. These machines need slewing ring bearings to lift heavy loads, turn smoothly, and work well for a long time.

Slewing Bearing Application in Renewable Energy

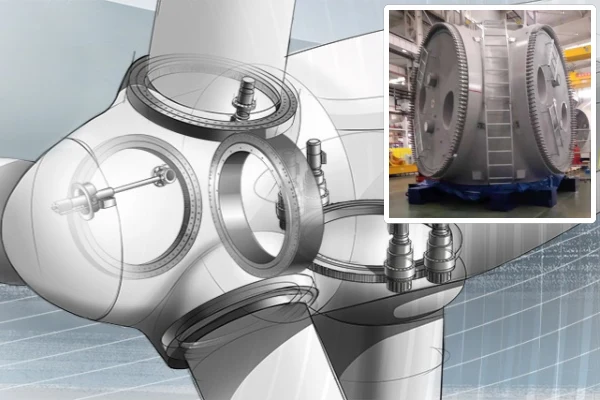

Wind Turbines

Wind turbines need slewing bearing application to move and stay strong. These bearings help the nacelle and blades turn. This lets turbines catch wind from any direction. The yaw system uses bearings to spin the nacelle. The pitch system changes blade angles for more power. There are over 5.2 million wind turbines with these bearings around the world. Most turbines are on land, using more than 72% of all bearings. Offshore turbines use less than 30%. They need better protection from salt and wet air.

Wind turbines need bearings that can hold heavy loads. They must not rust and should last a long time. Asia-Pacific uses the most, with Europe and North America next. TFL bearings use alloy steel and special coatings to stop rust and wear. Offshore turbines need even stronger coatings and health checks to last longer.

Tip: Check bearings often and use the right grease. This helps them last longer and keeps turbines working.

Wind turbines have better bearings now because of new designs:

• Bigger contact spots lower stress and bending.
• Segmented separator rings make loads easier to handle.
• Strong steel alloys help bearings last longer.
• Better raceway shapes and tighter fits share loads and cut friction.
• Good seals keep out dirt and keep grease inside.
• Hardened raceways stop damage from heavy loads.
• Good packaging keeps bearings safe when moving them.

These changes help turbines work longer and better. Bearings in yaw and pitch systems handle many kinds of forces. Their small size makes them easy to put in and lighter. Careful design lets them turn smoothly and move blades just right. This helps turbines make more energy. Good seals and grease help bearings last in bad weather.

Solar Trackers

Solar trackers use slewing bearing application to turn solar panels. These bearings hold up the panels and fight wind. They help panels move smoothly in one or two directions. This keeps panels facing the sun. It helps make 20% to 50% more energy than panels that do not move.

Slewing bearings in solar trackers give:

• Smooth turning for following the sun.
• Strong support in bad weather.
• Less friction for easy movement.
• Protection from rust for longer life.
• Good seals and grease to lower fixing needs.

Solar trackers use rotary drives with these bearings to move panels. This helps fix the problem of panels not getting enough sun. By letting panels move sideways, tilt, or up and down, slewing bearings help make 20% to 35% more power. They can handle strong forces and turn well, so they work better and break less.

Note: Solar trackers with slewing bearings need less fixing and work well in tough places.

These uses show how slewing bearing application helps make more energy and keeps systems working well in renewable energy. Wind turbines and solar trackers need these bearings for smooth turning, long life, and good performance.

Slewing Ring Bearings in Medical and Precision Equipment

Medical Scanners

Medical scanners like CT and MRI machines need special bearings. These bearings help the scanner parts turn fast and quietly. The bearings hold up heavy parts inside the scanner. They let the scanner spin quickly to take clear pictures. Doctors can see inside the body from many angles. The bearings have a big hole in the middle for patients. This makes it easier to help people feel comfortable. Stainless steel and titanium alloys keep the bearings from rusting. These materials also make the bearings last a long time. Quiet and steady turning helps patients feel calm. It also helps doctors get better pictures. These good features mean less fixing and more time working.

Tip: When scanners move quietly and smoothly, patients feel better and doctors get clearer images.

Surgical Robots

Surgical robots need bearings that are very exact and strong. The robot arms must move smoothly and stop in the right place. Crossed roller bearings help the robot arms move just right. The small size of the bearings fits inside the robot. Special seals keep out dust and liquids during surgery. The bearings do not rust or wear out fast. This keeps the robot safe and clean for surgery. Smooth movement helps doctors do careful work. This makes surgery safer and helps patients heal better.

Key features for surgical robot bearings:

• Very smooth movement for easy use
• Can hold different kinds of weight
• Small size and can be changed if needed
• Do not rust easily

Lab Equipment

Lab machines use bearings to move samples exactly where needed. Crossed roller bearings help put samples in the right spot. These bearings can hold weight from the side and from above. This is important for moving samples in labs. The bearings do not make much noise or friction. This keeps the lab quiet and helps with careful tests. Their small size saves space in busy labs. Smooth turning helps lab workers get the same results every time. Light and rust-proof materials mean less fixing and longer use.

Slewing Ring Bearing Applications in Robotics and Automation

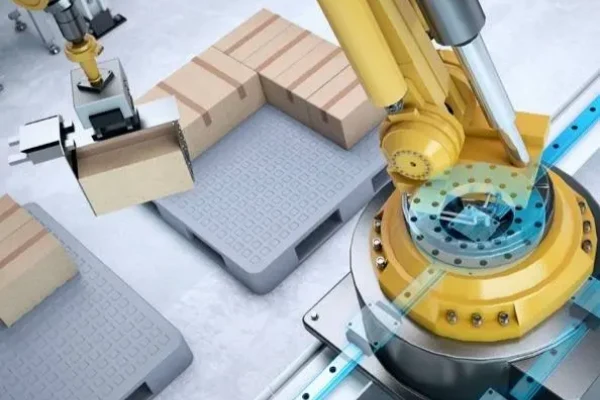

Industrial Robots

Industrial robots need special bearings to move well. These robots use slewing ring bearings in their joints. The joints include the waist, elbow, and wrist. The small size of these bearings helps robot arms be lighter. This makes robots move faster and use less power. The hole in the middle lets wires and hoses go through. This helps put robots together and keeps parts safe.

• Some bearings, like four-point contact ball and cross-roller bearings, fit different robot joints.
• Thin-walled bearings fit in tight spaces and hold more weight.
• Cross roller bearings help robots move with high accuracy and steady friction.

These things help robots do careful work in many jobs. Better bearings mean robots can move faster and more exactly. This makes machines work better and last longer.

Automated Guided Vehicles

Automated guided vehicles, or AGVs, use slewing ring bearings to turn arms and carry loads. These bearings handle many kinds of forces, like pushing, pulling, and tilting. AGVs must turn smoothly and stay steady to move things safely.

• Slewing bearings help AGVs put loads in the right place and move easily.
• Strong materials make the bearings last long and work well in hard places.
• Many sizes and shapes fit different AGVs and loads.

AGVs use these bearings to turn better and carry things more safely. This helps them work well on assembly lines and in factories.

Packaging Machinery

Packaging machines need good bearings to spin fast and work right. Slewing bearings help mixers, fillers, and arms turn around. These bearings do not need much fixing because they have special grease inside.

These things help packaging machines work without stopping a lot. The bearings help parts turn just right and keep machines working well. This makes the work faster and better in factories.

Slewing Bearing Application in Aerospace, Marine, and Defense

Radar Systems

Radar systems use slewing bearing technology to turn smoothly and stay steady. These bearings are found in military tank turrets, mortar systems, and radar antennas. They help heavy equipment spin exactly and without trouble. Engineers make these systems strong for big loads and hard hits. Ring gears and gearboxes help the radar move with almost no extra play. This lets antennas follow objects very closely. Special coatings keep the bearings safe from dust, shaking, and bad weather. Military rules say the bearings must be tested well to make sure they work every time.

Tip: Using electrical preload systems can stop extra play and help radar track better.

Performance criteria for radar system bearings:

• Hold up heavy equipment
• Move with almost no extra play
• Stay stiff and not bend
• Last long in tough places

Satellite Antennas

Satellite antennas need slewing bearing solutions to turn and follow satellites. These bearings, like single row ball or crossed roller types, hold up the antenna and help it move. Slew drives use motors to turn antennas smoothly. This helps them follow satellites in the sky. Worm gear drives lock the antenna in place so wind and shaking do not move it. Small, sealed designs keep out dust and water, so there is less fixing needed.

Key features for satellite antenna bearings:

1. Hold up strong turning force and many kinds of loads
2. Help put antennas in the right spot with gears
3. Lock in place for steady aiming
4. Sealed to keep out dirt and water
5. Small size makes them easy to use

Ship Deck Cranes

Ship deck cranes use slewing bearing technology to turn and lift heavy things safely. These bearings are made from stainless steel or special alloys so saltwater does not hurt them. The bearings join the crane’s base to the part that spins. They hold up side, up-and-down, and twisting loads when lifting. Special seals keep out saltwater, dirt, and junk to protect the bearings. Surface treatments and regular care help the crane last longer.

Environmental considerations for marine bearings:

• Do not rust in saltwater
• Seals keep out dirt and water
• Strong build for hot, cold, and wet places

Missile Launchers

Missile launchers use slewing bearing solutions to turn smoothly and aim right. These bearings must hold up big up-and-down, side, and twisting loads. Engineers shape the inside so stress spreads out and nothing bends. Strong bolts and even mounting keep the launcher safe. Special coatings and grease help the bearings work in hot, cold, and shaky places. Light and small designs make the launcher easier to move and use.

• Bearings help aim missiles exactly.
• Tough rolling parts last long and save energy.
• Coatings stop rust and damage in bad places.

Note: Talking to bearing experts early helps pick and set up the best bearings for missile launchers.

Slewing Ring Bearings in Agriculture and Transport

Agricultural Machinery

Farmers use slewing ring bearings in many farm machines. These bearings help machines work better and last longer. Some machines that use them are:

• Harvesters, like combine harvesters, where bearings hold up cutter heads, threshing drums, and cleaning sieves.
• Tractors with tools on the front, such as plows and harrows.
• Trailers that tractors pull.

Slewing ring bearings let machine parts move in many ways. They help equipment work on different ground and with many crops. These bearings hold up loads from different directions at the same time. This keeps machines steady and safe. Smooth movement means less damage to crops and machines. The bearings also help machines last longer by handling hard hits and uneven loads. When used with sensors and controls, they let machines change angles by themselves. This makes farming faster and helps get better crops.

Note: Dust, dirt, and water can hurt bearings. Engineers keep making better covers and materials to protect bearings in tough places.

Articulated Buses

Articulated buses have a joint in the middle that uses slewing ring bearings. This joint lets the bus bend and turn around corners. The bearings help the bus turn smoothly and hold up heavy loads from people and bumpy roads. They make sure the bus moves well, even on rough streets. By holding up many kinds of loads, the bearings keep the bus safe and comfy for riders. Engineers make these bearings strong so they last for years.

• Let long buses turn easily
• Hold up heavy loads from people and roads
• Cut down on damage and make buses safer

Transport Engineering

Transport engineering uses slewing ring bearings in many ways. These bearings are important for big cranes, excavators, loaders, and truck cranes. They let machines turn just right and hold up big loads from all sides. This is needed for lifting and moving heavy things in building projects.

These uses help machines work better and more exactly in building and port work. Slewing ring bearings let machines hold more weight, which helps build strong roads and buildings. Engineers keep making better materials and coatings so bearings last longer and do not rust.

Slewing ring bearings are very important in many jobs. They help machines turn and hold up heavy things. These bearings are used in aerospace, renewable energy, marine, and robotics. Good care and the right setup make machines last longer. The table below shows how different industries use these bearings:

These bearings let machines spin and carry heavy things. Setting them up right and checking them often stops problems. If you need help with setup or care, you can talk to TFL Bearings for advice.

FAQ

What is the main job of a slewing ring bearing?

A slewing ring bearing helps machines turn and hold heavy loads. It supports rotation in equipment like cranes, wind turbines, and robots. This bearing keeps machines steady and working safely.

How often should someone check slewing ring bearings?

Engineers recommend checking slewing ring bearings every few months. Regular checks help find problems early. Greasing and inspecting bolts can make the bearing last longer.

Can slewing ring bearings work in wet or dirty places?

Slewing ring bearings use seals and special coatings to protect against water, dust, and dirt. These features help the bearing work well in tough places like farms, ships, and construction sites.

What happens if a slewing ring bearing fails?

If a slewing ring bearing fails, the machine may stop turning or carry loads poorly. This can cause damage or safety risks. Quick repairs and regular care help prevent these problems.

How do engineers drive a slewing ring bearing in large machines?

Engineers use motors and gears to drive a slewing ring bearing. This setup lets the bearing turn heavy parts smoothly. It helps machines like cranes and wind turbines move with control.
