How to Match Needle Roller Bearing Sizes to Your Shaft and Housing

To match the right needle roller bearing to your shaft and housing, you must measure the shaft diameter, housing bore, and bearing width. Start by checking the size of your shaft with a caliper. Use a chart to compare your shaft size with the inner diameter of the bearing. Next, measure the housing bore and look for a bearing with an outer diameter that fits. The size of the bearing must match both the shaft and the housing for a good fit. Check the width of the needle roller bearing as well. Use the chart to help with your selection. Always double-check the size before making a selection. The chart gives you the best chance to find the correct bearing size for your needs. Good measurement and chart use lead to the right size and better bearing performance.

Key Takeaways

• Use the right tools to measure your shaft diameter, housing bore, and bearing width. This helps you get a good fit and stops bearing failure.
• Make sure the bearing’s inner diameter matches the shaft. The outer diameter should match the housing. The width must fit the space you have. This gives the best performance.
• Look at a needle bearing size chart to compare your measurements. The chart helps you understand bearing codes. You can also check sizes from different brands.
• Think about your machine’s load, speed, and fit tolerances. Pick a bearing that can handle these things and last longer.
• Check all your measurements and chart details again before you buy. If you are not sure, ask experts for help. This helps you avoid mistakes and keeps your machine working well.

Accurate Measurement of Needle Bearings

Getting the right size for your needle roller bearing starts with accurate measurement of the shaft, housing, and bearing width. If you measure wrong, the bearing may not fit or work well. You need to use the right tools and know what to look for.

Shaft Diameter

You should always measure the shaft diameter with a micrometer or a digital caliper. Place the tool at several points along the shaft to check for roundness and wear. Write down the smallest size you find. This helps you pick a bearing that fits tightly and does not slip. If you use the wrong size, the bearing can move or wear out fast.

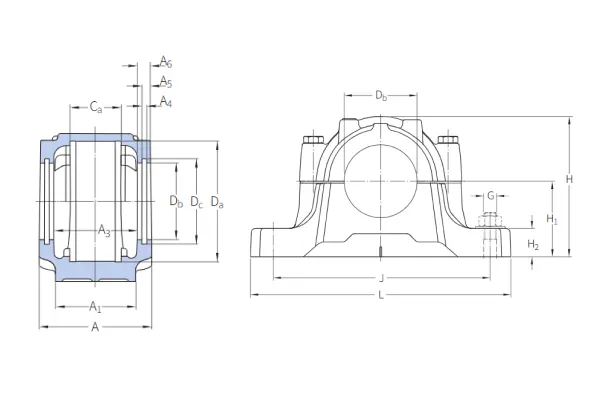

Housing Bore

The housing bore is the hole where the bearing sits. Use a bore gauge or an inside micrometer to measure this size. Make sure the surface is smooth and clean before you measure. The right tolerance is important for a good fit. Here is a table that shows the best tolerance grades for different shaft sizes and load conditions:

Tip: Many people make mistakes when measuring the housing bore.

Bearing Width

You must also check the width of the bearing. Use a caliper to measure this size. The width must match the space in your housing. If the bearing is too wide or too narrow, it will not work well. Always compare your measurements to the size chart for your needle roller bearing.

The accurate measurement of needle bearings helps you avoid problems and makes sure your bearing lasts longer. Take your time and double-check each size before you choose a bearing.

Understanding Needle Bearing Dimensions

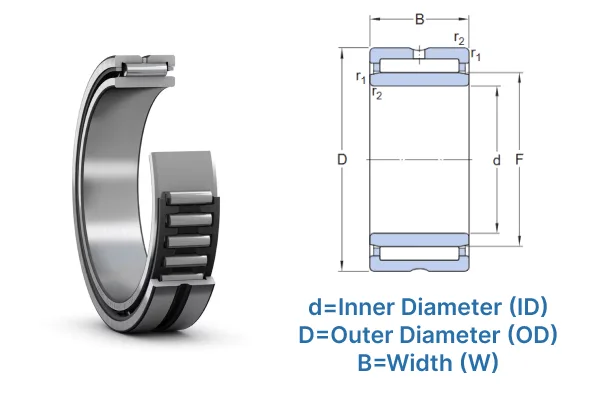

Choosing the right size for your needle roller bearing depends on understanding three main needle bearing dimensions: inner diameter (ID), outer diameter (OD), and width (W). Each one plays a key role in how the bearing fits and works in your application.

Inner Diameter (ID)

The inner diameter is the hole in the center of the bearing. You must match this size to your shaft. If the shaft rotates, you need a tight fit to stop the bearing from slipping. For a shaft that stays still, a small gap is sometimes okay. The fit between the inner diameter and the shaft affects how well the bearing works. Too much space can cause the bearing to move or wear out. Too tight a fit can damage the bearing or make it hard to install. Always check the shaft and bearing size together. Use standard size charts to find the right match for your needle roller bearing.

• The inner diameter and shaft fit depend on:
  • Whether the shaft or bearing ring rotates
  • The load on the bearing
  • The type of fit: clearance, interference, or transition
  • Material and temperature changes

Tip: If you use the wrong fit, you may see problems like slippage, heat, or early failure.

Outer Diameter (OD)

The outer diameter is the outside edge of the bearing. This size must match the housing bore. The fit here keeps the bearing in place and helps it handle loads. Housing material can affect the fit. Softer materials may crush the bearing if the fit is too tight. Always follow manufacturer guidelines for size and fit.

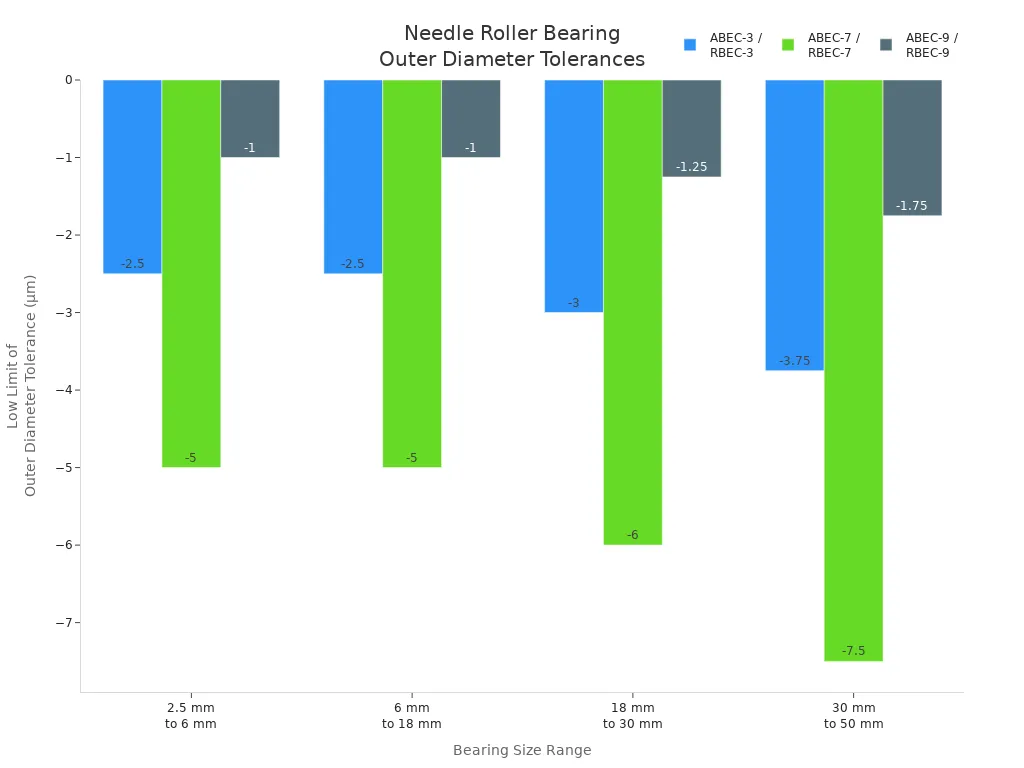

Here is a table showing industry standard tolerances for outer diameter in needle roller bearings:

Width (W)

Width is the thickness of the bearing. This needle bearing dimension affects how much load the bearing can handle and how much space it takes up. You need to pick a width that fits your housing and meets your load needs. If you choose a bearing that is too wide, it may not fit. If it is too narrow, it may not support the load.

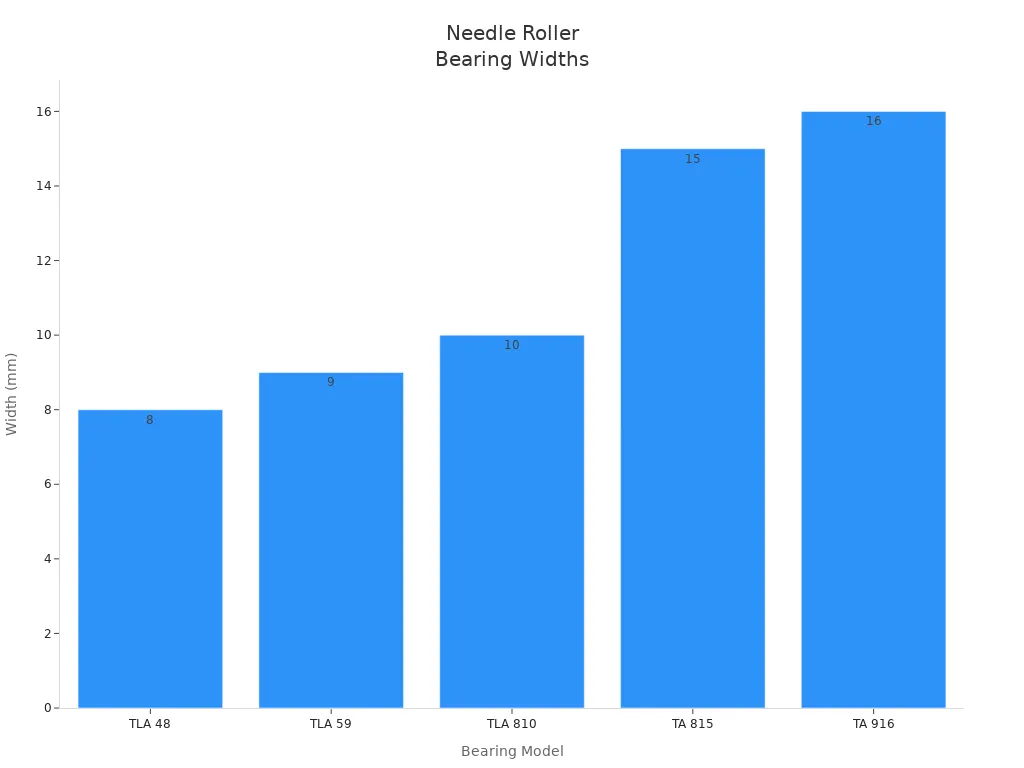

Here are some common widths for needle roller bearings:

When you select the width, think about the load, speed, and space in your design. The right width helps your bearing last longer and work better.

Note: Always match all three needle bearing dimensions—ID, OD, and width—to your shaft, housing, and application needs. This ensures the best fit and performance for your needle roller bearing.

Using a Needle Bearing Size Chart

A needle bearing size chart helps you find the right bearing for your shaft and housing. You use this chart to compare the size of your shaft, housing, and the bearing itself. The chart lists many types and sizes, so you can match your needs quickly. When you use a needle bearing size chart, you avoid mistakes and make sure your bearing fits well.

Interpreting Bearing Codes

You will see many codes and numbers in a needle bearing size chart. These codes tell you about the bearing’s type, size, and special features. Each bearing has a unique code, called a bearing designation. This code uses letters and numbers to show the type, size, and sometimes the cage or seal. For example, “HK” means a metric bearing with open ends, while “BK” means closed ends. “SCE” shows an inch bearing with a cage.

To read these codes, break them down into parts:

• The prefix shows the type and if it is metric or inch.
• The numbers show the inner diameter, outer diameter, and width.
• The suffix tells you about seals, clearance, or precision.

Tip: Always check the meaning of each part of the code in the needle bearing size chart catalogues. This helps you pick the correct bearing type for your application.

You should also look at the tolerance and clearance codes. These show how much space or tightness the bearing will have. The chart will list these codes, so you can compare them to your needs. If you want a high-precision bearing, look for codes like P4 or P5. For normal use, the standard group is usually enough.

Here is a simple table to help you understand common code parts:

When you use the chart, always match the code to your shaft and housing size. This makes sure you get the correct bearing type and avoid problems.

Cross-Referencing Sizes

Sometimes, you need to replace a bearing from one brand with another. A needle bearing size chart helps you do this by showing all the sizes and types. You can use the chart to find a bearing with the same inner diameter, outer diameter, and width. This is called cross-referencing.

You should compare these key parameters in the chart:

• Bearing designation (the code or part number)
• Inner diameter (ID)
• Outer diameter (OD)
• Width (W)
• Load ratings (dynamic and static)
• Limiting speed
• Special features (like cage type or seals)

If you use machines from different brands, cross-referencing is very important. The International Bearing Interchange (IBI) guide is a great tool for this. The IBI guide has charts that let you match bearing codes from many brands. You can find the same size and type, even if the brands are different. The guide also explains special prefixes and suffixes, so you do not make mistakes.

Note: Always check the chart for exact size matches. Even a small difference in size can cause problems like noise, vibration, or early failure.

Here is a checklist to help you use a needle bearing size chart for cross-referencing:

1. Find your old bearing’s code and size.
2. Look up the code in the chart.
3. Compare the inner diameter, outer diameter, and width.
4. Check the load ratings and speed limits.
5. Match any special features or suffixes.
6. Use the IBI guide if you need to find a match from another brand.

If you follow these steps, you will pick the correct bearing type and avoid fit or performance issues. Using a needle bearing size chart makes your selection process faster and more accurate. You also reduce the risk of downtime and costly mistakes.

Best Practice: Always double-check your measurements and the chart before you buy. If you are not sure, ask an expert or use the IBI guide for help.

A needle bearing size chart is your main tool for finding the right bearing size and type. It helps you compare all the important details, like size, load, and speed. You can use the chart to cross-reference sizes and make sure your bearing will work in your machine. This keeps your equipment running smoothly and safely.

Application and Fit Considerations

Load and Speed

You must always match the bearing to the load and speed in your application. Start by checking the type and direction of the load. Most bearings handle radial loads best. If your machine puts a lot of force on the bearing from the side, you need a type that can handle high radial loads. For high-speed application, deep groove ball bearings work better than other types. Needle roller bearings work well in tight spaces and carry heavy radial loads, but they do not perform as well at high speeds.

Use this table to compare recommended minimum loads:

Always check the dynamic and static load ratings. Make sure the bearing can handle the forces in your application. If you use the wrong type, you risk early failure.

Shaft and Housing Tolerances

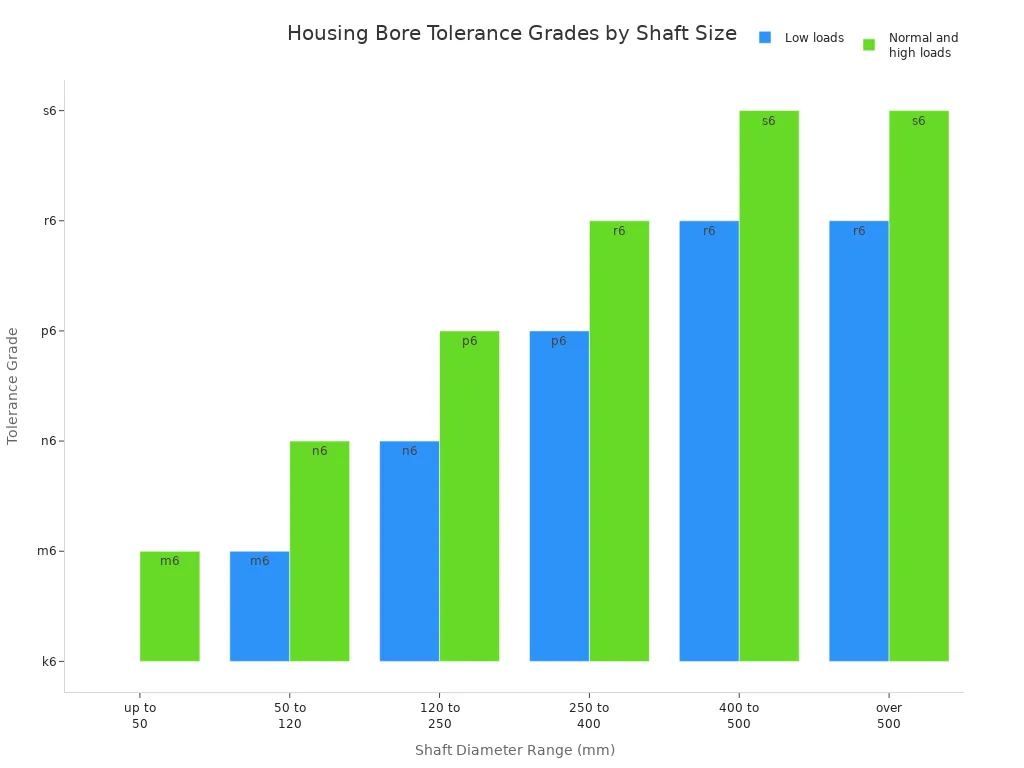

You need to pay close attention to shaft and housing tolerances. The fit between the bearing and its seat affects how long the bearing lasts. Use IT6 for the shaft and IT7 for the housing. Grind the shaft and turn the housing bore with care. Keep the surface finish smooth and hard. A rough or soft surface can cause the bearing to wear out fast.

• Match tolerances to the correct bearing type.
• Keep the shaft hard and smooth (minimum 670 HV).
• Use precise alignment to avoid noise and extra strain.
• Guide the bearing axially with shoulders or rings.

If you ignore these steps, you may see misalignment, noise, or even bearing failure.

Clearance and Installation

Proper clearance is key during installation. If the fit is too tight, the bearing may not rotate well. Too much clearance can cause noise, vibration, or even damage. Always check the clearance before and after mounting.

Follow these steps for correct installation:

1. Heat the bearing to expand it (not above 120°C).
2. Mount the bearing quickly and press it against the shaft shoulder.
3. Use even force and the right tools.
4. Never press on the wrong ring.

If you install the bearing with the right clearance, you help it last longer and work better in your application.

Confirming the Right Needle Roller Bearing

Double-Check Measurements

You must make sure your chosen bearing fits all needed sizes and tolerances before you install it. Begin by looking over your shaft, housing, and bearing width measurements. Use accurate tools like vernier calipers to check the inner diameter, outer diameter, and width. Checking the size and shape helps you see if the bearing is the right one. You should also check that the bearing is round and not bent. Make sure the bearing surface is smooth and has no scratches or marks. Vibration checks can show if the bearing has damage or wears out too fast. These steps help you see if the bearing meets ISO rules and fits your design.

Use this checklist to double-check your choice:

1. Find out what load and speed your machine needs.
2. Measure the bearing’s width, inner diameter, and outer diameter with good tools.
3. Look at the bearing’s reference numbers and extra letters for type, seals, and clearance.
4. Check the clearance values like C2, C3, or C4 for a good fit and heat changes.
5. Look at the bearing for any marks or problems you can see.

🛠️ Tip: Always match your measurements with the manufacturer’s catalog or size chart. Even a tiny difference can change how long the bearing lasts or how well it works.

Consult Experts if Needed

If you are not sure about your measurements or the job, ask a bearing expert or engineer for help. Picking the right bearing for important jobs needs you to think about many things, like how much load it can take, how fast it spins, the temperature, the place it will be used, oil or grease, and how you will take care of it. Experts know a lot and have done this before. They can help you choose the best bearing and make sure it will work well in your machine.

Talking to an expert helps you avoid mistakes and saves money. You can feel sure your bearing will work, even in tough or new places.

If you buy from a supplier like TFL, you can get help and advice from their team. This help can solve problems and guide you to the best bearing for your needs.

You can match the right bearing to your shaft and housing by following a few simple steps. First, measure each part carefully. Next, learn how each bearing dimension affects fit and performance. Use a chart to compare your measurements and find the best match. Always check the chart for size, load, and speed. Double-check every chart entry before you buy. Many failures happen when you skip steps or ignore the chart. Common problems include misalignment, improper mounting, and bad fits. Overheating and contamination also cause bearing issues. If you have a complex job, ask TFL for help. You can keep your machine running smoothly by using the chart and checking your bearing choice.

FAQ

How do you measure a shaft for a needle roller bearing?

Use a digital caliper or micrometer. Measure the shaft at several points. Record the smallest diameter. This helps you find the best fit for your bearing.

Tip: Always clean the shaft before measuring for the most accurate result.

What happens if the bearing is too tight or too loose?

A tight fit can cause heat and damage. A loose fit can lead to movement and early failure. You should always match the bearing size to your shaft and housing for the best performance.

Can you reuse a needle roller bearing?

You should not reuse a bearing if it shows wear, damage, or rust. Always inspect the bearing. If you see scratches or noise, replace it with a new one from TFL.

Where can you find the correct bearing size for your application?

Check the machine manual or use a needle bearing size chart. You can also contact TFL for help. They will guide you to the right size for your shaft and housing.
