Insulated Bearings in VFD Motors: Enhancing Reliability and Reducing Maintenance Costs

Insulated bearings are very important for fixing problems in motors with VFDs. In factories, about 80% of motor bearing failures come from electrical damage. This makes electric motor failure a big reason for machines to stop working. Motors that use variable frequency drives have more problems, especially in the first year. Using insulated bearings in VFD motors helps stop expensive bearing damage. It also helps the motor last longer. The table below shows how insulated bearings change maintenance, cost, and machine running time in VFD motors:

VFD Shaft Currents

Causes in VFD Motors

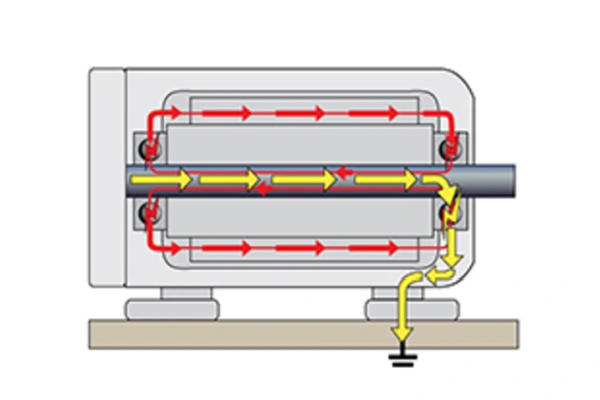

VFDs change how fast a motor spins by changing the power. This makes high-frequency voltages and currents inside the motor. These are called common mode voltages and currents. They can leak out through different paths in the motor. Sometimes, they go between the stator windings and the motor frame. In big motors, these currents can move through the bearings. If the motor is not grounded well, the problem gets worse. When the frame cannot send current to the ground, the current finds another way. It often goes through the shaft and bearings. High carrier frequencies, especially over 5 kHz, make this risk higher. Bigger motors or motors with bad grounding have more shaft current problems.

• Main reasons for shaft currents in VFD motors:
  • Common mode voltage and current from VFDs
  • High-frequency currents leaking through stray capacitance
  • Bad grounding of the motor frame
  • High carrier frequencies in the VFD
  • Bigger motor size

Effects on Bearings

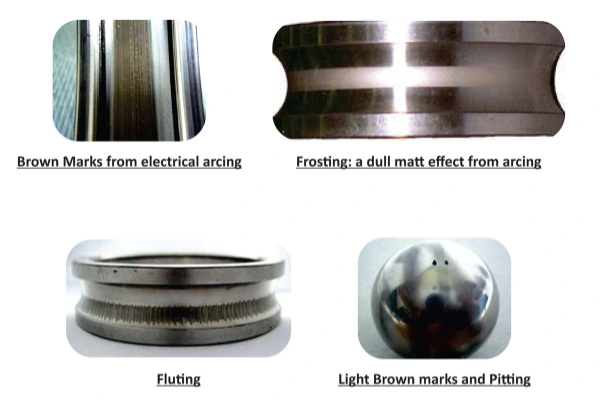

Shaft currents can hurt the bearings very fast. The high-frequency voltage can break the thin oil film that protects the bearings. When this happens, current jumps across the bearing and makes tiny sparks. This is called electrical discharge machining. Over time, it makes small pits called frosting and bigger grooves called fluting. These marks make the bearings weak and noisy. The damage can get worse quickly and ruin a new motor in months. Bigger motors and those running at higher frequencies are at more risk. The damage often means the bearings need to be replaced early.

Fluted bearings make noise and shake, which shows damage. If not fixed, the motor might stop working suddenly.

Maintenance Impact

Problems from VFDs make companies change their maintenance plans. Shaft current damage often causes surprise downtime. Plants may need to change bearings sooner than planned. Maintenance schedules get shorter. If the damage is missed, sudden failures can stop production. This can cost a lot of money every hour in big plants. Many motors break within six months because of electrical bearing damage. These failures lower plant output and raise repair costs. Regular checks and steps like using insulated bearings help motors last longer.

Insulated Bearings Benefits

Electrical Erosion Prevention

Insulated bearings help protect motors from electrical erosion. VFDs can make high-frequency voltages that hurt bearings. The insulation acts like a wall and stops these currents. Hybrid bearings use ceramic parts that resist electricity. Some bearings have a thin aluminum oxide layer. Both types block stray currents and stop electric sparks inside the motor. This keeps the bearing surfaces smooth and free from damage.

When insulated bearings are used with shaft grounding rings, they lower harmful shaft voltages. Tests with an oscilloscope show voltage peaks drop a lot after these are added. For example, a rooftop HVAC unit in Michigan saw voltage go from 44.8 V to 3.76 V. That is a 92% drop. A hospital air handling unit had an 83% drop. These results show that insulation and grounding together stop electrical erosion in VFD motors.

Reliability Improvement

Insulated bearings make motors more reliable in VFD systems. Electrical currents in bearings cause heat and metal to disappear. This can make tiny welds and damage the surface. Insulation materials like polyimide stop these currents and keep bearings from failing early. This is very important in factories where motors run all the time.

• Insulated bearings block electrical discharge machining currents from VFDs.
• These currents can cause fluting, vibration, and early failure.
• Insulation keeps parasitic currents away from bearing raceways.
• When used with shaft grounding straps, insulated bearings lower vibration and heat.
• This helps motors last longer and work better.

Hybrid ceramic bearings also help by making less heat, about 30% less. Less heat means the grease in the bearing lasts two or three times longer. The smoother finish and better shape of these bearings make fewer metal bits. All these things help motors work better and last longer.

Cost and Downtime Reduction

Insulated bearings help lower maintenance costs and cut down on surprise downtime in VFD systems. By keeping the bearing safe from shaft currents, insulation lowers the chance of electrical damage. This means fewer bearing changes and less repair time. For motors over 100 hp, insulated bearings are a smart choice for protection.

• Insulated bearings lower how often and how long motors stop because of bearing failure.
• They help save money on repairs and lost work time.
• Insulation should be used with good grounding and bonding.
• Over time, dirt can make insulation weaker, so regular checks are needed.

Insulated bearings do not remove all risks, but they are very important for protecting motors from VFD damage. They also help lower vibration and noise, which makes motors work better. For many uses, insulated bearings are a good way to help motors last longer and keep things running well.

Insulated Bearings vs Alternatives

Shaft Grounding Rings

Shaft grounding rings give shaft currents a safe way to reach the ground. These rings have tiny wires that touch the motor shaft. They stop electricity from going through the bearings. This keeps the motor and other machines safe. Many companies trust grounding rings and give longer warranties if you use them. The rings do not need much care and can be put on at the factory or later. Grounding rings do not just block current like insulated bearings. They take the current out of the system. This makes them a cheap way to protect motors for a long time.

• Shaft grounding rings are simple to put on and last as long as the motor.
• They keep both ends of the motor bearings safe.
• They work well for motors with VFDs, especially big ones over 100 hp.

Tip: For big motors, use a grounding ring on one end and an insulated bearing on the other for the best safety.

Common Mode Chokes

Common mode chokes help by filtering the wires that power the motor. They lower harmful currents by up to 65%. This helps keep the bearings safer from some damage. But chokes do not get rid of shaft voltage, which is the main reason bearings fail in VFD motors. Chokes are easy to put in and do not need much care. They last a long time and do not wear out like bearings do. Chokes cost less over time because you do not need to replace them. Still, chokes alone do not give full safety. Motors with high shaft voltage need more than just chokes to stay safe.

Choosing the Best Solution

The best choice depends on motor size, VFD settings, and how much shaft current is a risk. The table below shows how each solution fits different needs:

No one answer works for every motor. For hard VFD jobs, using both insulated bearings and grounding rings is best. Chokes help more but do not replace the need to control shaft current. Each solution helps save money and time, but the best one depends on the motor and the job.

VFD Motor Best Practices

Selection Tips

Picking the right insulated bearings for a VFD motor is important. You need to think about what the motor will do and where it will be used.

• Coated bearings are good for most factories. They are cheaper and have a thin layer that stops shaft currents.
• Ceramic bearings give better insulation. They can handle high heat, fast speeds, and big voltage changes. These bearings are best for motors in wind turbines or fast machines.
• Ceramic bearings last longer in hard places because they do not get damaged easily and block electricity well.

Where the motor is used also matters. Dust, oil, and gases can hurt the motor and its parts. Motors in dirty or chemical-filled places need special seals and coatings. Hot or cold weather changes how the motor works and how long it lasts. Sealed covers and clean air help keep the motor and bearings safe from these problems.

Installation Steps

Installing the motor the right way helps it work better and last longer.

1. Clean the motor housing and shaft before putting in bearings.
2. Use the right tools so you do not hurt the insulation layer.
3. Put insulated bearings on the non-drive end of the motor.
4. Add a shaft grounding ring on the drive end for more safety.

5. Make sure all parts fit tight and line up the motor right.

   Tip: Always follow what the manufacturer says when installing to stop stray currents from hurting the motor.

Maintenance Guidelines

Taking care of the motor often helps it run well and last longer.

• Lubricate the bearings as the manufacturer tells you to stop friction and wear.
• Check the cooling system so the motor does not get too hot.
• Watch for vibration, which can mean the motor is not lined up or the bearings have a problem.
• Look for signs of wear, dirt, or damage when you check the motor.
• Make a maintenance plan based on how much the motor runs and where it is used.

A motor that had fluting damage got better after it was installed the right way and a grounding brush was used. This shows that good installation and regular checks help stop failures and keep the motor working well.

Insulated bearings help VFD motors last longer. They also help motors work better by stopping electrical damage. When you use shaft grounding rings with them, repair costs go down. This also means machines stop less often. The chart below shows how protecting bearings saves money over 20 years:

TFL Bearings gives expert help and sells strong insulated bearings. Their products help machines keep running and cost less to fix. You can ask TFL Bearings for advice on the best way to protect your VFD motors.

FAQ

What is the main purpose of insulated bearings in VFD motors?

Insulated bearings keep electrical currents out of the bearing. This helps stop damage to the motor. It also makes the motor quieter. The motor can run for a longer time.

How often should insulated bearings be checked?

Technicians should look at insulated bearings during normal motor checks. Most experts say to check them every six months. Checking early helps find problems before the motor breaks.

Can insulated bearings work with shaft grounding rings?

Yes, they can be used together. Many experts say to use both at the same time. Insulated bearings block current on one side. Shaft grounding rings let current leave safely on the other side. Using both gives the best safety.

Do insulated bearings need special installation tools?

Yes, special tools are needed for installation. Technicians should use tools that do not hurt the insulation layer. Clean hands and clean surfaces help keep the insulation strong. Always follow the manufacturer’s steps for the best results.
