You can save time and make fewer mistakes by using a cross reference tool to find matching bearings from different brands. Engineers and purchasers often need to replace a bearing that is hard to find or not made anymore. A bearing cross reference tool helps you find the right part fast. Shandong TFL Bearing Co., Ltd gives this service and has experts to help with any technical or compatibility questions.
Key Takeaways
- A bearing cross reference tool lets you find matching bearings fast. It works with different brands. This saves time and helps stop mistakes.
- Always use the full part number. Measure your bearing’s size very carefully. This helps you get the right cross reference results.
- Check details like size, load rating, and special features before you order. This makes sure the new bearing fits and works well.
- The tool works with many bearing types and brands. It even helps with hard-to-find or discontinued parts. This makes replacing bearings easier.
- Knowing bearing numbers and codes helps you use the tool better. It also helps you avoid mistakes when picking replacements.
- Compatibility is important. Check materials and lubricants to stop damage. This helps your bearing last longer.
- Shandong TFL Bearing Co., Ltd offers expert support. They can help with technical questions and special cases.
- Using online charts and calculators with the tool makes picking bearings faster. It also makes your projects more reliable.

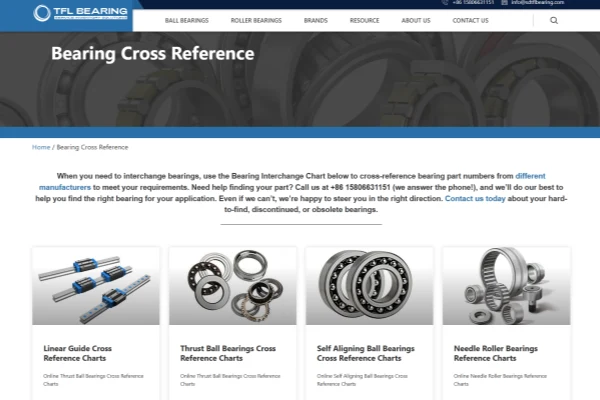

Bearing Cross Reference
What Is a Bearing Cross Reference?
A bearing cross reference helps you find a replacement part from another brand. Sometimes, the same bearing has different part numbers because each company uses its own system. Some companies use the ABMA standard, but others have their own codes. The cross reference lets you change one part number to another. This makes it easy to find a matching bearing from a different brand. This tool is helpful if your bearing is hard to find or not made anymore. You can use it to make sure your new bearing will fit and work like the old one.
Shandong TFL Bearing Co., Ltd has a cross reference tool that works with many brands and types. Their experts can help you find the right match for your needs.
How Cross Reference Charts Work
You use a bearing cross reference chart to look up a part number and see matching numbers from other brands. These charts come from many places, like catalogs, distributor lists, and community charts. For example, some charts use data from Schaeffler Medias Interchange, NTN Bearing Finder, Rexnord Bearing Interchange Guide, and BoreCode’s database. These resources collect information from all over the world, including OEM and government part numbers. Some charts are online tools, and some are long PDF files.
Tip: Always check the size and details before you choose a bearing. Even if the numbers match, small changes can affect how it works.
Shandong TFL Bearing Co., Ltd uses a worldwide network and many databases to keep their chart current. This means you get the right information every time you search.
Benefits for Engineers and Purchasers
You save time and make fewer mistakes when you use a bearing cross reference tool. You do not need to look through many catalogs or guess which bearing will fit. The tool gives you quick answers, so you can focus on your work.
Here are some key benefits:
- Speed: You find the right bearing fast, even if the original is obsolete.
- Accuracy: You get reliable matches, reducing the risk of ordering the wrong part.
- Ease of Use: You only need the part number to start your search.
- Wide Coverage: You can match bearings from many brands, thanks to the global network and databases.
- Expert Support: You can contact Shandong TFL Bearing Co., Ltd for help with technical questions or special cases.
A quick cross-reference guide is very helpful when you work with machines from different countries or brands. You can use the bearing interchange guide to keep your machines working well and avoid problems.
Using the Tool
Step-by-Step Guide
You can use the automatic cross reference tool to find the right bearing fast. This guide will show you how to use each step.
Select Manufacturer
First, pick the manufacturer of your bearing. The cross reference tool has many brands from all over the world. You will see a list or a dropdown menu. Choose the brand that matches your bearing. This helps the tool find the closest match for you.
Enter Part Number
Next, type in the part number from your old bearing. If you know the whole number, enter it just as it is. The automatic cross reference tool can help if you only know part of the number. You can also add measurements like inner diameter, outer diameter, and width. Some tools let you upload a photo for extra help. This makes it easier to find the correct cross-reference bearing part numbers.
Review Results
After you enter the details, the tool will show a list of matching bearings from other brands. You will see the basic bearing interchange numbers, sizes, and any special features. Look at the results closely. Compare the sizes and check for any suffixes that show special features or clearances. If you have questions, you can ask an expert for help with picking the right bearing interchange.
Tip: Always check the measurements and features before you order. Even small changes can affect how the bearing works in your machine.
Tips for Accurate Results
You can get the best results from the cross reference tool by following these tips:
- Always use the full part number if you can.
- Measure the inner diameter, outer diam
eter, and width with a caliper.
- Look for any suffixes or prefixes in the bearing series part numbers. These show special features like seals or clearances.
- Compare load ratings and speed limits if you have them.
- Use the interchange guide to match brands and types.
- If you are not sure, ask for help or send a photo with your measurements.
Being careful helps you avoid mistakes and keeps your machines working well.

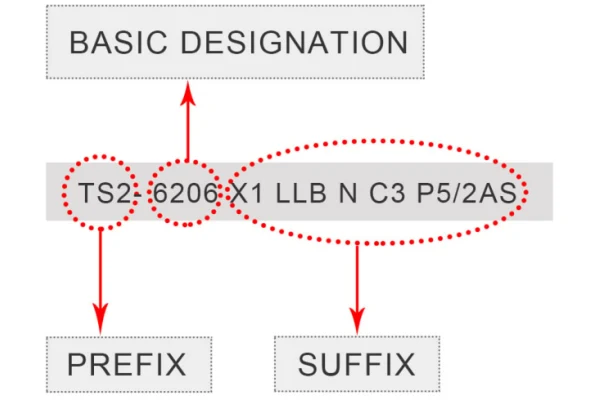

Understanding Bearing Numbers
Bearing numbers can look hard to understand, but you can break them into simple parts. Each number has a prefix, a basic code, and a suffix. The prefix shows the type and dimension system. The basic code tells you the bearing type, series width or height, and size code for the bore. The suffix gives extra details, like special features, clearances, or precision ratings.
For example, angular contact bearings use numbers to show the brand, number of rows, series, material, radial clearance, and precision. When you know these parts, you can use the automatic bearing lookup tool better.
Here is a simple table to help you read bearing numbers:
| Part | What It Means |
|---|---|
| Prefix | Type and dimension system |
| Basic Code | Bearing type, size, series |
| Suffix | Special features, clearance, rating |
If you only know part of the number, measure the bearing and give those details. Experts can use your measurements and the guide to find the right interchange. Always check the tolerance and clearance codes to make sure the new bearing will fit and work well.
Note: Knowing bearing numbers helps you cross-reference bearings with confidence and lowers the chance of mistakes.
Bearing Cross Reference Online Viewer
Online Spherical Roller Bearing Cross-Reference Chart
You can use the online chart to find the right spherical roller bearing for your machine. Spherical roller bearings are used in many jobs. They can carry heavy loads and work in rough places. The chart shows sealed and CA spherical roller bearings. These bearings can hold a lot of weight and line up by themselves. They help lower friction and make your machines last longer.
Shandong TFL Bearing Co., Ltd puts special and popular bearings in the cross reference tool. You will see double row tape roller bearings, self-aligning ball bearings, needle roller bearings, thrust ball bearings, cam followers, and more. These bearings are found in cars, wind turbines, machine tools, and medical equipment. Their strong build helps cut down noise and wear. Using the right series from the online catalog keeps your machines working well.
Tip: Always check the bearing series and size before picking a new one. This helps you avoid mistakes and keeps your machines safe.
Online Inch Size Miniature Bearings Cross Reference Charts
You can quickly match inch size miniature bearings with the online charts. These charts show many types, like Standard Open, Standard Shielded, Flanged Open, Flanged Shielded, and Extended Inner Ring. You can compare part numbers from brands like FAG, NMB, DYNAROLL, and EZO. This makes it simple to find the right ball bearing for your project.
The chart has more choices than most other tools. You get fast answers and can ask an expert if you need help. If you need a rare or discontinued miniature bearing, the chart helps you find a good match. You can save time and avoid mistakes in your work.
Online Metric Series Miniature Bearing Cross Reference Charts
You can use the metric series miniature bearing charts to compare parts from many top brands. These include ASAHI, Kaydon, NMB, INA, HIWIN, FAG, NACHI, and TBI MOTION. The charts show many series, like metric miniature bearings, inch size miniature bearings, flanged ball bearings, thin section bearings, slewing ring bearings, self-aligning ball bearings, needle roller bearings, thrust ball bearings, cam followers, and linear guides.
Here is a table that shows some metric series miniature bearing cross references:
| Manufacturer | Bearing Series | Bore Diameter | Outer Diameter |
|---|---|---|---|
| Fitrun | S681 | 1 mm | 3 mm |
| Fitrun | S681X | 1.5 mm | 4 mm |
| Fitrun | S691X | 1.5 mm | 5 mm |
| Fitrun | S682 | 2 mm | 5 mm |
| Fitrun | SMR52 | 2 mm | 5 mm |
| Fitrun | S692 | 2 mm | 6 mm |
| Fitrun | SMR62 | 2 mm | 6 mm |
| Fitrun | SMR72 | 2 mm | 7 mm |
| Fitrun | S602 | 2 mm | 7 mm |
| Fitrun | S682X | 2.5 mm | 6 mm |
You can also look at the chart below to see how Fitrun bearing series compare by bore diameter:
It is easy to match angular contact bearing series and ball bearing series across brands. This helps you keep your machines running and your projects moving forward.
Online Flanged Ball Bearings Cross Reference Charts
You can use the online flanged ball bearings cross reference charts to find the right replacement for your project. Flanged ball bearings have a flange on the outer ring. This flange helps with mounting and keeps the bearing in place. You often see these bearings in small motors, gearboxes, and hobby machines.
The cross reference charts let you compare part numbers from different brands. You can look up the part number you have and see matching options from other manufacturers. This makes it easy to find the correct series for your needs. You do not have to search through many catalogs. The chart gives you quick answers.
Here is a simple table to help you understand how the chart works:
| Your Part Number | Matching Series | Manufacturer |
|---|---|---|
| MF52ZZ | 52 | NMB |
| F625ZZ | 625 | EZO |
| F608ZZ | 608 | NSK |
Tip: Always check the measurements and the series before you order. Even small differences can change how the bearing fits.
You can also ask for help if you are not sure which series matches your part. The experts at Shandong TFL Bearing Co., Ltd can guide you.
Online Thin Section Bearings Cross Reference Charts
Thin section bearings have a small cross-section compared to their diameter. You use these bearings when you need to save space and reduce weight. They work well in robots, medical devices, and aerospace equipment.
The online cross reference charts for thin section bearings help you find the right series fast. You can enter your part number and see a list of matching series from top brands. This saves you time and helps you avoid mistakes.
You will see many series in the chart, such as KA, KB, KC, and KD. Each series has its own size and load rating. You can compare these series to find the best fit for your machine.
- KA series: Smallest cross-section, light loads
- KB series: Medium cross-section, moderate loads
- KC series: Larger cross-section, higher loads
- KD series: Special sizes for unique needs
Note: Always match the series and size to your application. This ensures the bearing will work well and last longer.
If you need help, you can contact the support team. They can help you choose the right series for your project.
Online Slewing Ring Bearings Cross Reference Charts
Slewing ring bearings support heavy loads and allow rotation in large machines. You find these bearings in cranes, wind turbines, and construction equipment. The cross reference charts make it easy to find the right series for your needs.
You can search by part number or by the size you need. The chart shows matching series from different brands. This helps you find a replacement quickly, even if your original bearing is hard to find.
Here is what you can do with the slewing ring bearings cross reference chart:
- Look up your current part number
- Compare series from global manufacturers
- Check load ratings and dimensions
- Find options for special or custom series
Callout: Always double-check the series and measurements before you order. This helps you avoid downtime and keeps your equipment running smoothly.
You can also reach out to Shandong TFL Bearing Co., Ltd for expert advice. They can help you pick the right series and answer any technical questions.
Online Cam Followers Cross Reference Charts
You can use the online cam followers cross reference charts to find the right cam follower for your machine. Cam followers are used in many machines. They help parts roll or move along a track. The charts let you match your old part number to a new one from another brand.
You will see cam followers in many places, like:
- Lift truck masts and carriages, such as mast guide rollers and carriage rollers
- Travelling cranes
- Conveyor lines
- Chain sheaves and sprocket idlers in hoisting systems
- Track rollers and tensioners in power transmission chain drives
- Airframe track rollers in aircraft flap, slat, and control systems
- Cam mechanisms of automatic and dedicated machines
- Transfer equipment and conveyors
- Bookbinding machines and tool changers of machining centers
- Pallet changers and automatic coating machines
- Sliding forks in automated warehouses
The cross reference charts show the series, sizes, and special features for each cam follower. You can look at choices from different brands. This helps you find a replacement fast. If you need help, you can ask an expert for advice on picking the right series for your job.
Tip: Always check the size and load rating before you order a new cam follower. This makes sure it will fit and work well in your machine.
Online Needle Roller Bearings Reference Charts
You can use the online needle roller bearings reference charts to match your bearing with options from other brands. These charts make it easy to find the right series and size. You do not have to look through long catalogs. The online charts give you quick and correct results.
Old catalogs, like those from Schaeffler, have lots of details about needle roller bearings. They show product types, load ratings, and design features. You get tables with sizes and descriptions for each series. This helps you choose the right one. But online charts are faster and easier to use. You can match bearing sizes, codes, and features in seconds. The charts also explain bearing codes, load ratings, and speed limits. You can compare brands and find answers for hard-to-find or old bearings. The online charts are updated often and are easier to use than printed catalogs.
You can always contact Shandong TFL Bearing Co., Ltd for expert help. Their team can help you pick the right series for your needs.
Online Self Aligning Ball Bearings Cross Reference Charts
You can use the online self aligning ball bearings cross reference charts to find the best match for your equipment. These bearings help lower friction and fix misalignment. You often see them in machines that need smooth and steady movement.
The charts let you compare series and sizes from many brands. You can enter your part number and see matching choices. This makes it easy to find a replacement, even if your old bearing is not made anymore. The charts also show special features, like seals or shields, for each series.
If you work with angular contact bearing types, you can use the charts to compare series and find the right fit. The cross reference tool helps you keep your machines running well. You can always ask for help if you have questions about which series to pick.
Note: Always check the measurements and features before you order. This helps you avoid problems and keeps your equipment working well.
Online Thrust Ball Bearings Cross Reference Charts
You can use the online thrust ball bearings cross reference charts to find the right replacement for your equipment. Thrust ball bearings help hold up force in one direction. You often see them in cars, factories, and boats. These bearings let parts spin easily while handling push or pull from one side.
To use the cross reference charts, start by typing your part number. The tool will show you matching choices from many brands. You can look at sizes, load ratings, and special features. This helps you find a bearing that fits your needs.
Shandong TFL Bearing Co., Ltd has many types of thrust ball bearings. You can find single direction and double direction thrust ball bearings. Single direction bearings handle force from one side. Double direction bearings can take force from both sides. The charts also show special thrust bearings for fast or heavy jobs.
Here is a simple table to help you see the types:
| Bearing Type | Load Direction | Common Use Cases |
|---|---|---|
| Single Direction | One way | Gearboxes, pumps |
| Double Direction | Both ways | Machine tools, spindles |
| Specialty Thrust | Varies | High-speed, heavy loads |
You can use the chart to match part numbers from brands like SKF, FAG, NSK, NTN, and more. This saves you time and helps you avoid mistakes. You do not need to look through lots of catalogs. The online chart gives you quick answers.
Tip: Always check the size and load rating before you order. Even small changes can affect how the bearing works in your machine.
If you have a rare or old thrust ball bearing, the cross reference chart helps you find a good replacement. You can also ask the experts at Shandong TFL Bearing Co., Ltd for help. They can answer questions about fit, compatibility, and special features.
You can trust the online charts to be current. Shandong TFL Bearing Co., Ltd works with many global brands. This means you get the latest information and many choices.
- Use the cross reference chart to:
- Find matching part numbers
- Compare sizes and features
- Check load ratings and speed limits
- Get expert advice if you need it
You keep your machines working well when you pick the right thrust ball bearing. The online cross reference charts make it easy and correct.
Technical Details
Dimensions and Load
When you select a bearing, you need to know its size and how much weight it can handle. The bearing cross reference tool helps you find bearings with the right dimensions and load ratings. For example, the tool covers the 6200 and 6300 series. These series include inner diameters from 10 mm up to 150 mm. Outer diameters range from 30 mm to 270 mm. Widths go from 9 mm to 45 mm. You can also check the dynamic load ratings, which span from about 1147 to 39566. This wide range means you can find a bearing for many different machines and jobs.
Tip: Always measure your old bearing before you search for a replacement. This helps you match the size and load rating exactly.
If you work with heavy equipment or small devices, you will find the right bearing size in the tool. You can compare different brands and series to see which one fits your needs best.
Precision and Preload
Precision tells you how closely the bearing matches its design. High-precision bearings work better in machines that need smooth and accurate movement. You might see precision grades like P0, P6, or P5. A lower number means higher precision. Preload is the force that keeps the bearing parts tight together. This helps reduce noise and vibration. Some machines need a certain preload to work well. You can find this information in the bearing’s technical details.
If you need a bearing for a high-speed motor or a machine tool, check the precision and preload ratings. These details help you pick a bearing that will last longer and work better.
Bearing Nomenclature
You can read bearing numbers by breaking them into parts. Each part of the number tells you something important.
- Bearing Type (Prefix): Letters show the style, such as N, NU, or NJ.
- Bearing Series: Numbers tell you the size group and load rating, like X2 for a light series.
- Bearing Bore Size: Two digits show the bore diameter. Multiply by 5 to get the size in millimeters. For example, 08 means a 40 mm bore.
- Additional Designations (Suffixes): Letters or numbers show features like clearance (C3), seals (2RS), or cage type (TVP).
You may also see special codes from brands like SKF. These codes use prefixes and suffixes such as W6, W10, 2RS, or 2Z. They tell you about torque tests, lubrication, seal types, and other features. The cross reference tool uses these codes to help you find the exact bearing you need.
Here is an example table:
| Example Number | What It Means |
|---|---|
| 6205 | Standard deep groove bearing |
| 6308-2RS | Sealed on both sides |
| 7206 B | Angular contact bearing |
Note: Knowing how to read bearing numbers helps you choose the right part quickly and avoid mistakes.
Compatibility Notes
When you use a cross reference tool, you need to think about more than just the size or shape of the bearing. Compatibility is very important for how well your new bearing will work. Two bearings might look the same, but small changes can make a big difference in how they work and how safe they are.
Some common problems with compatibility are:
- Chemical reactions: Some oils or greases can hurt plastic parts inside a bearing. This happens when the oil or grease gets into the plastic and makes it weak. Ester oils can do more harm than other oils.
- Internal stress in plastics: Plastic parts can have stress left over from when they were made. This stress can make the plastic react more with some oils or greases.
- Different plastic types: Not all plastics are the same. Crystalline plastics and non-crystalline plastics act differently with oils and greases. Some plastics let oil in faster, which can make them wear out sooner.
- Slight design variations: Even if two bearings have the same number, they might have small differences in how they are made or what they are made of. These small changes can affect how the bearing fits or works in your machine.
Tip: Always check what materials and lubricants are best for your new bearing. This helps you stop problems like chemical damage or early wear.
The bearing cross reference tool from Shandong TFL Bearing Co., Ltd helps you with these problems. The tool does more than just match numbers. It also:
- Suggests special greases that protect plastic parts from chemical damage.
- Tells you which lubricants are best for your bearing.
- Warns you about any known compatibility problems, so you can fix them.
- Checks if plastics and greases work well together by running tests.
You can use the tool to find bearings that match, but you should always look at the details. If you see a warning about compatibility, pay attention. Sometimes you might need to use a different lubricant or pick a bearing with another kind of plastic part.
Here is a simple checklist to help you:
| Step | What to Check |
|---|---|
| Bearing Material | Is it metal, plastic, or both? |
| Lubricant Type | Can the oil or grease hurt plastic parts? |
| Plastic Stress | Do you see any stress or damage? |
| Design Differences | Do the features match your old bearing? |
If you are not sure, you can ask the experts at Shandong TFL Bearing Co., Ltd. They can help you choose the right bearing and avoid problems with compatibility. Doing these things helps your machines work well and stay safe.
Additional Resources
Calculators and Guides
When you use the bearing cross reference tool, you get many helpful tools. These tools make your job easier and help you pick the right bearing. You can find engineering support that answers questions and explains important things. Many people like to check bearing tolerance standards before they choose. These standards help you know if a bearing will work for you.
There are different calculators to help you solve problems fast. A frequency calculator shows how often a bearing spins. A shaft and housing tolerance calculator checks if your parts fit together. You can use a thermal range calculator to see if a bearing can handle hot or cold. If you need to set torque, a precision nut torque calculator gives you the answer.
You can use product selection guides to help you pick the best bearing. These guides talk about angular contact bearing choices, radial bearing choices, and spindle bearing picks. You can also read help for installing and lubricating bearings the right way.
Many people like to look at a catalog before buying. The catalog has precision ball bearings, sprag clutches, labyrinth seals, and bearing tables. You can also find technical charts and tables with more details about each product. There are articles that explain how to use different bearings and what to check for each type.
Here is a list of calculators and guides you can use:
- Engineering support resources
- Bearing tolerance standards
- Informative articles
- Product catalog with precision ball bearings, sprag clutches, labyrinth seals, and bearing tables
- Product selection guides for different bearing types
- Installation and lubrication help
- Frequency calculator
- Shaft & housing tolerance calculator
- Thermal range calculator
- Precision nut torque calculator
- Guides for angular contact bearings, labyrinth seals, and other precision parts
- Technical charts and tables
These tools help you pick, cross-reference, and install bearings the right way. You can fix problems faster and make better choices for your machines.
Contact Options
When you need help with bearing cross referencing, you have several ways to reach out. Shandong TFL Bearing Co., Ltd makes it easy for you to get answers and support. You can choose the contact method that works best for you. Each option connects you with a real person who understands bearings and can guide you.
Phone Support
You can call the toll-free number if you are in the United States. This line connects you to a support team that can answer questions about bearing cross referencing, product selection, or technical details. If you are outside the toll-free area, you can use the local phone number. Phone support gives you quick answers and lets you explain your needs directly.
Email Support
You can send an email if you prefer to write down your questions. Email support works well if you want to share part numbers, photos, or technical drawings. The team will reply with detailed answers and suggestions. Email is a good choice if you need to keep a record of your conversation.
Mailing Address
You can also send mail to the company’s address. This option works if you need to send documents, samples, or official requests. The mailing address is:
Room 501, Building 2, Lushang Phoenix Plaza, Tangye Middle Road, Licheng District, Jinan City, Shandong Province
Why Contact Support?
- You get expert advice on cross referencing bearings.
- You can solve compatibility or technical problems.
- You receive help with hard-to-find or discontinued parts.
- You can ask about compliance, policies, or special orders.
Tip: Always have your bearing part number and measurements ready when you contact support. This helps the team give you the best answer fast.
You do not have to solve bearing problems alone. The support team at Shandong TFL Bearing Co., Ltd is ready to help you every step of the way. Choose the contact method that fits your needs and get the answers you need for your project.
A bearing cross reference tool lets you find the right part fast. This helps your machines keep working without stopping. Shandong TFL Bearing Co., Ltd is known for great customer service and strong technical skills. You get these benefits:
- More than 10 years working in the industry and ISO9001-2015 certified
- Careful quality checks before shipping and different ways to deliver
- Expert help just for you and custom bearing solutions
You can count on their team for all your bearing needs now and later. Contact them if you want advice or more details.
FAQ
How do I use the bearing cross reference tool?
You start by choosing the manufacturer and entering your bearing part number. The tool shows you matching options from other brands. You can compare sizes and features before you pick the right bearing.
Can I find a replacement for an obsolete or discontinued bearing?
Yes, you can. The cross reference tool helps you find current alternatives for hard-to-find, obsolete, or discontinued bearings. You just enter your old part number to see available matches.
What information do I need to get accurate results?
You need the full part number if possible. You should also measure the inner diameter, outer diameter, and width. If you have special features or suffixes, include those for the best match.
Who can I contact if I have technical questions?
You can contact Shandong TFL Bearing Co., Ltd by phone or email. Their experts help you with technical questions, compatibility, or special requirements. You get fast and friendly support.
Does the tool cover all bearing types?
The tool covers many types, such as ball bearings, roller bearings, needle bearings, and more. You can check the online charts for specific series and brands.
How do I know if the new bearing will fit my machine?
You should compare the size, load rating, and special features. Always check the measurements and codes. If you are unsure, ask an expert for help.
Is there a cost to use the cross reference service?
You can use the online cross reference tool for free. If you need extra support or custom solutions, contact the team for more details.
What if I only know part of the bearing number?
You can still use the tool. Enter what you know and add measurements. The experts can help you find the right match using your details.
