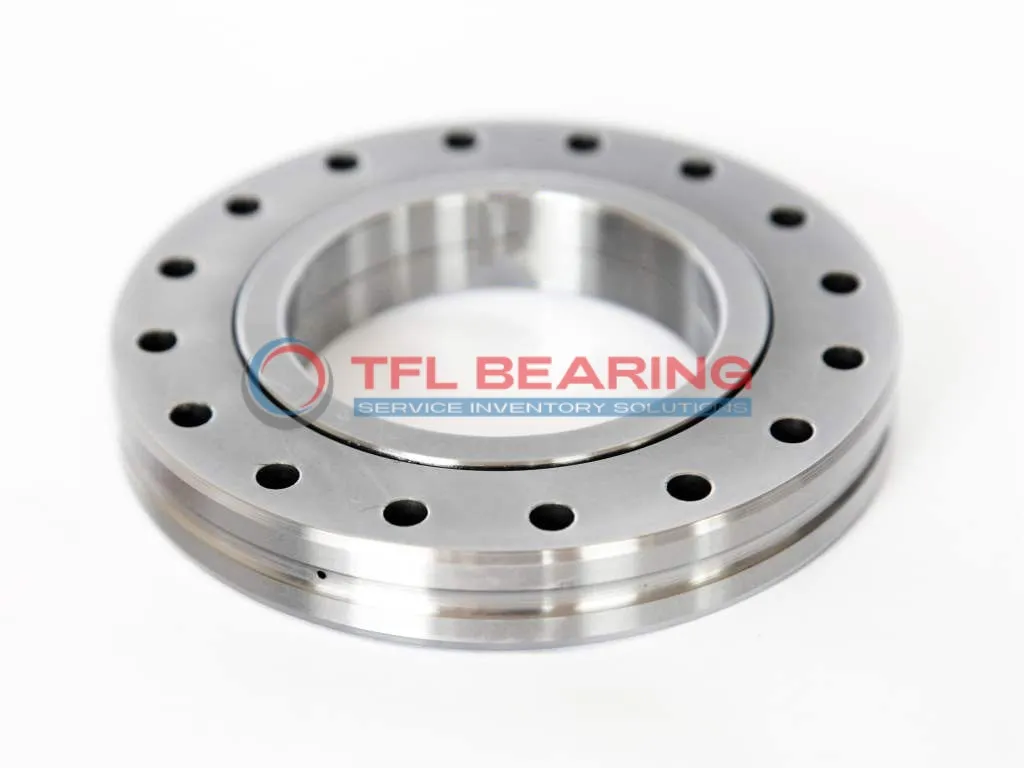

The XV30 crossed roller bearing is a compact unit measuring 30mm by 75mm by 14mm, designed for precise radial and axial loads. It handles dynamic loads up to 2700 lbf and static loads up to 5850 lbf, making it suitable for demanding applications.
With an ABEC5 rating (available in higher precision ABEC7/9), it offers smooth operation at speeds up to 1819 RPM. The crossed roller design ensures stability and accuracy, with running tolerances of 1mm radial and 10mm axial.
Its 12 mounting holes provide secure fitting, while the lightweight 0.337kg design maintains durability. The bearing works well in applications requiring high precision, such as robotics or medical equipment.
Compliant with RoHS and REACH standards, it’s a reliable choice for engineers needing both performance and safety. The interchangeable design makes it easy to replace in existing systems.
"*" indicates required fields
Performance Features of XV30 Bearing
XV30 Bearing is designed with a crossed roller configuration, offering high precision and stability for radial and axial loads.
Its basic load ratings of 8 kN (dynamic) and 12.7 kN (static) ensure reliable performance in demanding applications.
The ABEC5 rating (with options for ABEC7/9) highlights XV30 Bearing’s suitability for precision tasks.
With a limiting speed of 1819 1/min (with clearance), it balances speed and durability effectively.
XV30 Bearing’s compact design (30 mm x 75 mm x 14 mm) makes it ideal for space-constrained installations.
The pre-drilled holes simplify mounting, saving time during assembly.
Constructed from durable materials, XV30 Bearing resists wear and maintains accuracy over time.
Its running accuracy (radial: 1 mm, axial: 10 mm) ensures smooth operation in precision machinery.
XV30 Bearing operates efficiently within a wide temperature range, suitable for various industrial environments.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.
Industrial Uses of XV30 Bearing
XV30 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision. The metric sizing ensures compatibility with various European and Asian equipment.
In robotics, XV30 Bearing supports articulated arms, offering smooth rotation and high load capacity. Its ABEC5 rating makes it suitable for applications requiring moderate precision.
For medical imaging devices, XV30 Bearing’s low friction and high accuracy are ideal. The preload option allows for fine-tuning performance in sensitive equipment.
Automotive vs Aerospace: Applications of XV30 Bearing
In automotive steering systems, XV30 Bearing handles radial and axial loads with ease. Its compact design fits well in space-constrained areas.
Aerospace applications benefit from XV30 Bearing’s lightweight construction and reliability. The holes in the rings simplify mounting in complex assemblies.
Where Is XV30 Bearing Used?
You’ll find XV30 Bearing in 3D printers, where its precision ensures accurate layer alignment. The high limiting speed with clearance allows for fast printing without compromising quality.
In packaging machinery, XV30 Bearing’s durability keeps production lines running smoothly. The stainless steel construction resists wear in high-cycle environments.
Built for Heavy-Duty Use: XV30 Bearing
XV30 Bearing excels in conveyor systems, handling both radial and moment loads effortlessly. The 12-hole mounting pattern provides secure attachment points.
For industrial automation, XV30 Bearing’s low maintenance needs reduce downtime. Its temperature range suits most factory environments.
