Product Parameters

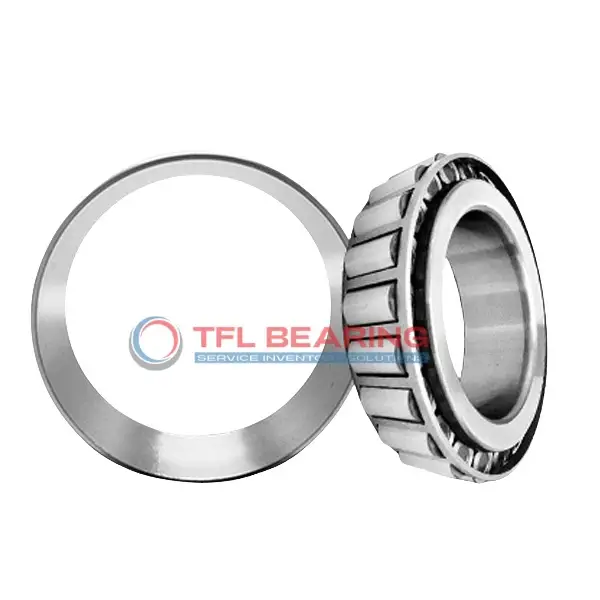

Part Number X32221-Y32221
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 105 mm x 190 mm x 53 mm
Cone Part Number X32221
Cup Part Number Y32221
Bore Dia 105 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 190 mm
Outer Dia Tolerance -0.03mm to 0
Cone Width 50 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 43 mm
Cup Width Tolerance -0.25mm to 0
Width 53 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 120 mm
Cone Backface Backing Diameter 127 mm
Cup Frontface Backing Diameter 181.10 mm
Cup Backface Backing Diameter 170.94 mm
Cage Cone Frontface Clearance 3.6 mm
Cage Cone Backface Clearance 4.3 mm
Effective Center Location -7.9 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32221
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 89550 lbf
Static Radial Load 116100 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 23175 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 16717.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 13.23 lb
