Product Parameters

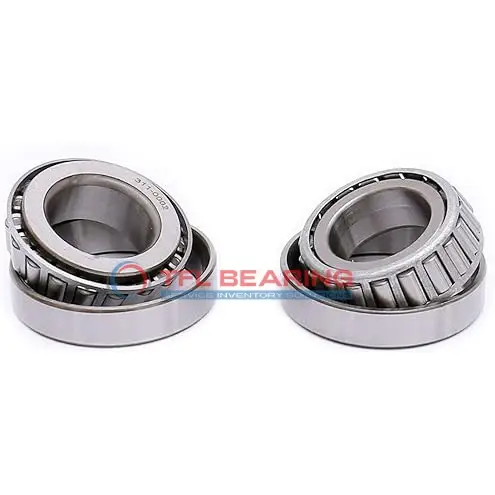

Part Number X32219-Y32219
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 95 mm x 170 mm x 45.5 mm
Cone Part Number X32219
Cup Part Number Y32219
Bore Dia 95 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 43 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 37 mm
Cup Width Tolerance -0.2mm to 0
Width 45.5 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 106 mm
Cone Backface Backing Diameter 111 mm
Cup Frontface Backing Diameter 161.54 mm
Cup Backface Backing Diameter 151.89 mm
Cage Cone Frontface Clearance 3.8 mm
Cage Cone Backface Clearance 4.1 mm
Effective Center Location -6.3 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32219
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 71100 lbf
Static Radial Load 90225 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 18450 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 13275 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 9.04 lb
