Product Parameters

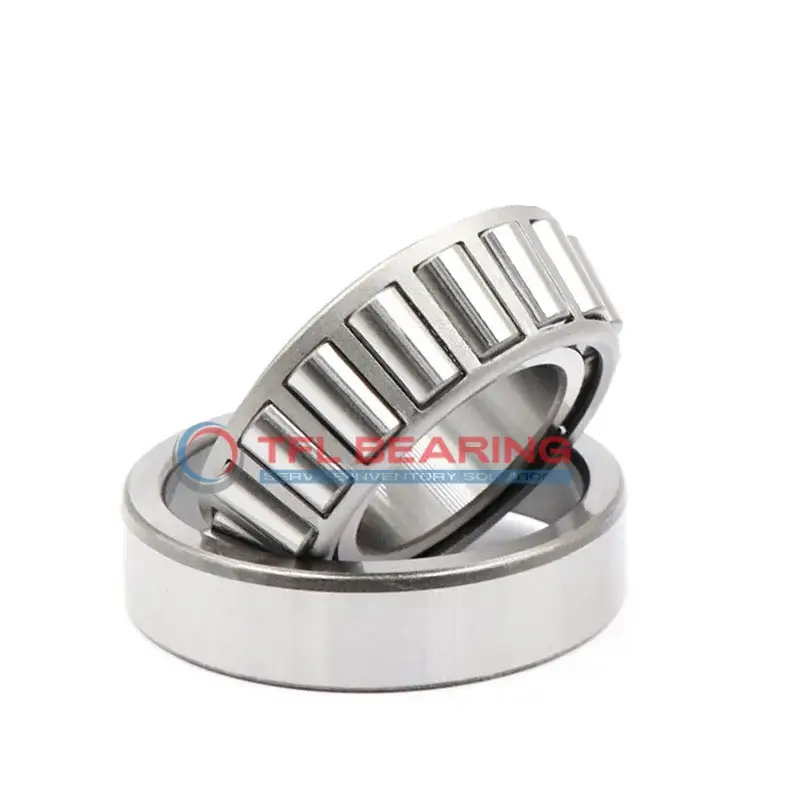

Part Number X32024X-Y32024X
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 120 mm x 180 mm x 38 mm
Cone Part Number X32024X
Cup Part Number Y32024X
Bore Dia 120 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 180 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 38 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 29 mm
Cup Width Tolerance -0.2mm to 0
Width 38 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 2.54 mm
Cup Backface ToClear Radius 2.03 mm
Cone Frontface Backing Diameter 130 mm
Cone Backface Backing Diameter 134 mm
Cup Frontface Backing Diameter 174.00 mm
Cup Backface Backing Diameter 165.10 mm
Cage Cone Frontface Clearance 3.6 mm
Cage Cone Backface Clearance 3 mm
Effective Center Location 1.5 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32024X
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 65700 lbf
Static Radial Load 104850 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 17055 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 13387.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 7.28 lb
